Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

24 part groups · 3 illustrations

Illustrations

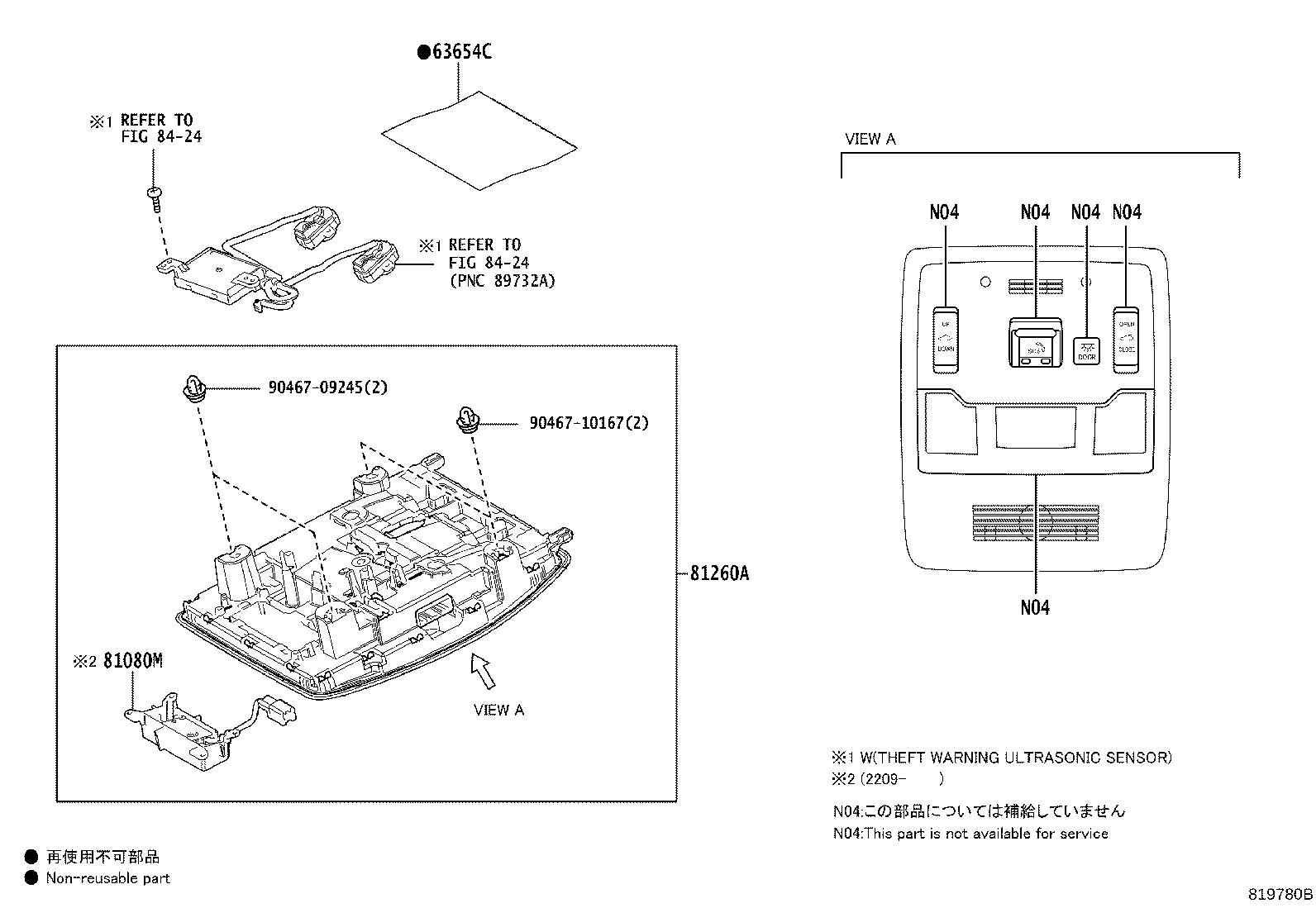

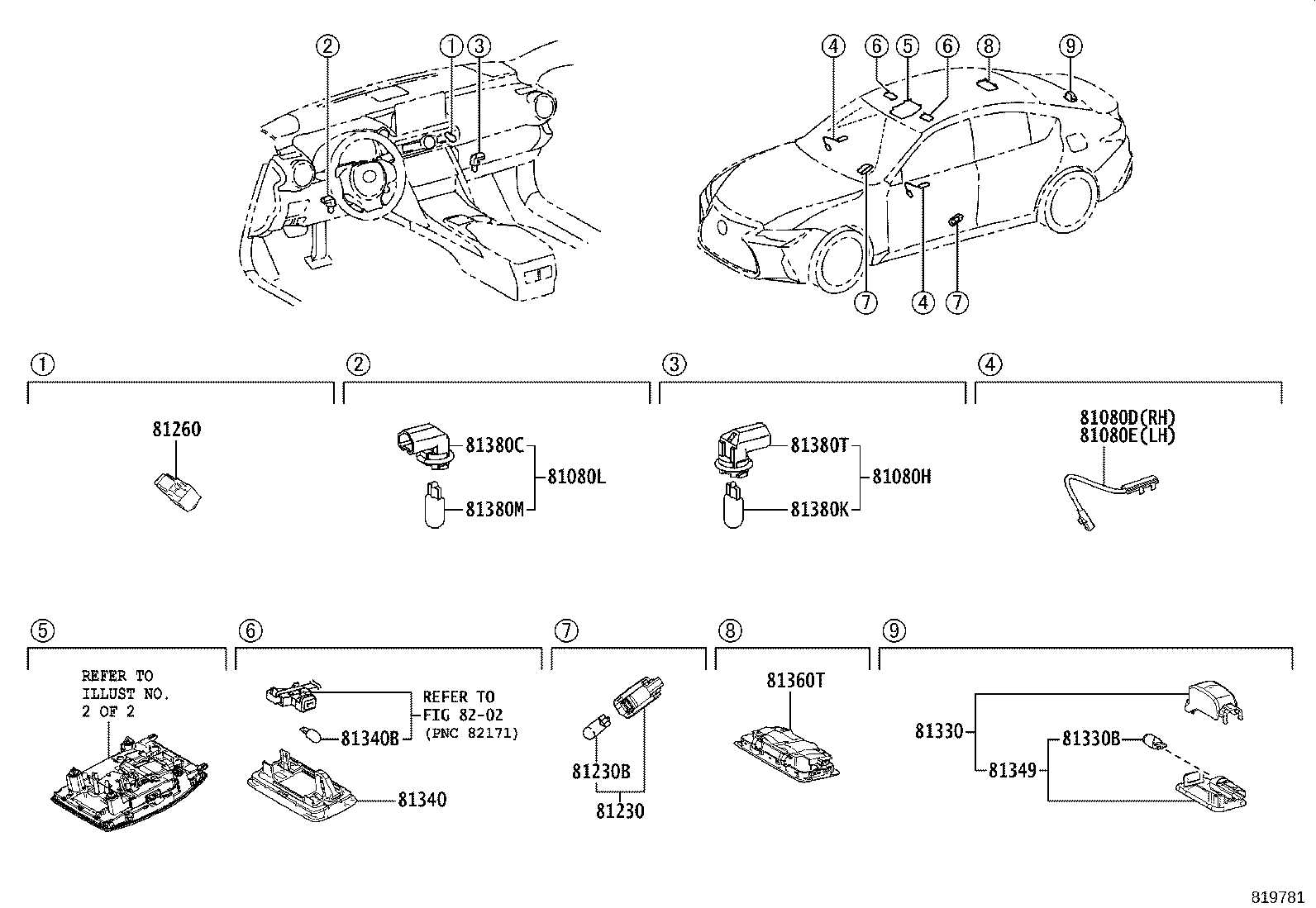

Figure 816595B 816595B 2013-04 → 2020-09 Figure 819781 819781 2020-09 → — Figure 819780B 819780B 2020-09 → —

Part groups

PNCDescription
63654C Cover, Roof Console Box, Inner
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81349 Body, Luggage Compartment Lamp
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81363 Lens, Room Lamp, Outer
81380C Socket, Plug, NO.1
81380K Bulb, Instrumet Panel Under Lamp, NO.2
81380M Bulb, Instrumet Panel Under Lamp, NO.1
81380T Socket, Plug, NO.2
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
