Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

20 part groups · 7 illustrations

Illustrations

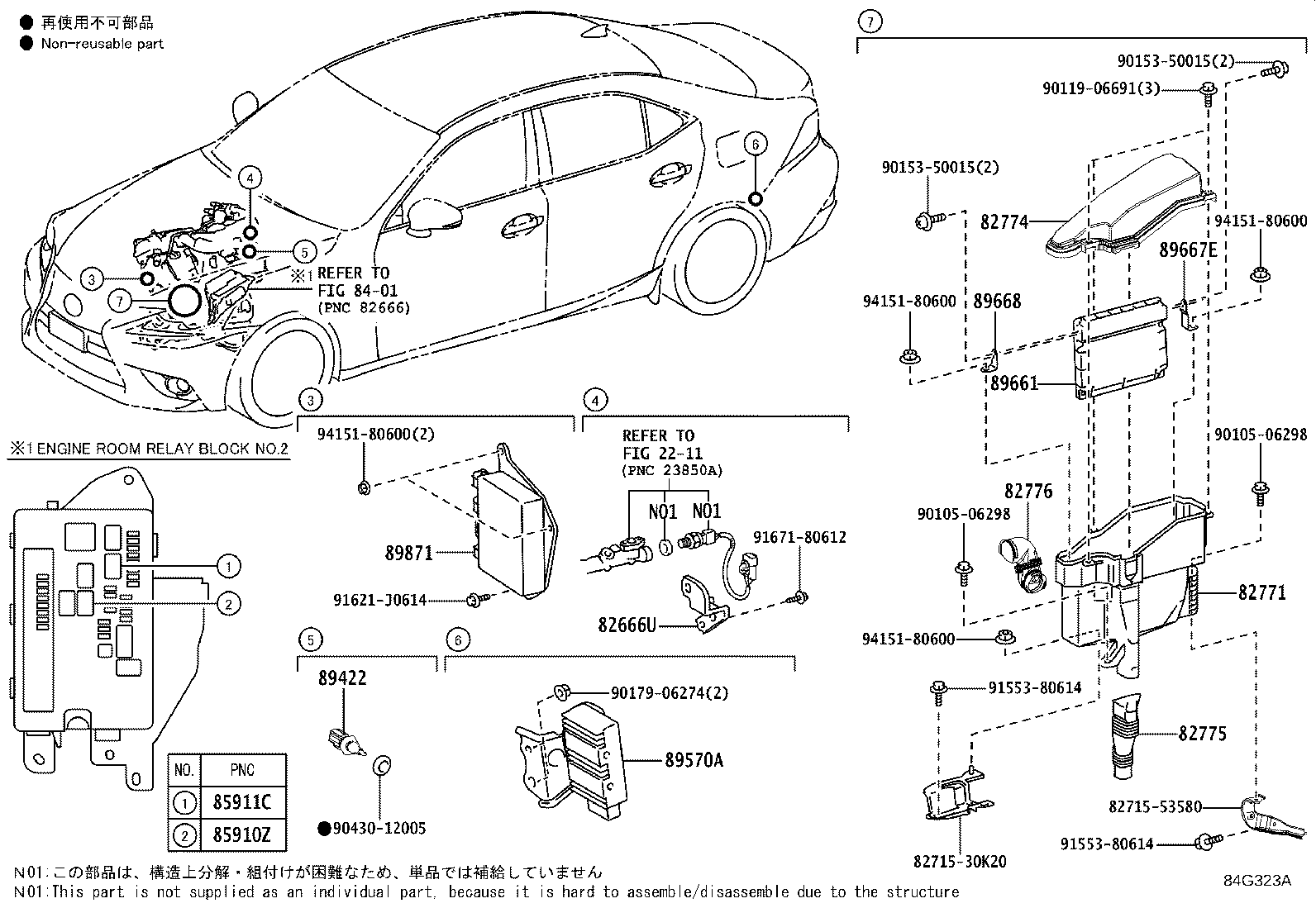

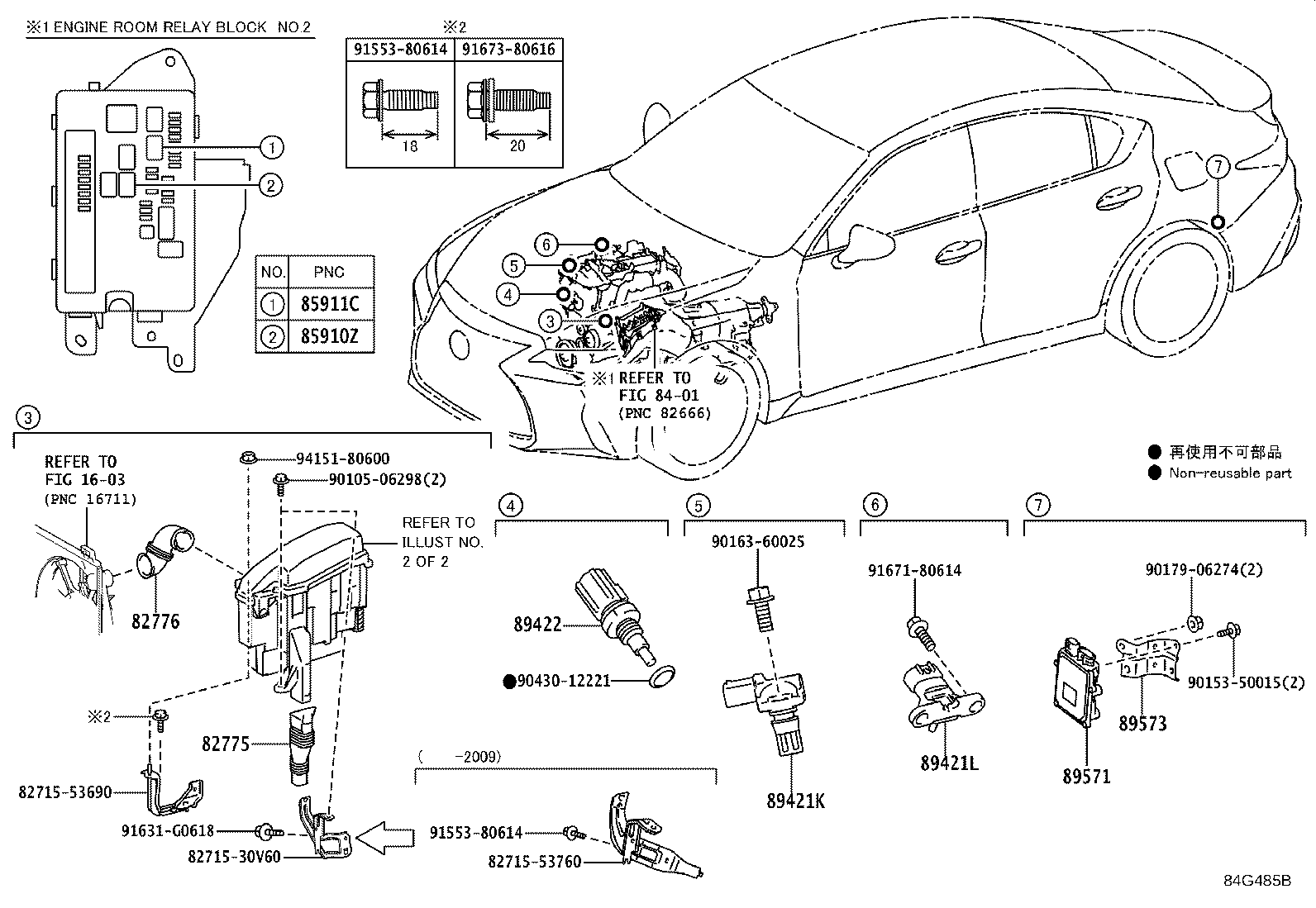

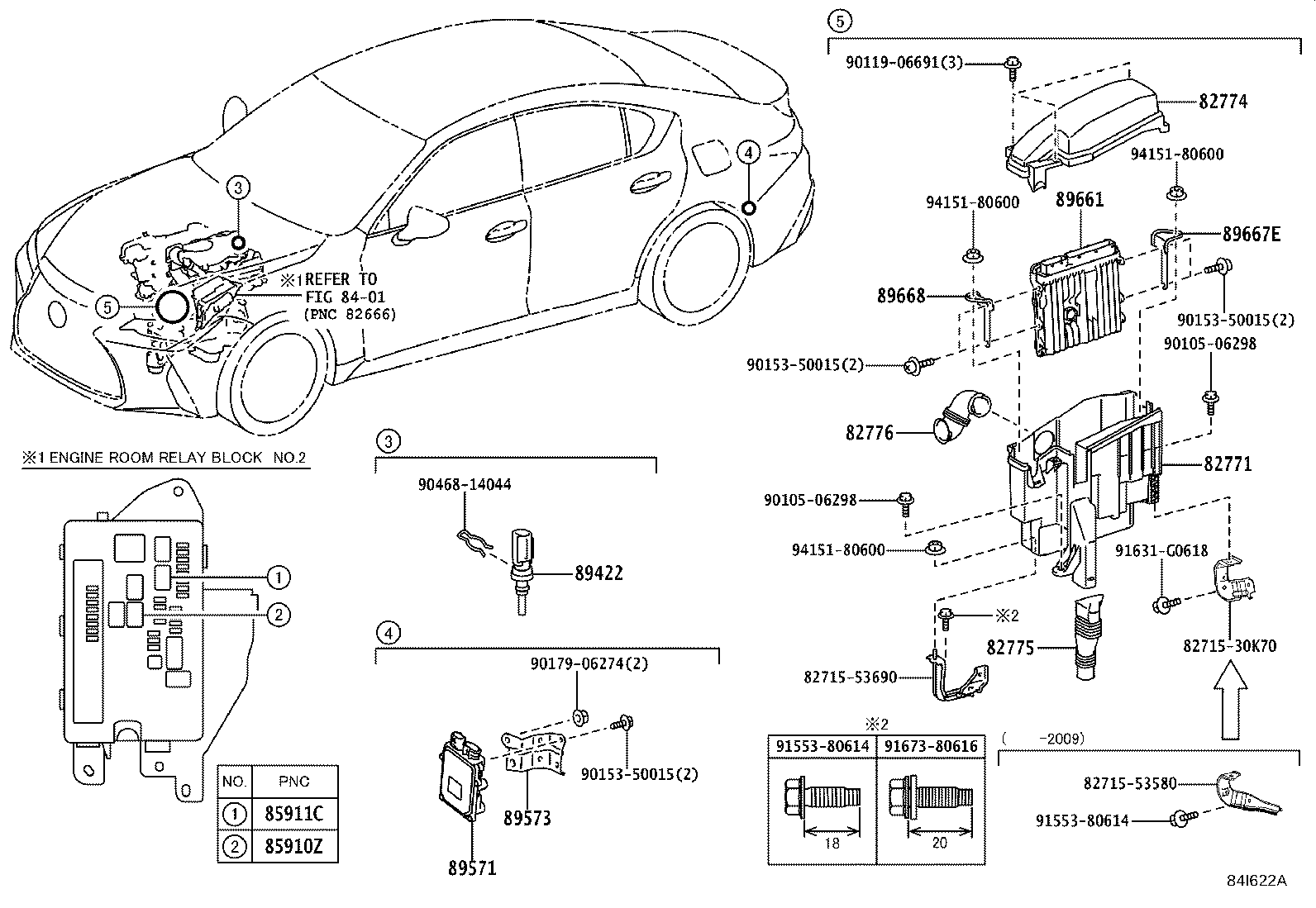

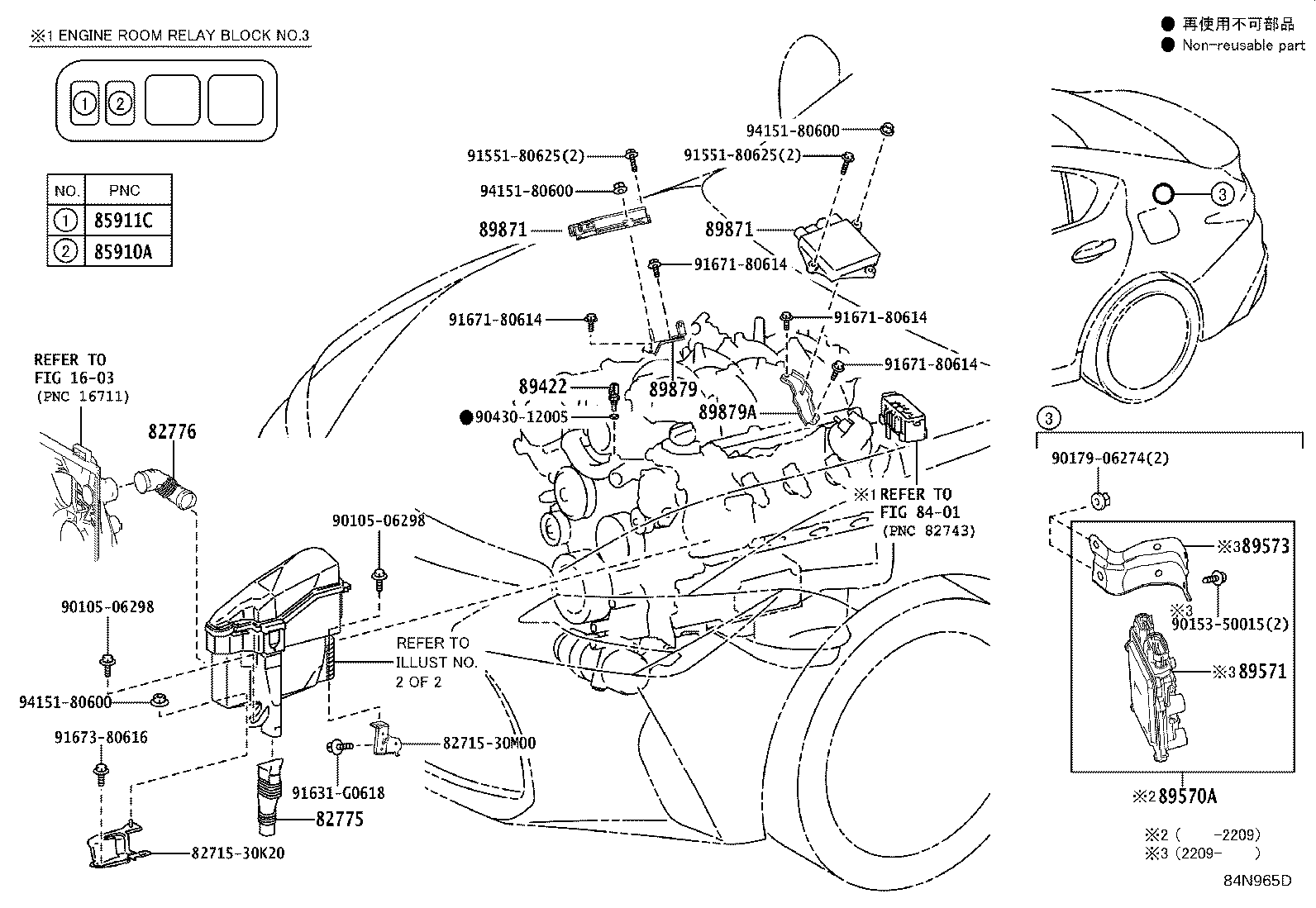

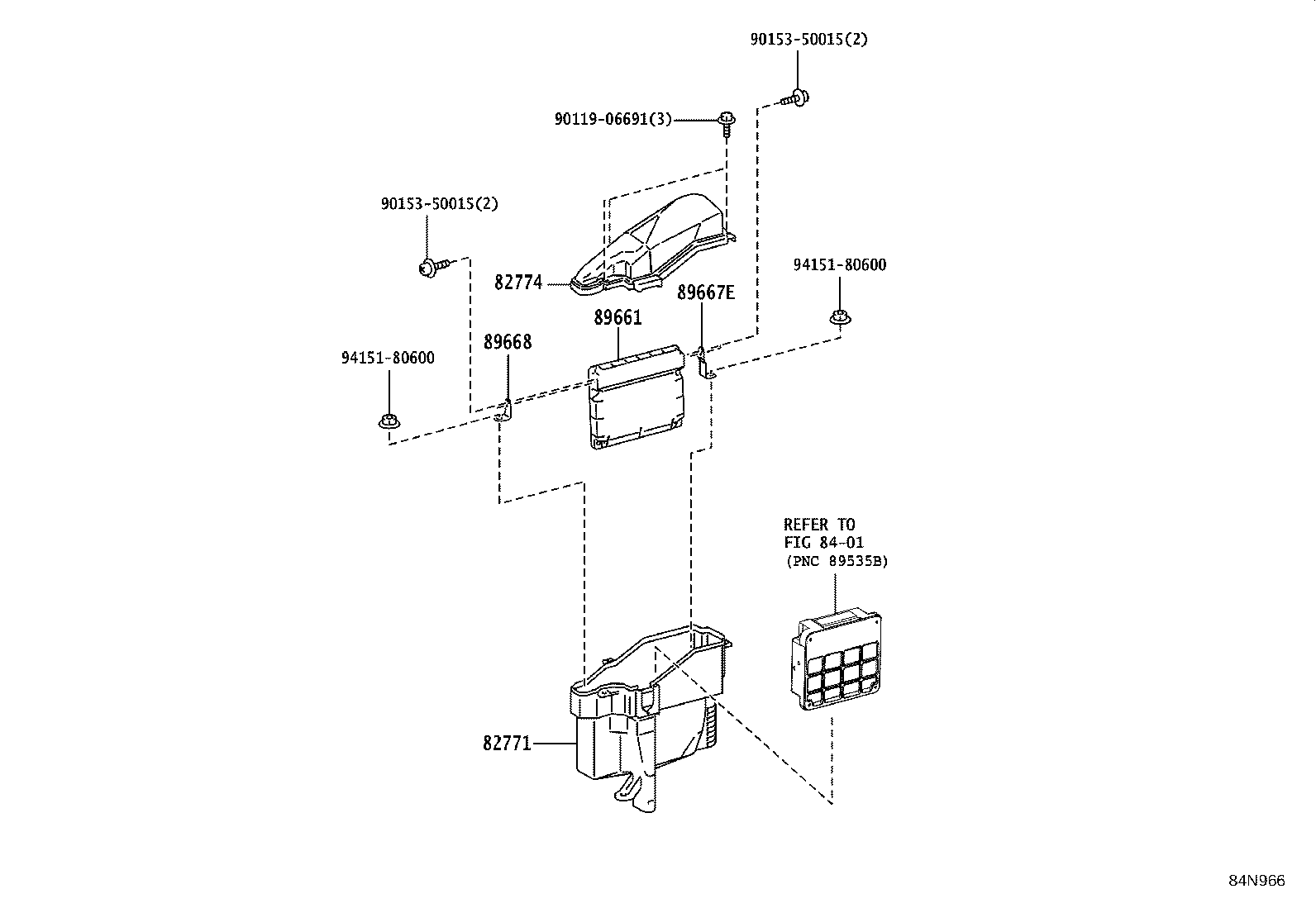

Figure 84E315D 84E315D 2013-04 → 2015-08 Figure 84G323A 84G323A 2015-08 → 2017-10 Figure 84I622A 84I622A 2017-10 → — Figure 84G485B 84G485B 2015-08 → — Figure 84G342 84G342 2015-08 → — Figure 84N965D 84N965D 2021-11 → — Figure 84N966 84N966 2021-11 → —

Part groups

PNCDescription
82666U Holder, Connector
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
