Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 4 illustrations

Illustrations

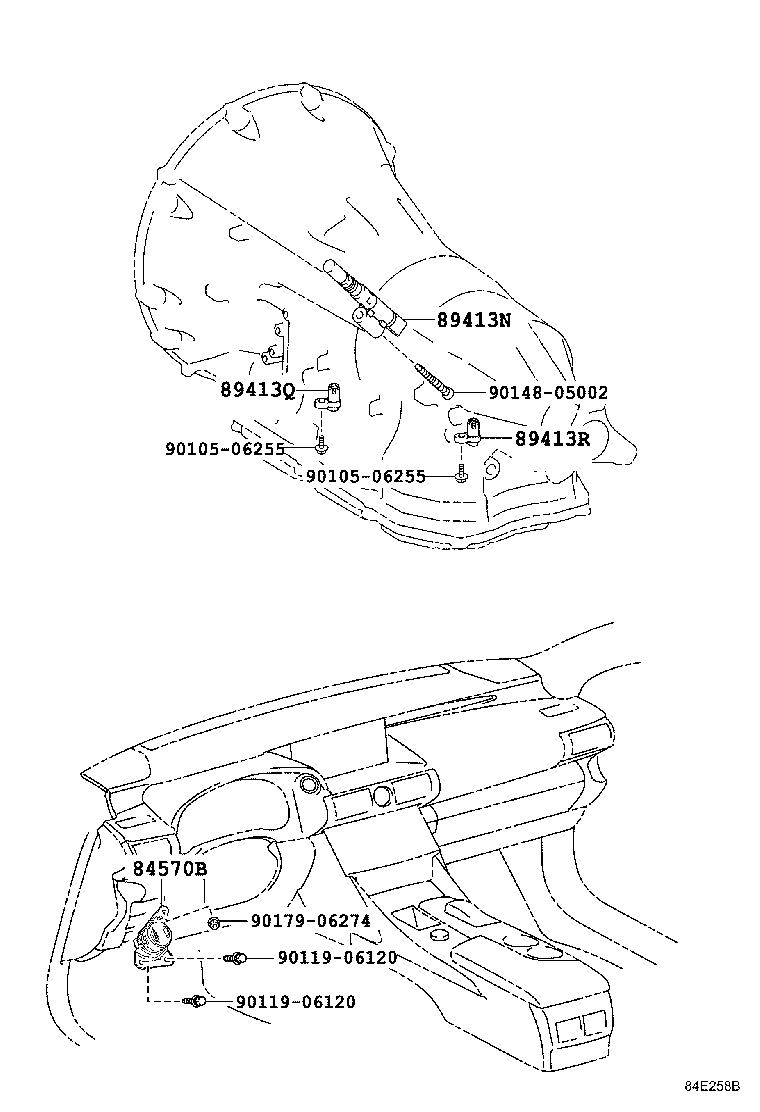

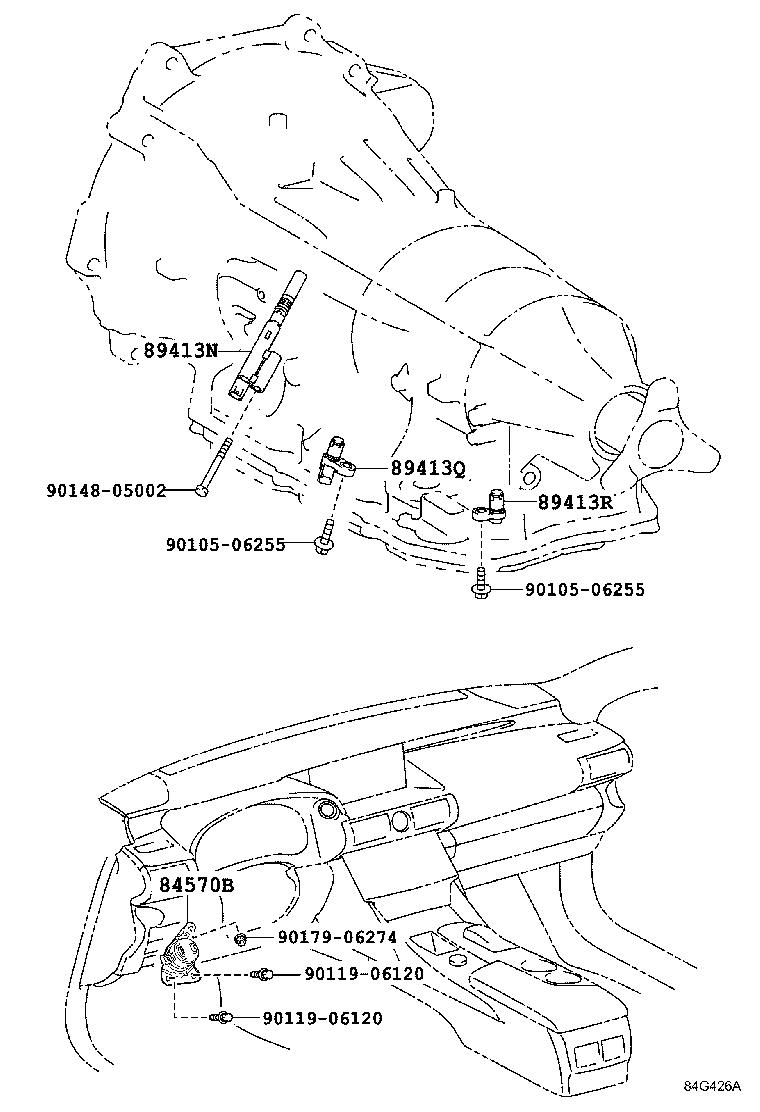

Figure 84E253B 84E253B 2013-04 → 2015-08 Figure 84E258B 84E258B 2013-04 → — Figure 84E254B 84E254B 2013-04 → — Figure 84G426A 84G426A 2015-08 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413Q Sensor, Transmission Revolution (NC3)
89413R Sensor, Transmission Revolution (SP2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
