Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 4 illustrations

Illustrations

Figure 84E338E

84E338E 2013-04 → 2020-09

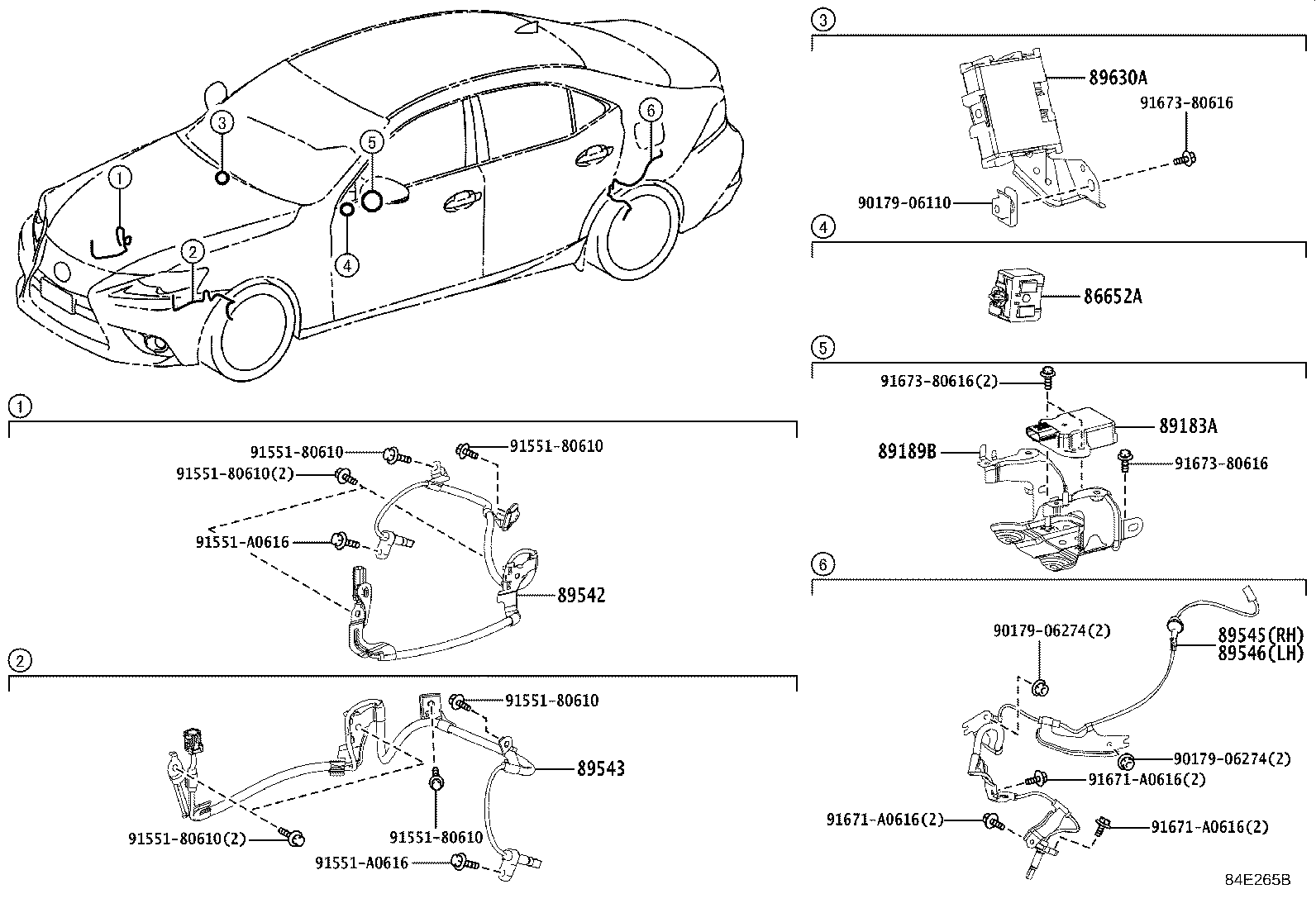

Figure 84E265B

84E265B 2013-04 → 2020-09

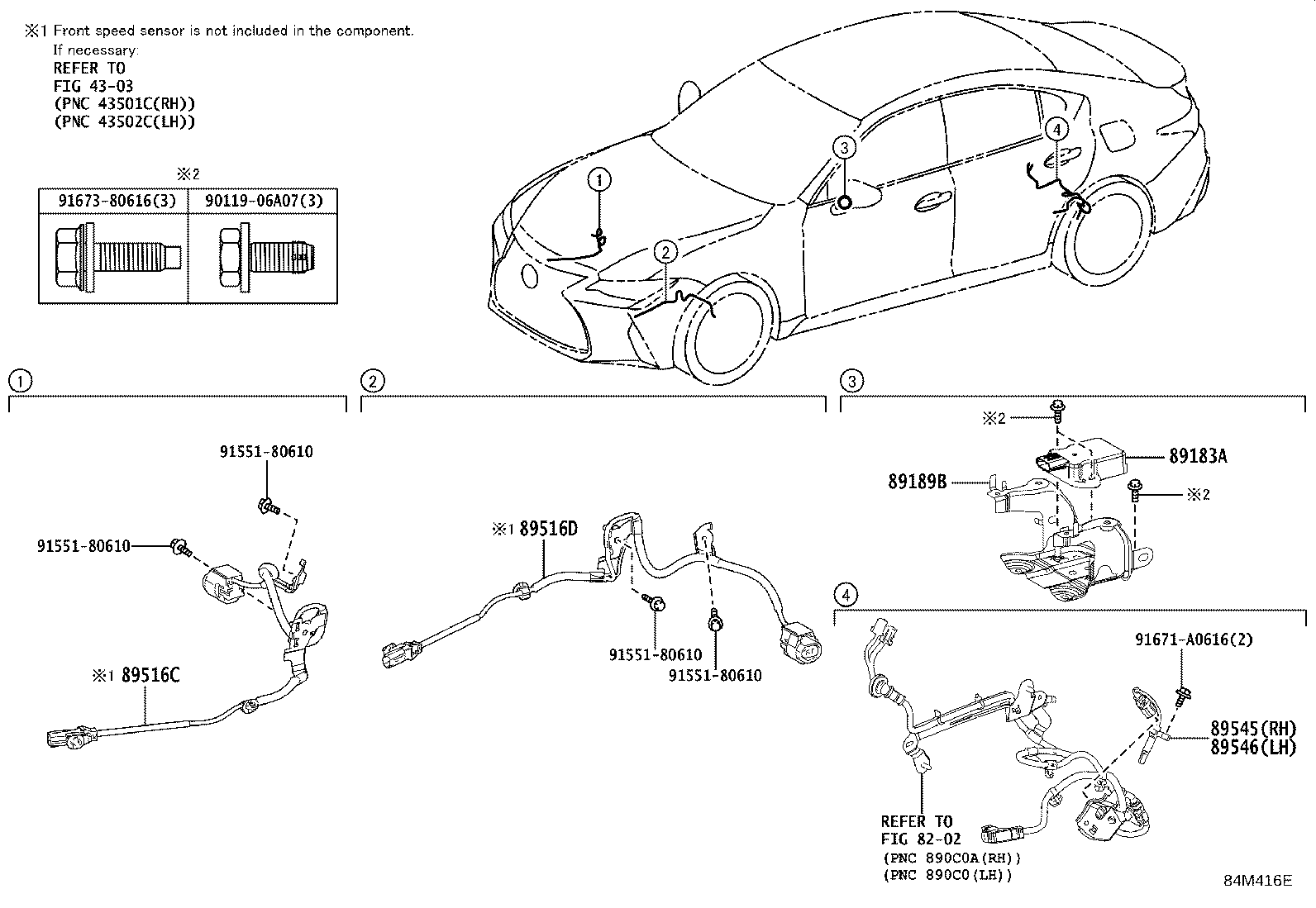

Figure 84M416E

84M416E 2020-09 → —

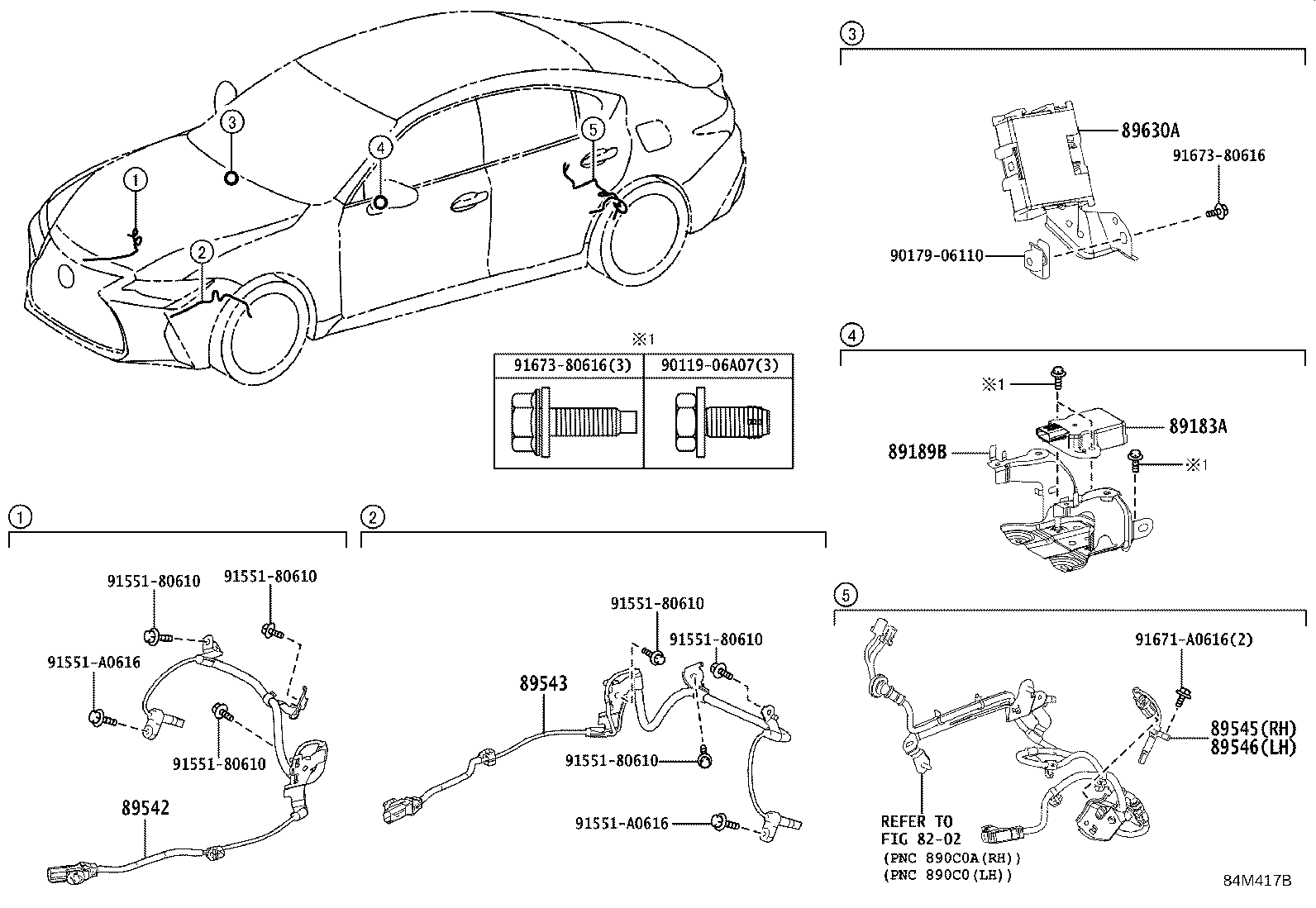

Figure 84M417B

84M417B 2020-09 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
89183A	Sensor, Yawrate
89189B	Bracket, Yawrate Sensor
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89630A	Computer Assy, 4WD

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
