Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tire Pressure Warning System

6 part groups · 2 illustrations

Illustrations

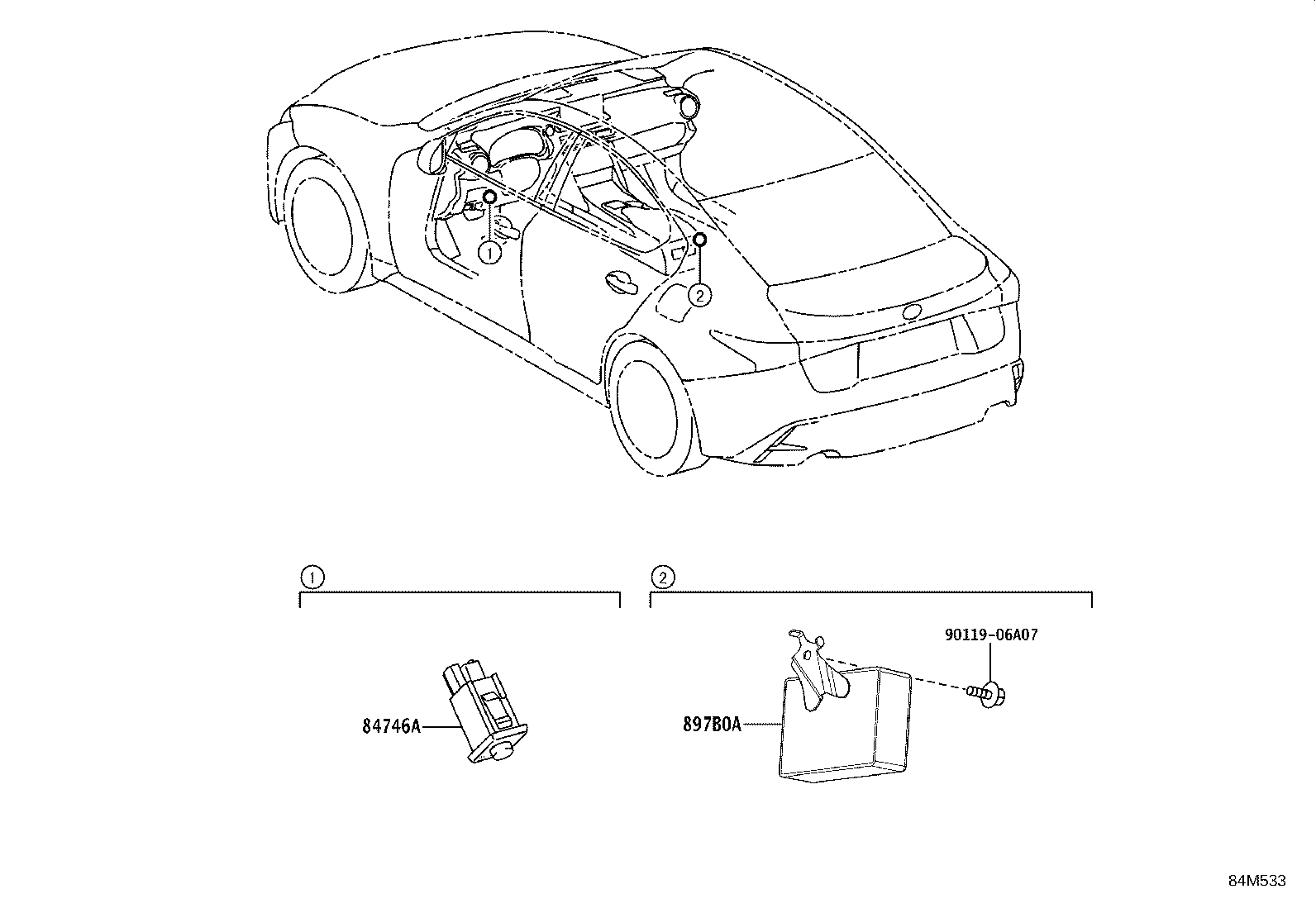

Figure 84H737 84H737 2013-04 → 2020-09 Figure 84M533 84M533 2020-09 → —

Part groups

PNCDescription
84746A Switch, Tire Pressure Warning, NO.1
89760C Receiver Assy, Tire Pressure Monitor
8976A Driver, Tire Pressure Monitor Initiator
8976B Initiator, Tire Pressure Monitor Front
8976C Initiator, Tire Pressure Monitor Rear
897B0A Receiver Assy, Electrical Key & Tpms
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
