Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 5 illustrations

Illustrations

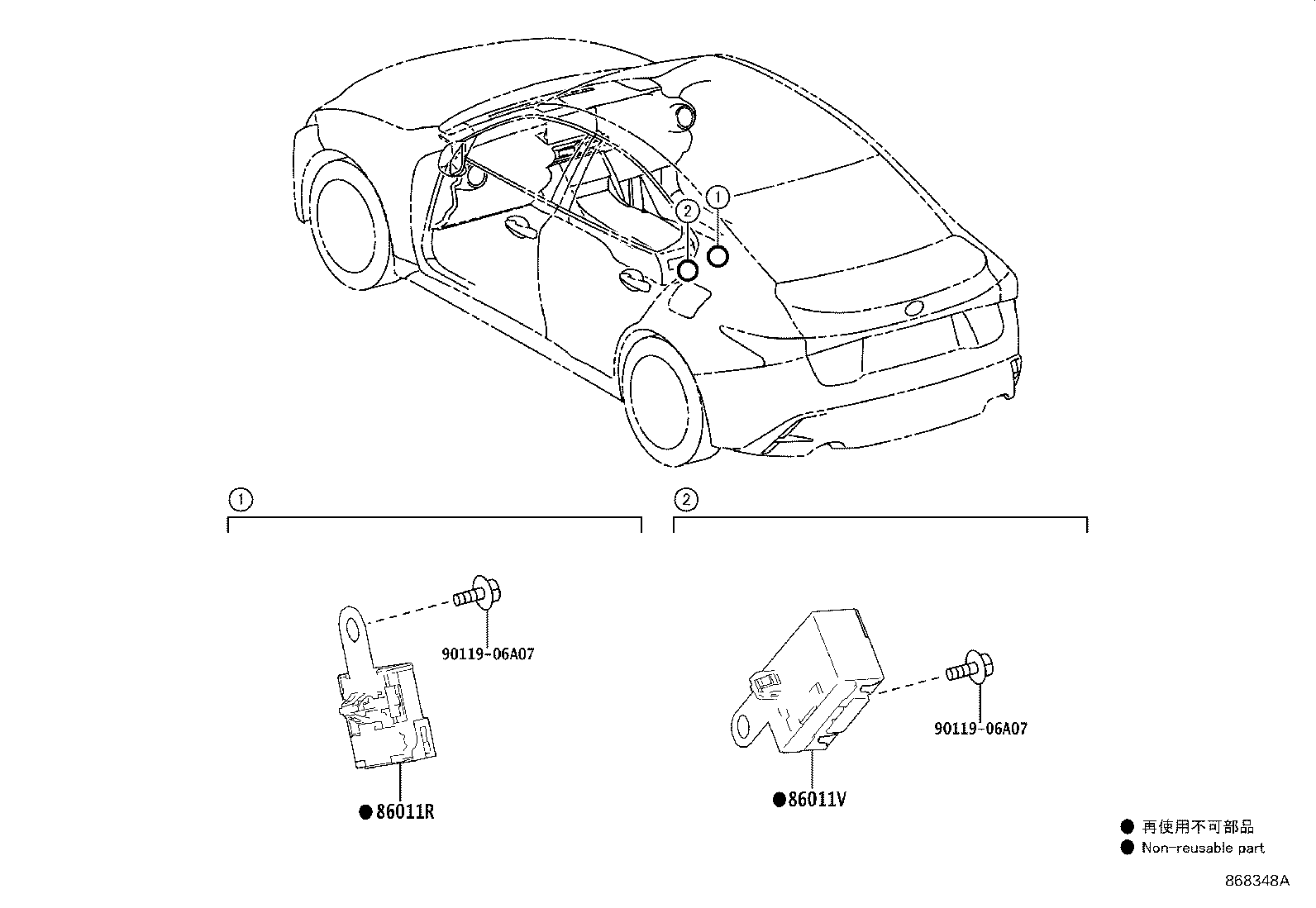

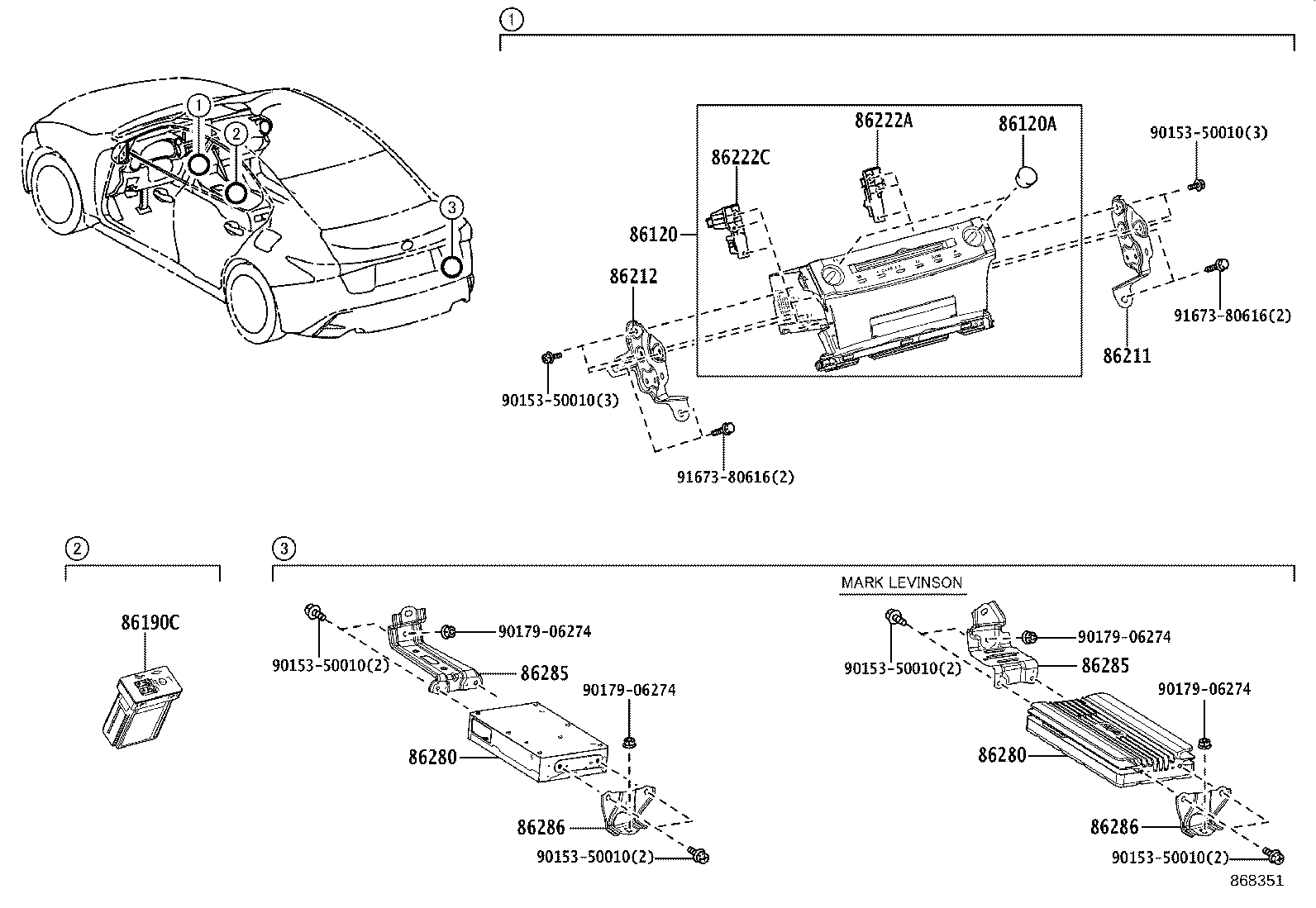

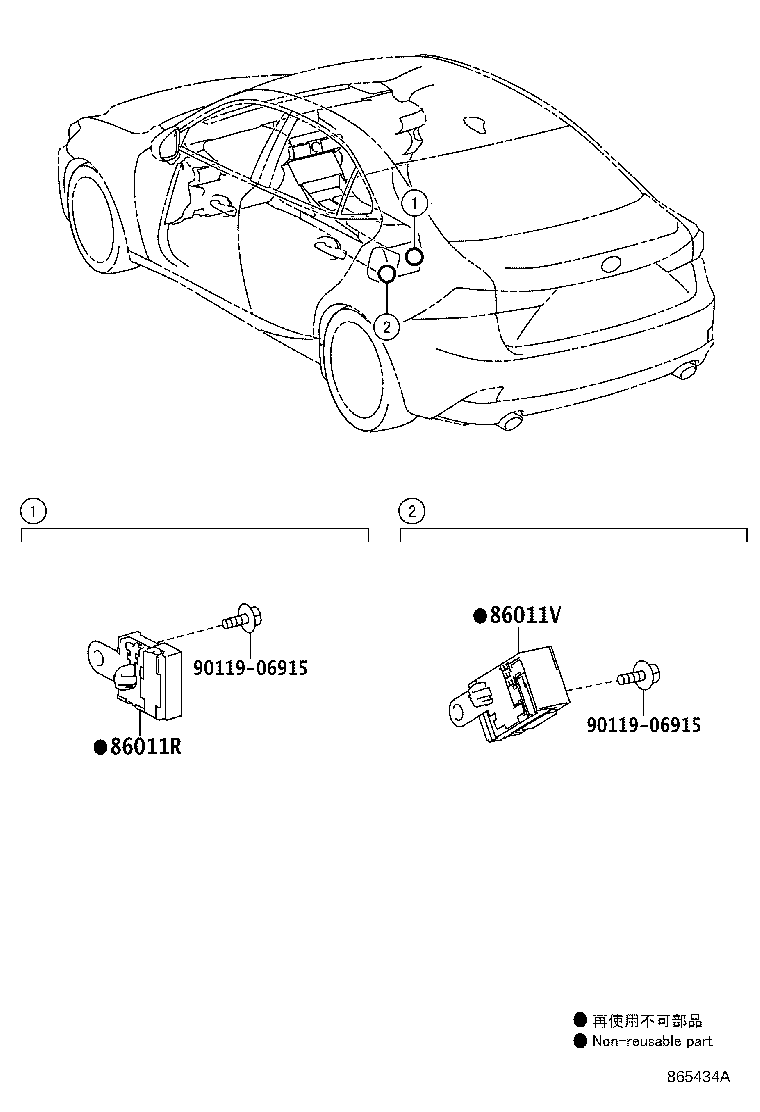

Figure 865435C 865435C 2013-04 → 2020-09 Figure 868351 868351 2020-09 → — Figure 865434A 865434A 2013-04 → 2020-09 Figure 868348A 868348A 2020-09 → — Figure 865518 865518 2013-04 → 2015-08

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86222A Clip, Radio Receiver Bracket NO.1
86222C Clip, Radio Receiver Bracket NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86723C Wire, Mobilephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
