Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

11 part groups · 2 illustrations

Illustrations

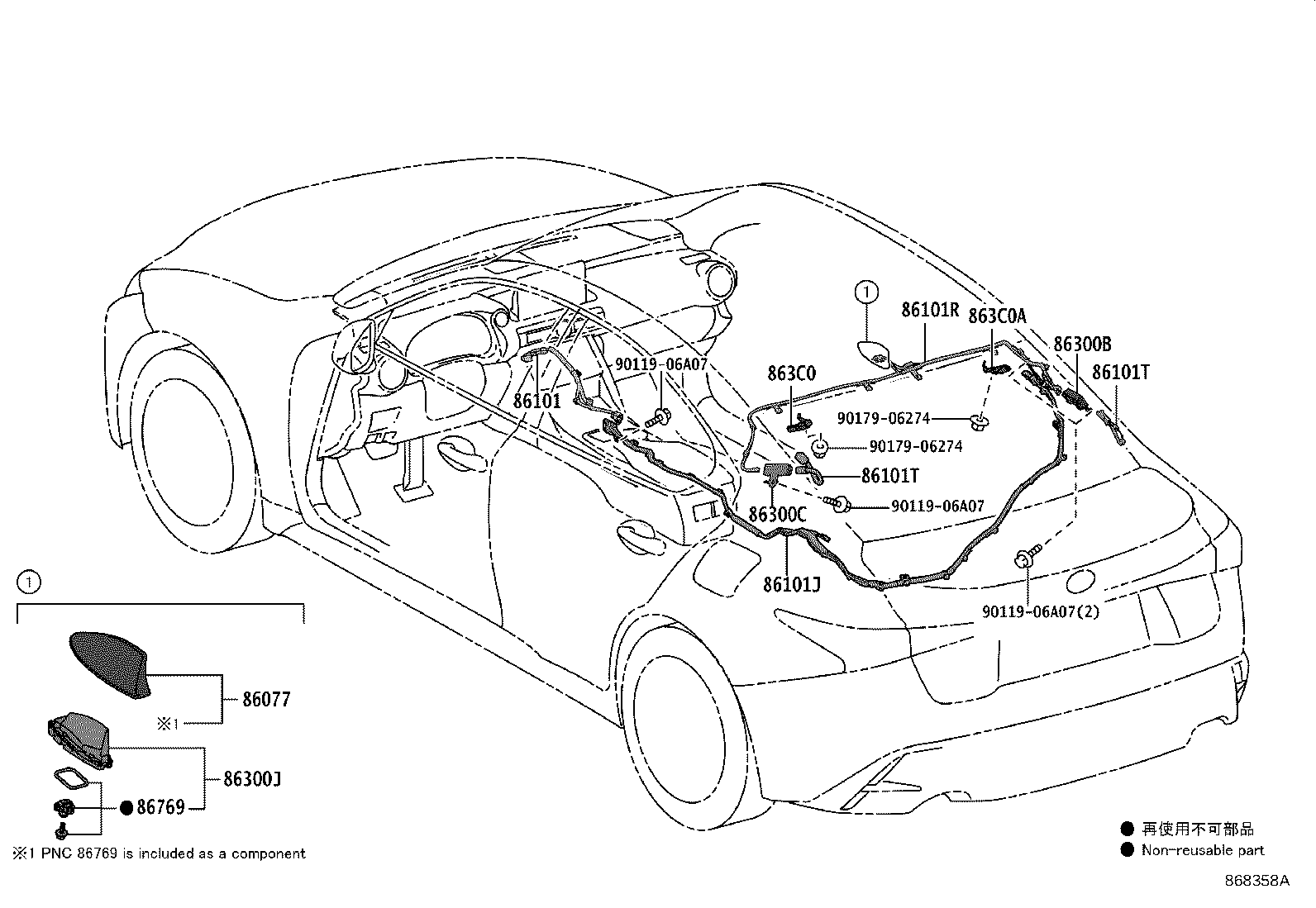

Figure 865420B 865420B 2013-04 → 2020-09 Figure 868358A 868358A 2020-09 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86101R Cord Sub-assy, Antenna, NO.5
86101T Cord Sub-assy, Antenna
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
863C0 Antenna Assy, Digital Audio Broadcasting
863C0A Antenna Assy, Digital Audio Broadcasting
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
