Toyota Lexus IS Series
2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States
Supported model
Data version 2021-09

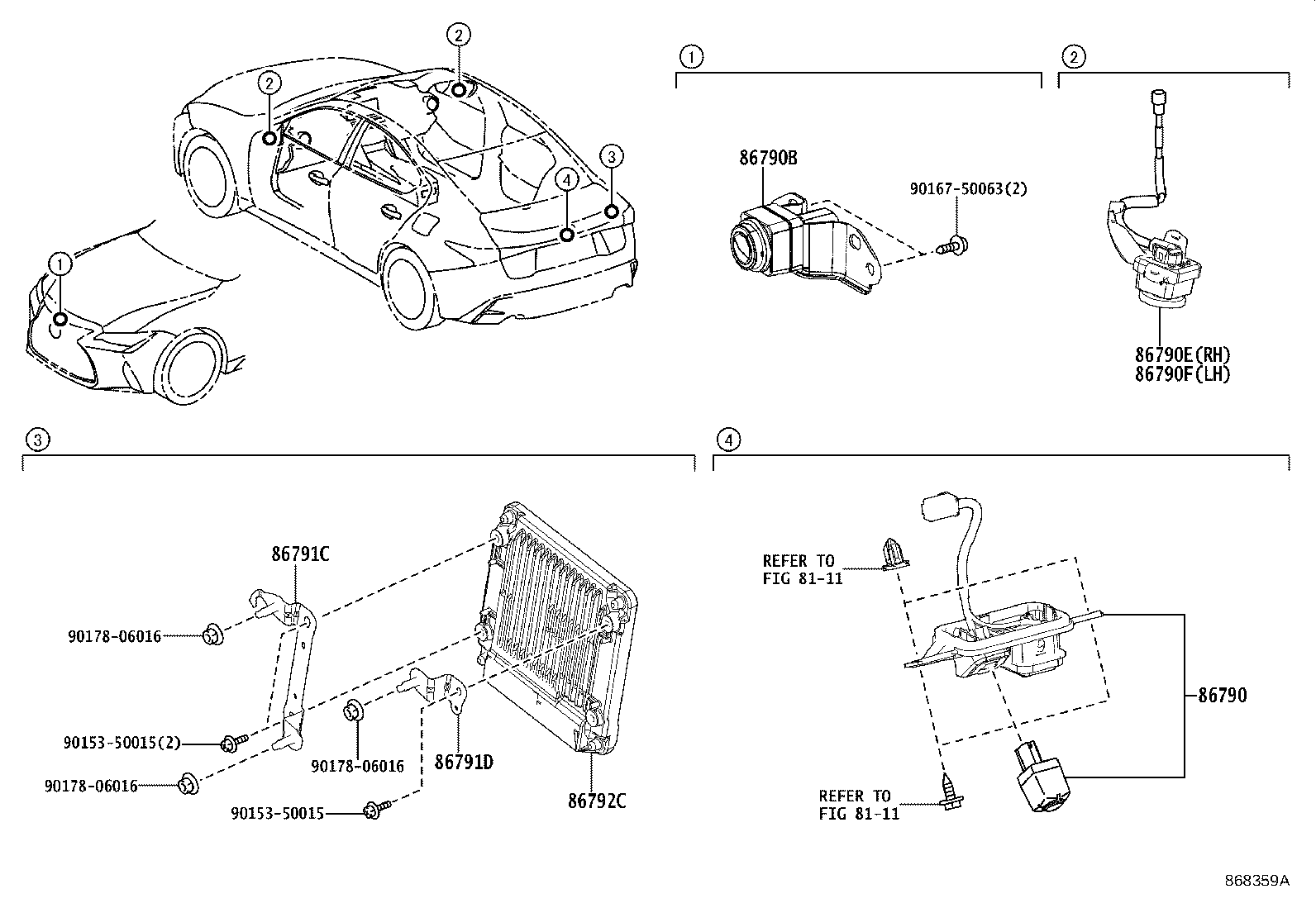

Camera & Rear Monitor Display
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86790 | Camera Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86791C | Bracket, Computer Parking Assist, NO.1 |
| 86791D | Bracket, Computer Parking Assist, NO.2 |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
