Toyota Lexus IS Series

2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure 87D598C

87D598C 2013-04 → 2017-10

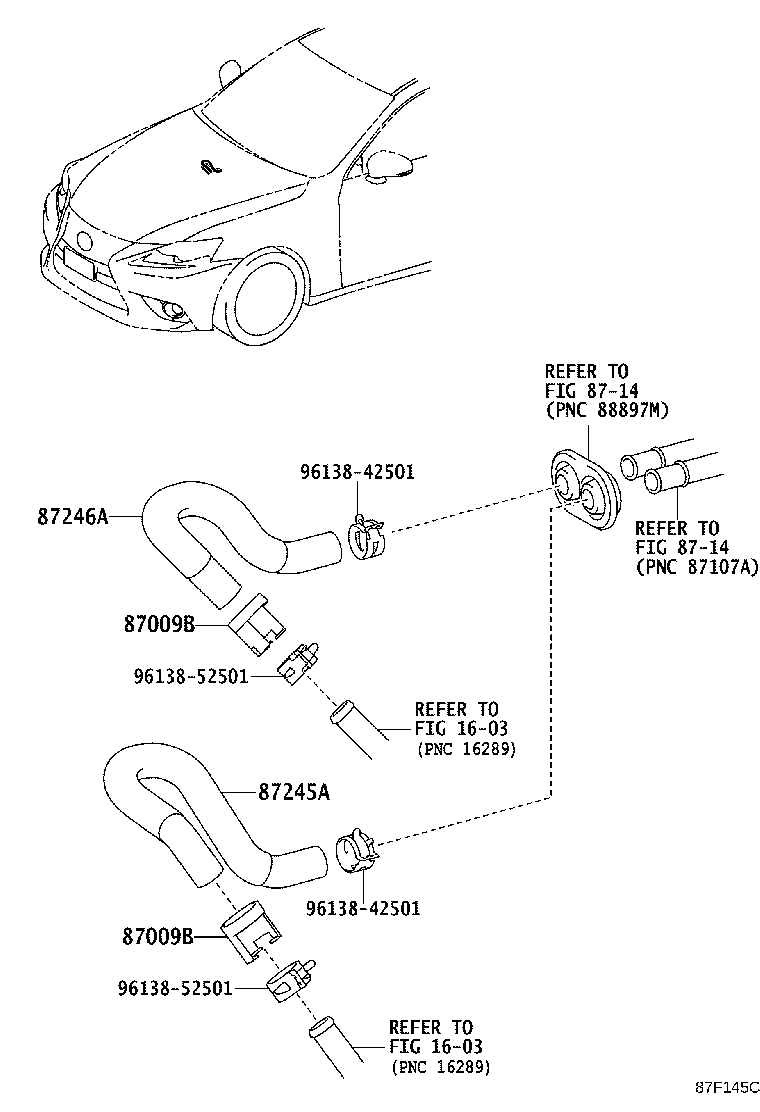

Figure 87F145C

87F145C 2015-08 → —

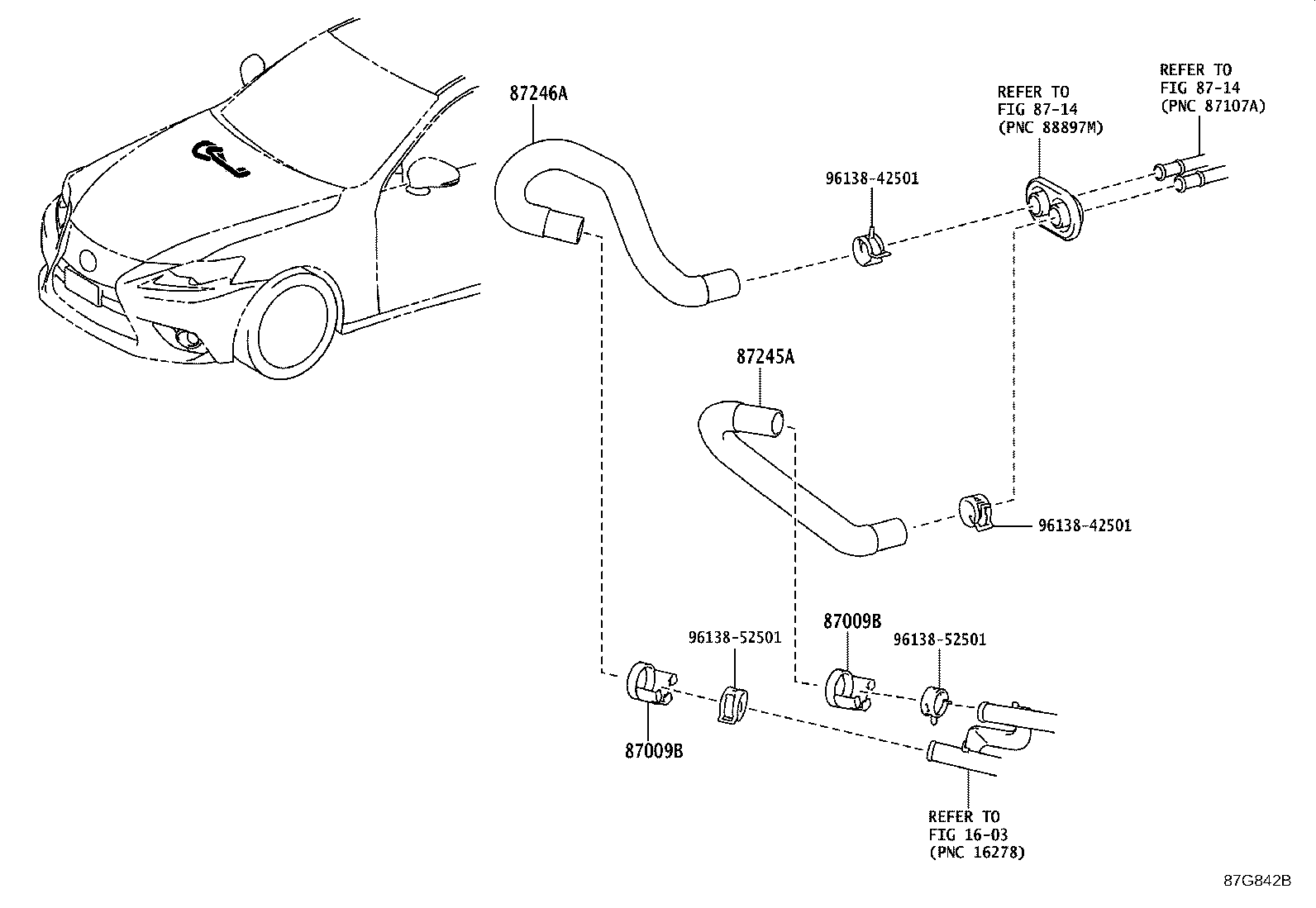

Figure 87G842B

87G842B 2017-10 → —

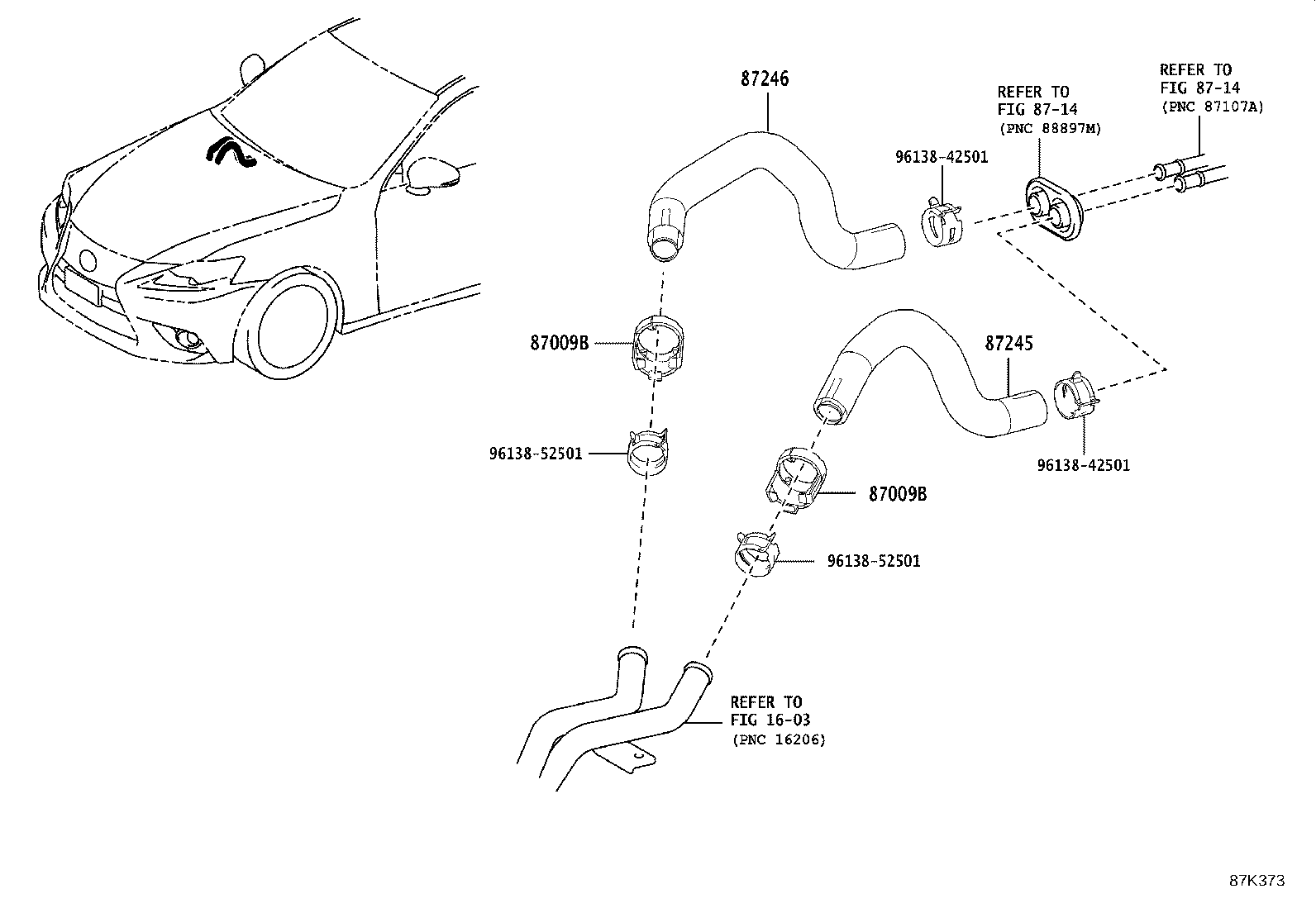

Figure 87K373

87K373 2021-11 → —

Part groups

PNC	Description
87009B	Hose Set, Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
