Toyota Lexus IS Series
2013-04 → present · chassis ASE30,GSE3#,USE30 · catalogue 242430 · United States
Supported model
Data version 2021-09

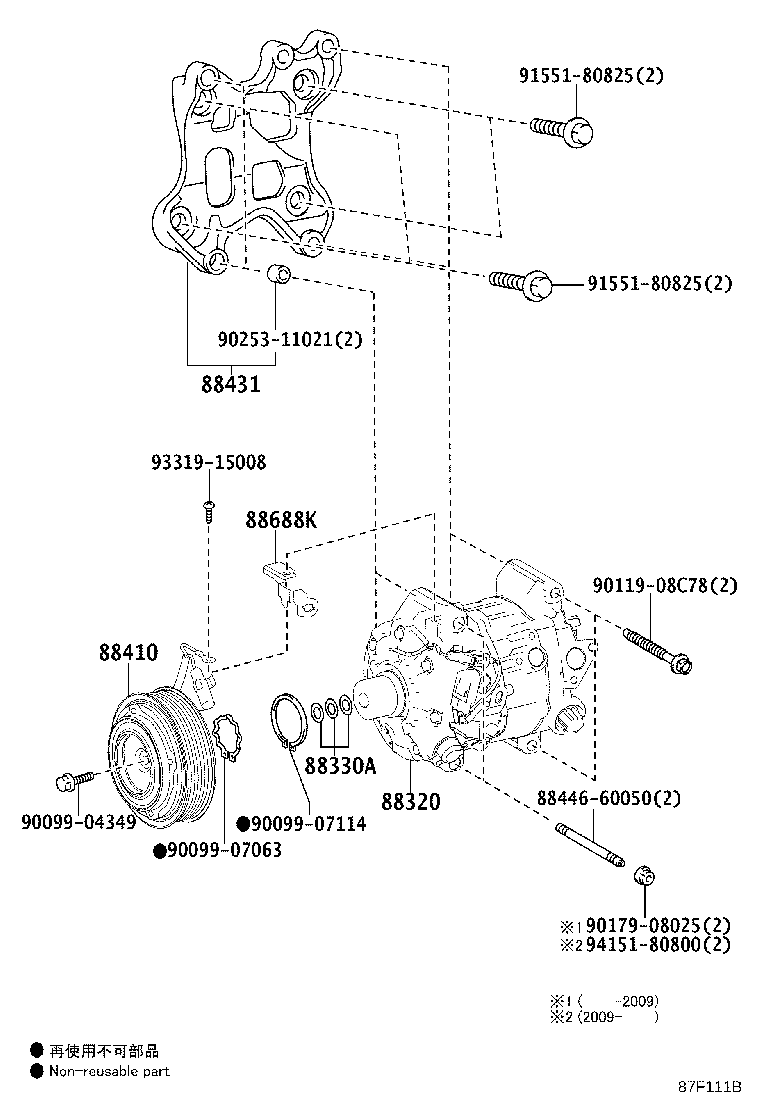

Heating & Air Conditioning - Compressor
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

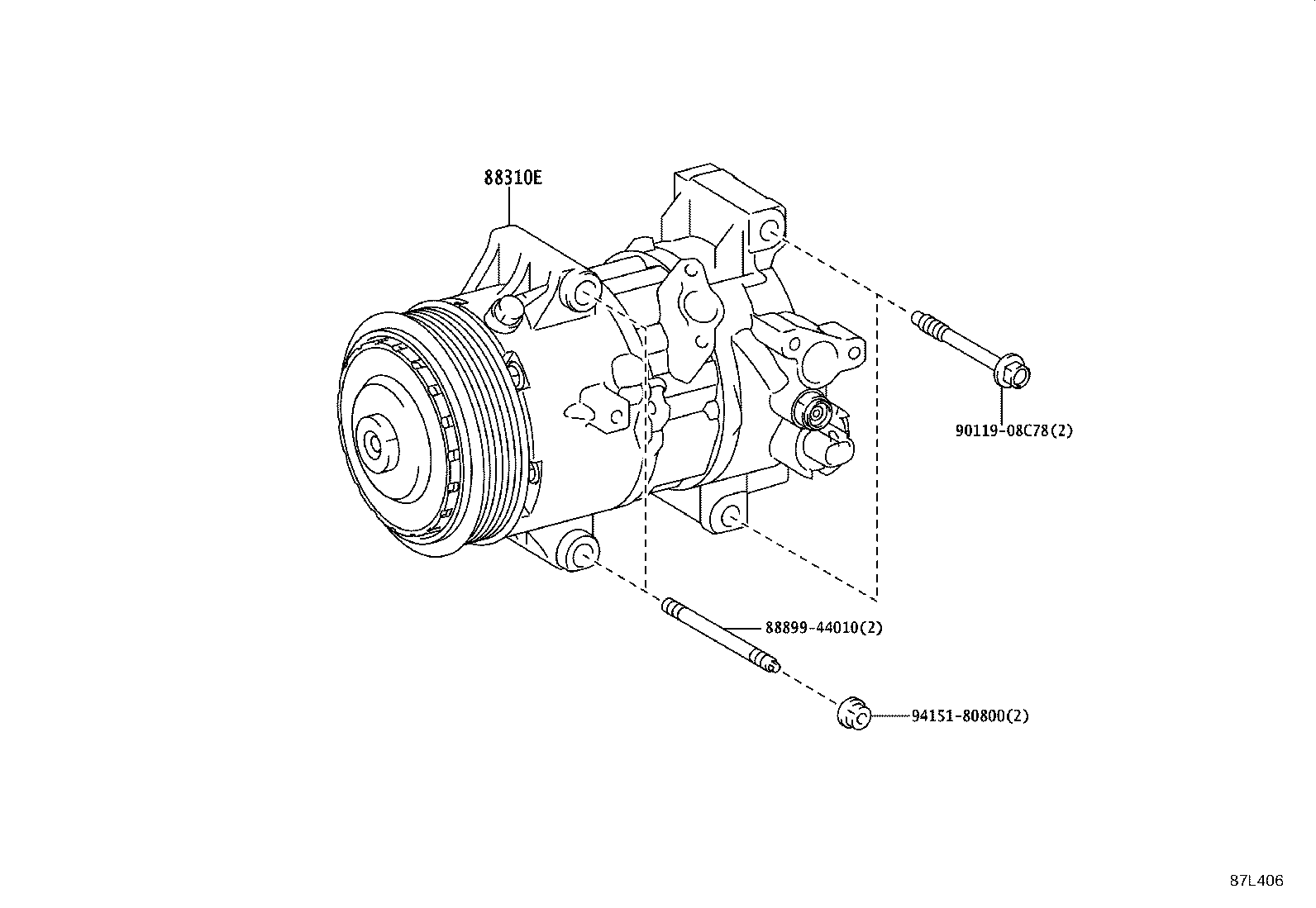

| 88310E | Compressor, W/Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
