Toyota Lexus IS F
2007-12 → 2014-08 · chassis USE20 · catalogue 245410 · United States
Supported model
Data version 2015-01

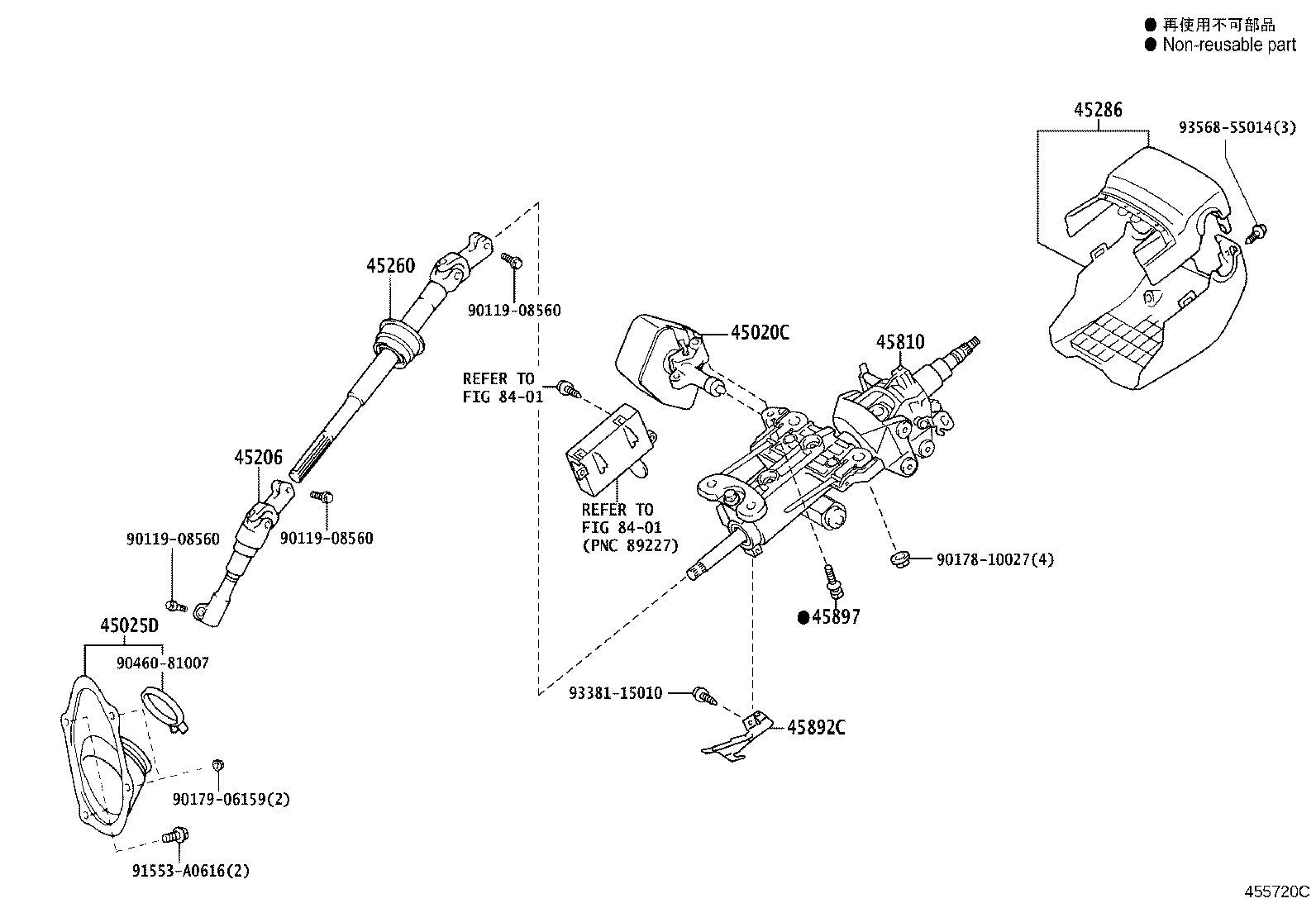

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45020C — Actuator Assy, Steering Lock(W/ECU) | ||||
| 45020-30A60 |
Actuator Assy, Steering Lock(W/ECU)
2007-12 → 2014-08
ended
|
USE20 | — | |
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-30390 |
Cover Sub-assy, Steering Column Hole, NO.1
2007-12 → —
|
USE20 | — | |
| 45206 — Yoke Sub-assy, Steering Sliding W/Shaft | ||||
| 45206-30111 |
Yoke Sub-assy, Steering Sliding W/Shaft
2007-12 → 2011-12
ended
|
USE20 | — | |
| 45206-30112 |
Yoke Sub-assy, Steering Sliding W/Shaft
2011-12 → —
|
USE20 | — | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-30200 |
Shaft Assy, Steering Intermediate, NO.2
2007-12 → 2012-12
ended
|
USE20 | — | |
| 45260-30201 |
Shaft Assy, Steering Intermediate, NO.2
2013-01 → —
|
USE20 | — | |
| 45286 — Cover, Steering Column | ||||
| 45286-53907-C0 note |
Cover, Steering Column
2007-12 → 2009-05
ended
|
USE20 | — | |
| 45286-53912-C0 note |
Cover, Steering Column
2009-05 → 2014-08
ended
|
USE20 | — | |
| 45810 — Gear Assy, Tilt Steering, W/Motor | ||||
| 45810-53020 |
Gear Assy, Tilt Steering, W/Motor
2010-11 → —
|
USE20 | — | |
| 45892C — Bracket, Return Spring | ||||
| 45892-30020 |
Bracket, Return Spring
2010-11 → —
|
USE20 | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2007-12 → —
|
USE20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
