Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245410 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

19 part groups · 3 illustrations

Illustrations

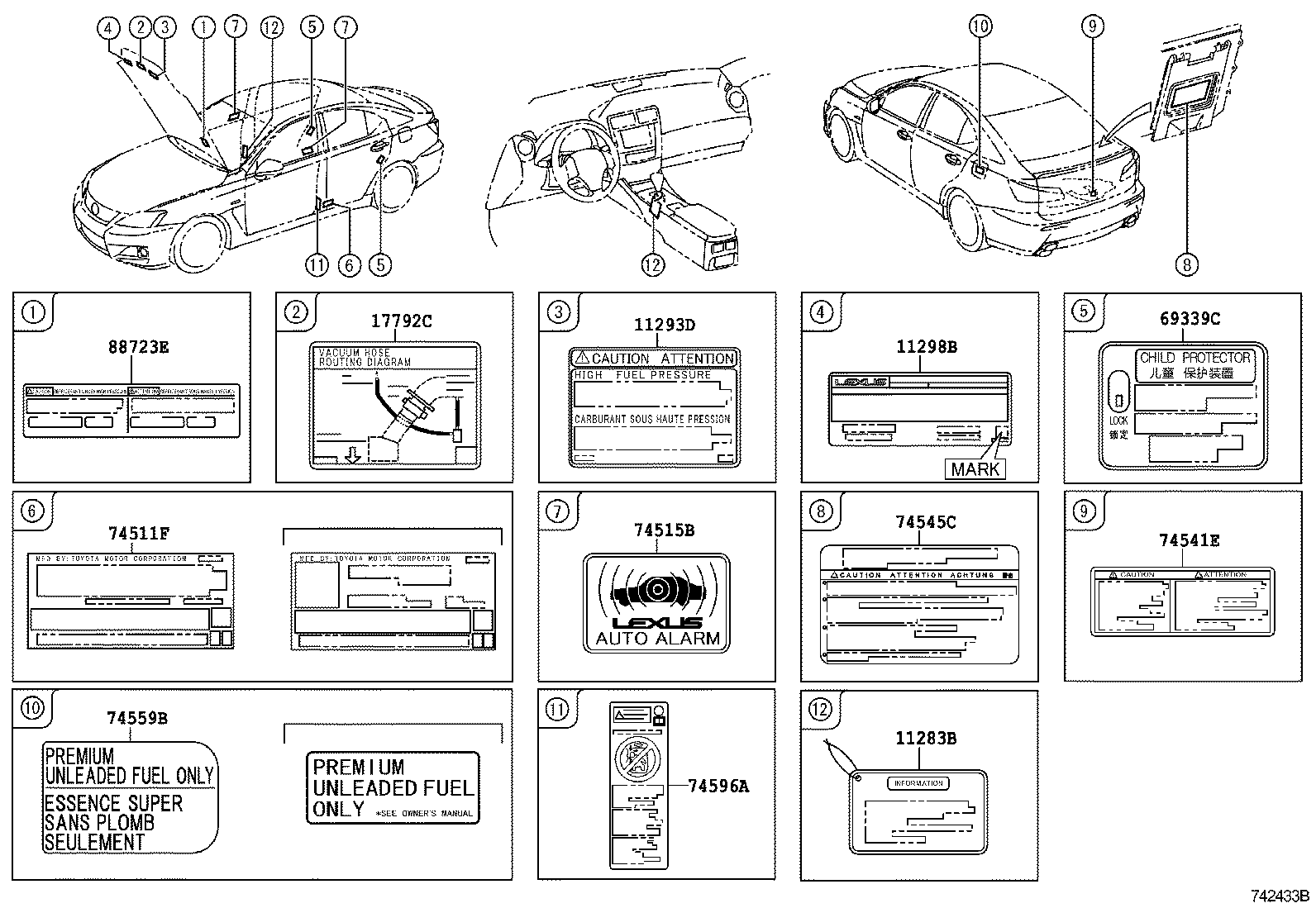

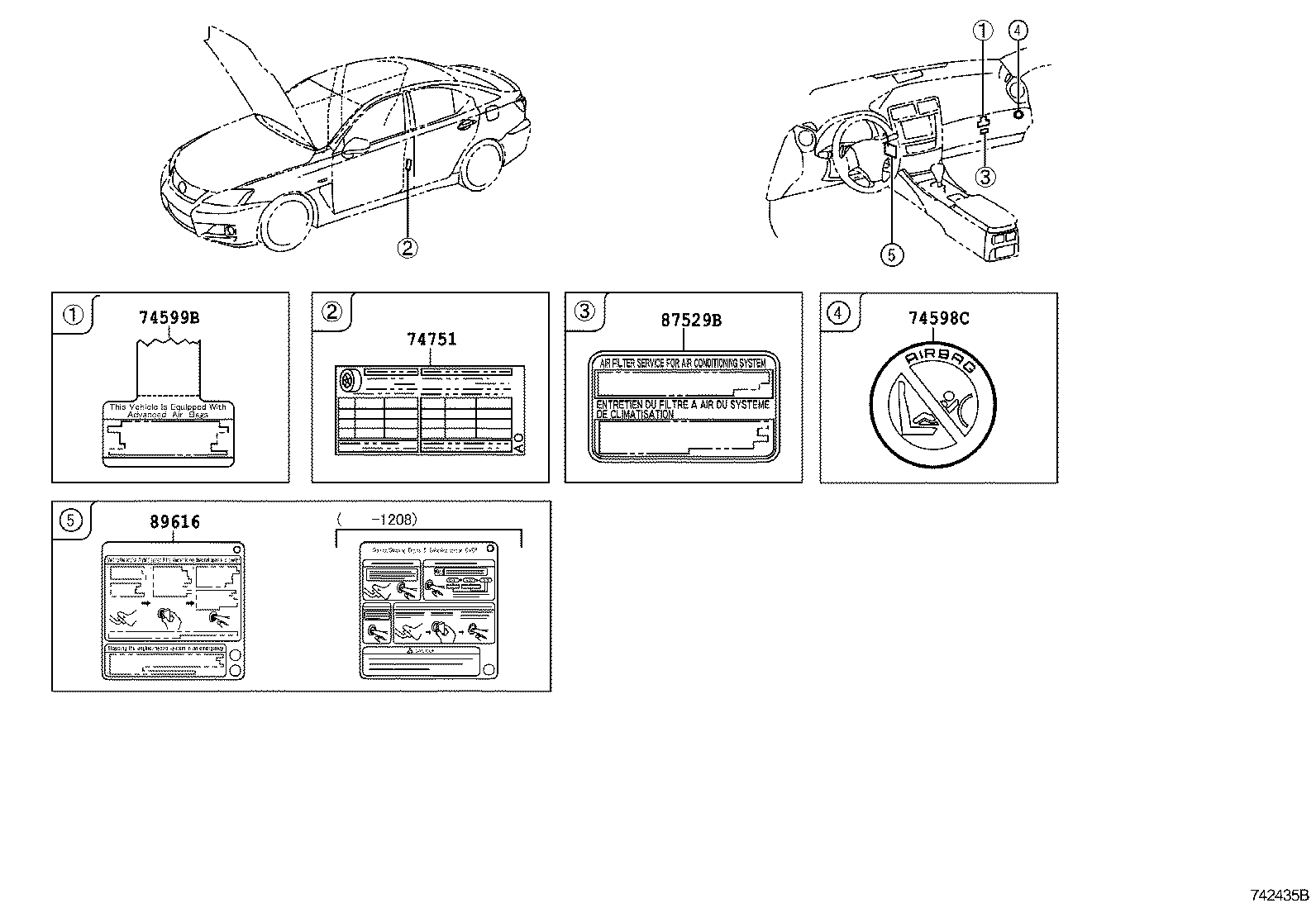

Figure 745799 745799 2007-12 → — Figure 742433B 742433B 2007-12 → — Figure 742435B 742435B 2007-12 → —

Part groups

PNCDescription
11283B Label, Leak Detection Pump Information
11285F Label, Coolant System Caution
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
17792C Label, Engine Vacuum Hose Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74545C Label, Luggage Door
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598C Label, Passenger Airbag Caution
74599B Label, Driver & Passenger Airbag Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
