Toyota Lexus RC350/300/200T
2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States
Supported model
Data version 2018-10

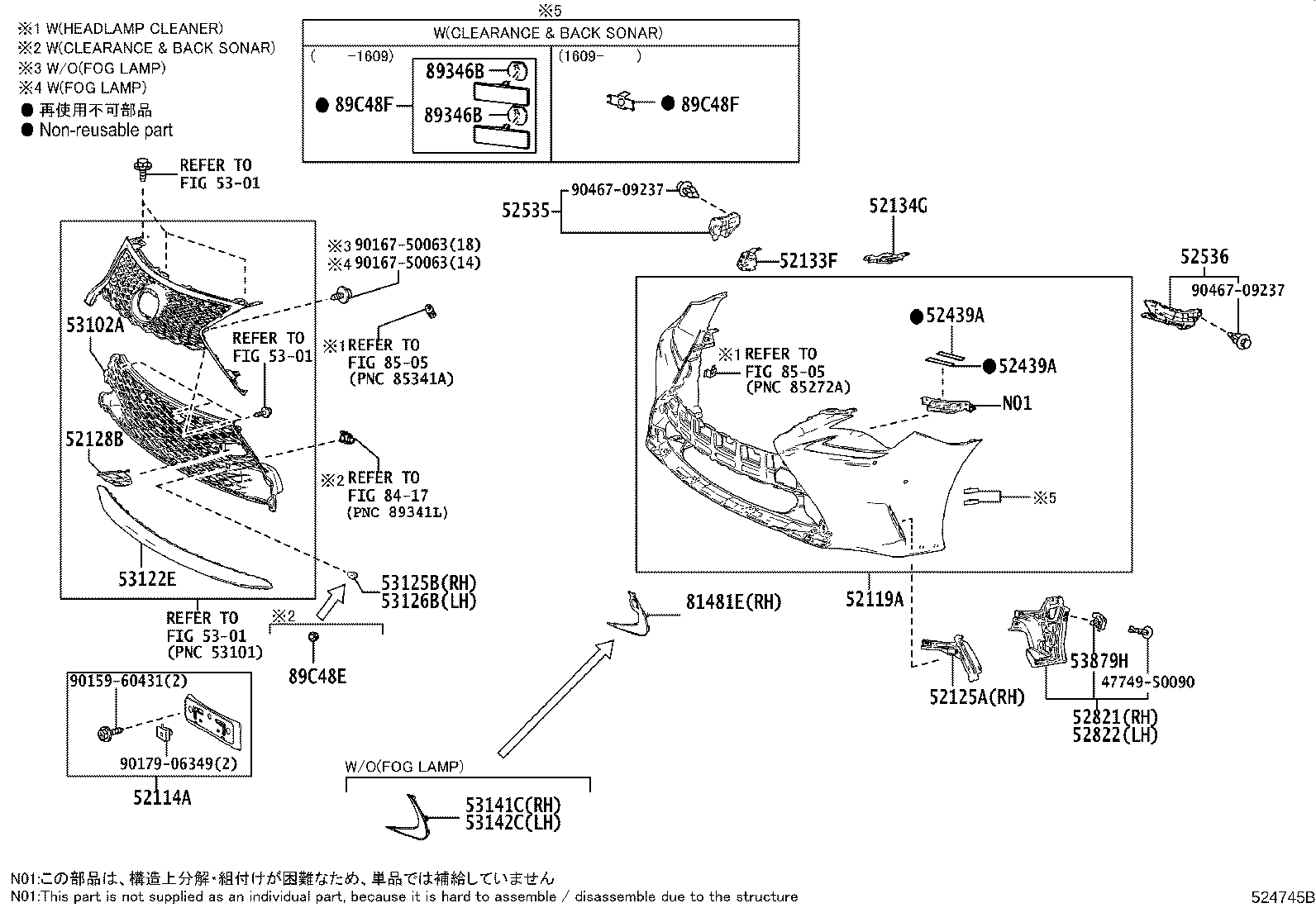

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52114-24110 |
Bracket, Front Bumper Extension Mounting
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52114-24220 note |
Bracket, Front Bumper Extension Mounting
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52114-24110 |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52114-24110 note |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52114-24220 note |
Bracket, Front Bumper Extension Mounting
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52114-24260 note |
Bracket, Front Bumper Extension Mounting
2018-10 → 2020-04
ended
|
ASC10,GSC10 | — | |
| 52114-24260 note |
Bracket, Front Bumper Extension Mounting
2018-10 → 2020-04
ended
|
ASC10,GSC10 | — | |
| 52114-24260 |
Bracket, Front Bumper Extension Mounting
2018-10 → —
|
ASC10,GSC1# | — | |
| 52114-24300 note |
Bracket, Front Bumper Extension Mounting
2018-10 → —
|
ASC10,GSC1# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24959 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24937 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC10 | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC10 | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24942 note |
Cover, Front Bumper
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 52119-24959 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24960 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24960 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24984 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24984 note |
Cover, Front Bumper
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24984 note |
Cover, Front Bumper
2016-09 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2017-11
ended
|
ASC10,GSC1# | — | |
| 52119-24986 note |
Cover, Front Bumper
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52119-24998 note |
Cover, Front Bumper
2018-10 → —
|
ASC10,GSC1# | — | |
| 52119-2U900 note |
Cover, Front Bumper
2018-10 → —
|
ASC10,GSC1# | — | |
| 52119-2U902 note |
Cover, Front Bumper
2018-10 → 2020-09
ended
|
ASC10,GSC10 | — | |
| 52119-2U905 note |
Cover, Front Bumper
2018-10 → 2020-09
ended
|
ASC10,GSC10 | — | |
| 52119-2U908 note |
Cover, Front Bumper
2018-10 → —
|
ASC10,GSC1# | — | |
| 52119-2U909 note |
Cover, Front Bumper
2018-10 → —
|
ASC10,GSC1# | — | |
| 52125A — Bracket, Fog Lamp Mounting, RH | ||||
| 52125-24040 |
Bracket, Fog Lamp Mounting, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52125-24040 |
Bracket, Fog Lamp Mounting, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52128-24090 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52133F — Bracket, Front Bumper, RH | ||||
| 52133-24060 |
Bracket, Front Bumper, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52133-24060 |
Bracket, Front Bumper, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52133-24040 |
Bracket, Front Bumper, RH
2018-10 → —
|
ASC10,GSC1# | — | |
| 52134G — Bracket, Front Bumper, LH | ||||
| 52134-24060 |
Bracket, Front Bumper, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52134-24060 |
Bracket, Front Bumper, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52134-24040 |
Bracket, Front Bumper, LH
2018-10 → —
|
ASC10,GSC1# | — | |
| 52439A — Tape, Front Bumper Guard Prtector | ||||
| 52439-24010 |
Tape, Front Bumper Guard Prtector
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52439-24010 |
Tape, Front Bumper Guard Prtector
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-24040 |
Retainer, Front Bumper Side, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52535-24040 |
Retainer, Front Bumper Side, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52535-24060 |
Retainer, Front Bumper Side, RH
2018-10 → —
|
ASC10,GSC1# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-24040 |
Retainer, Front Bumper Side, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52536-24040 |
Retainer, Front Bumper Side, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52536-24060 |
Retainer, Front Bumper Side, LH
2018-10 → —
|
ASC10,GSC1# | — | |
| 52821 — Duct, Air Intake, RH | ||||
| 52821-24010 |
Duct, Air Intake, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52821-24010 |
Duct, Air Intake, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 52822 — Duct, Air Intake, LH | ||||
| 52822-24010 |
Duct, Air Intake, LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 52822-24010 |
Duct, Air Intake, LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102A — Grille Sub-assy, Radiator, Lwr | ||||
| 53102-24040 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24040 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24050 |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53102-24040 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 53102-24040 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 53102-24050 |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24100 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24110 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24120 note |
Grille Sub-assy, Radiator, Lwr
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24120 note |
Grille Sub-assy, Radiator, Lwr
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53102-24120 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24120 note |
Grille Sub-assy, Radiator, Lwr
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53102-24130 |
Grille Sub-assy, Radiator, Lwr
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122E — Moulding, Radiator Grille, Lower | ||||
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24030 note |
Moulding, Radiator Grille, Lower
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24090 note |
Moulding, Radiator Grille, Lower
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24090 note |
Moulding, Radiator Grille, Lower
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53122-24060 |
Moulding, Radiator Grille, Lower
2018-10 → —
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2023-10 → —
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2023-10 → —
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2023-10 → —
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2023-10 → —
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2018-10 → 2023-10
ended
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2020-09 → 2023-01
ended
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2018-10 → 2023-10
ended
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2018-10 → 2020-09
ended
|
ASC10,GSC10 | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2020-09 → 2023-01
ended
|
ASC10,GSC1# | — | |
| 53122-24080 note |
Moulding, Radiator Grille, Lower
2018-10 → 2020-09
ended
|
ASC10,GSC10 | — | |
| 53125B — Moulding, Radiator Grille, Center RH | ||||
| 53125-24010 |
Moulding, Radiator Grille, Center RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53125-24010 |
Moulding, Radiator Grille, Center RH
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53125-24020 note |
Moulding, Radiator Grille, Center RH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53125-24030 |
Moulding, Radiator Grille, Center RH
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53126B — Moulding, Radiator Grille, Center LH | ||||
| 53126-24010 |
Moulding, Radiator Grille, Center LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53126-24010 |
Moulding, Radiator Grille, Center LH
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 53126-24020 note |
Moulding, Radiator Grille, Center LH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53126-24030 |
Moulding, Radiator Grille, Center LH
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53141C — Garnish, Radiator Grille | ||||
| 53141-24020 |
Garnish, Radiator Grille
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53141-24020 |
Garnish, Radiator Grille
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53142C — Garnish, Radiator Grille, NO.2 | ||||
| 53142-24020 |
Garnish, Radiator Grille, NO.2
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53142-24020 |
Garnish, Radiator Grille, NO.2
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53879H — Retainer, Front Fender Liner | ||||
| 53879-30050 |
Retainer, Front Fender Liner
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 53879-30050 |
Retainer, Front Fender Liner
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 53879-30060 |
Retainer, Front Fender Liner
2018-10 → —
|
ASC10,GSC1# | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 81481-24020 note |
Cover, Fog Lamp, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2017-11 → 2018-10
ended
|
ASC10,GSC10 | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 81481-24020 note |
Cover, Fog Lamp, RH
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 81481-24040 note |
Cover, Fog Lamp, RH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 81481-24040 note |
Cover, Fog Lamp, RH
2018-02 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 89346B — Adjuster, Ultrasonic Sensor | ||||
| 89346-33010 note |
Adjuster, Ultrasonic Sensor
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 89346-33010 note |
Adjuster, Ultrasonic Sensor
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 89C48E — Retainer, Ultrasonic Sensor, Front Center | ||||
| 89348-35010 note |
Retainer, Ultrasonic Sensor, Front Center
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 89348-35010 note |
Retainer, Ultrasonic Sensor, Front Center
2015-10 → 2018-10
ended
|
ASC10,GSC1# | — | |
| 89C48F — Retainer, Ultrasonic Sensor, Front Side | ||||
| 89348-33110 note |
Retainer, Ultrasonic Sensor, Front Side
2014-09 → 2015-10
ended
|
GSC1# | — | |
| 89348-33110 note |
Retainer, Ultrasonic Sensor, Front Side
2015-10 → 2016-09
ended
|
ASC10,GSC1# | — | |
| 89348-78020 note |
Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2018-10
ended
|
ASC10,GSC1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
