Toyota Lexus RC350/300/200T

2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 5 illustrations

Illustrations

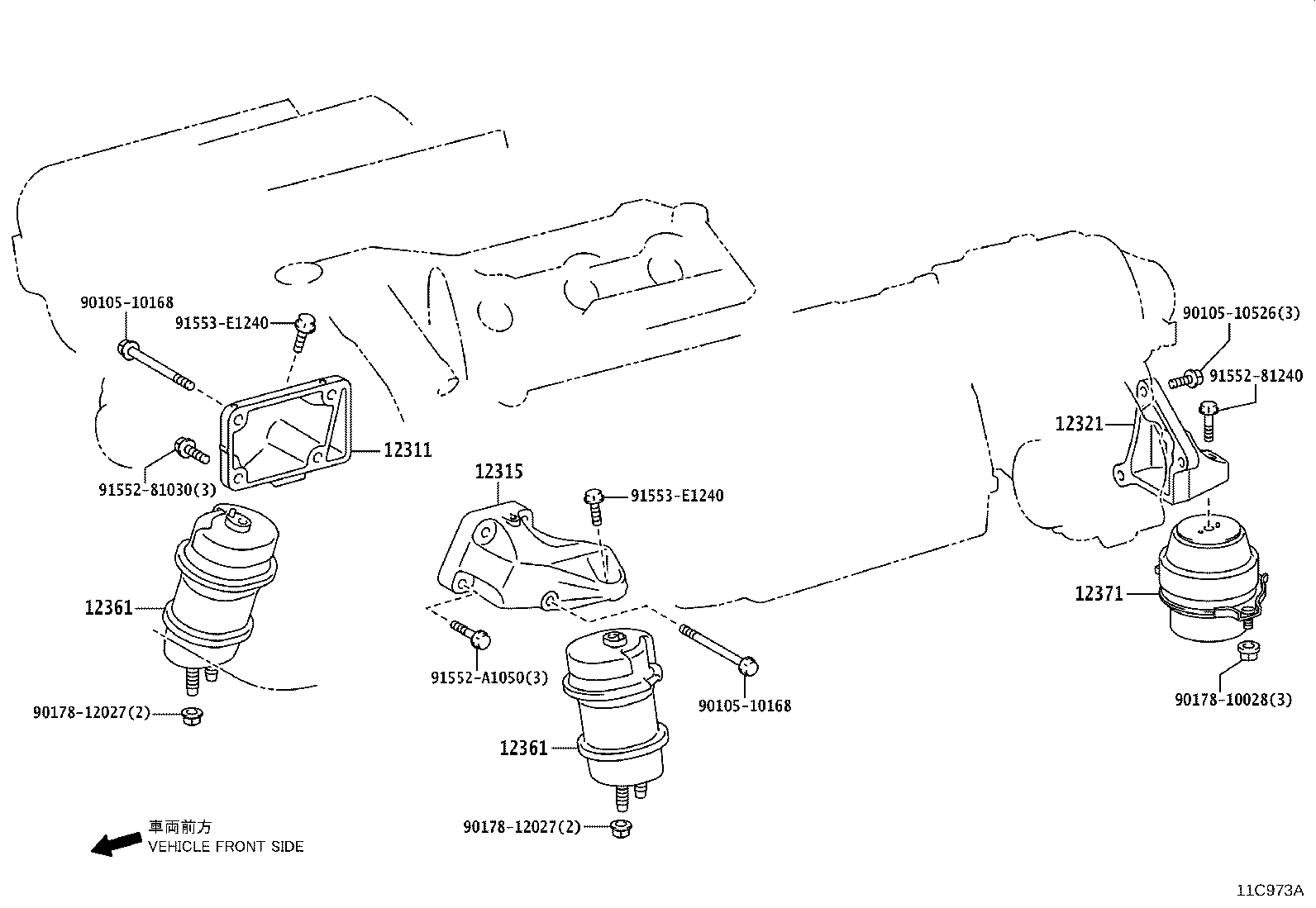

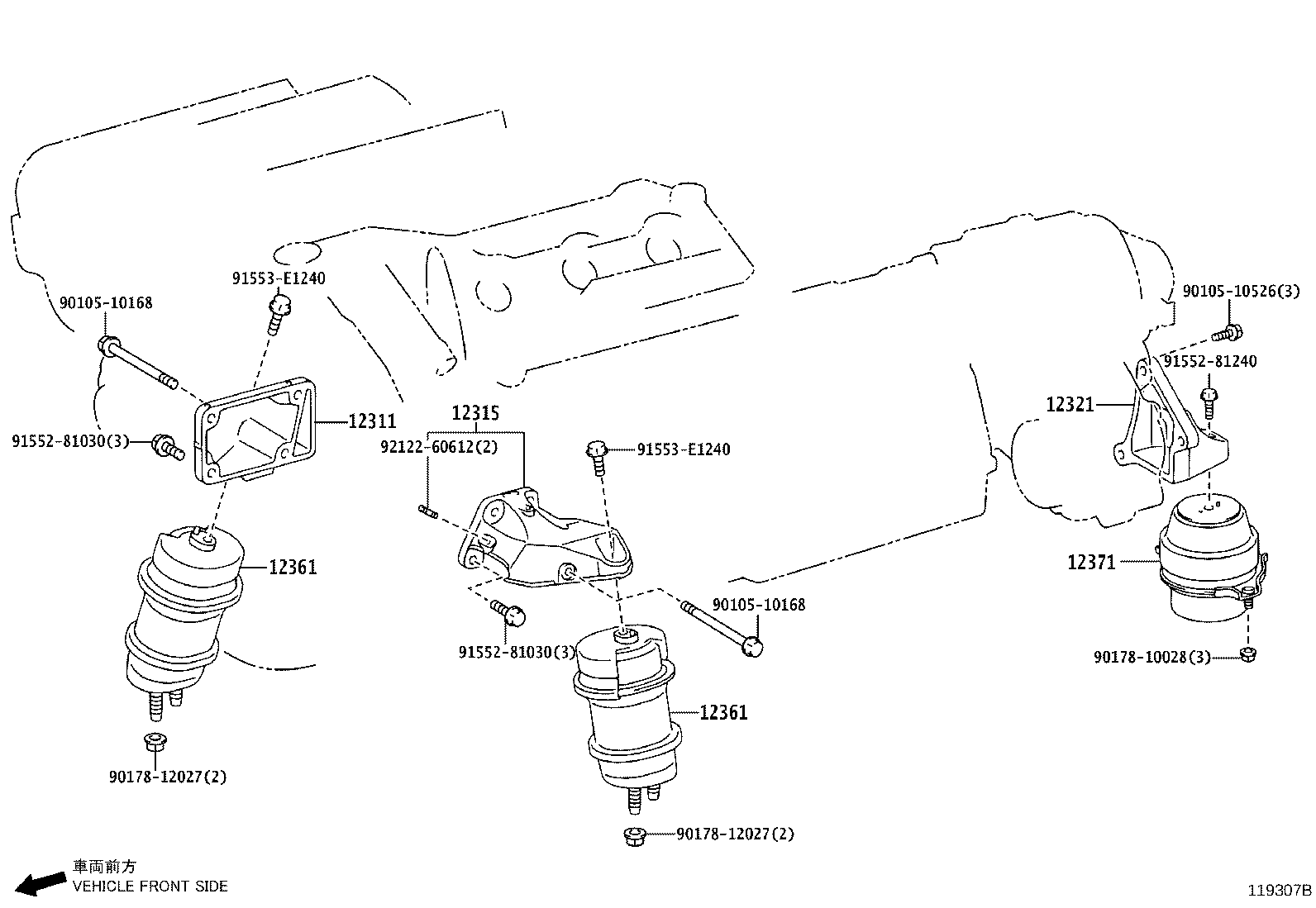

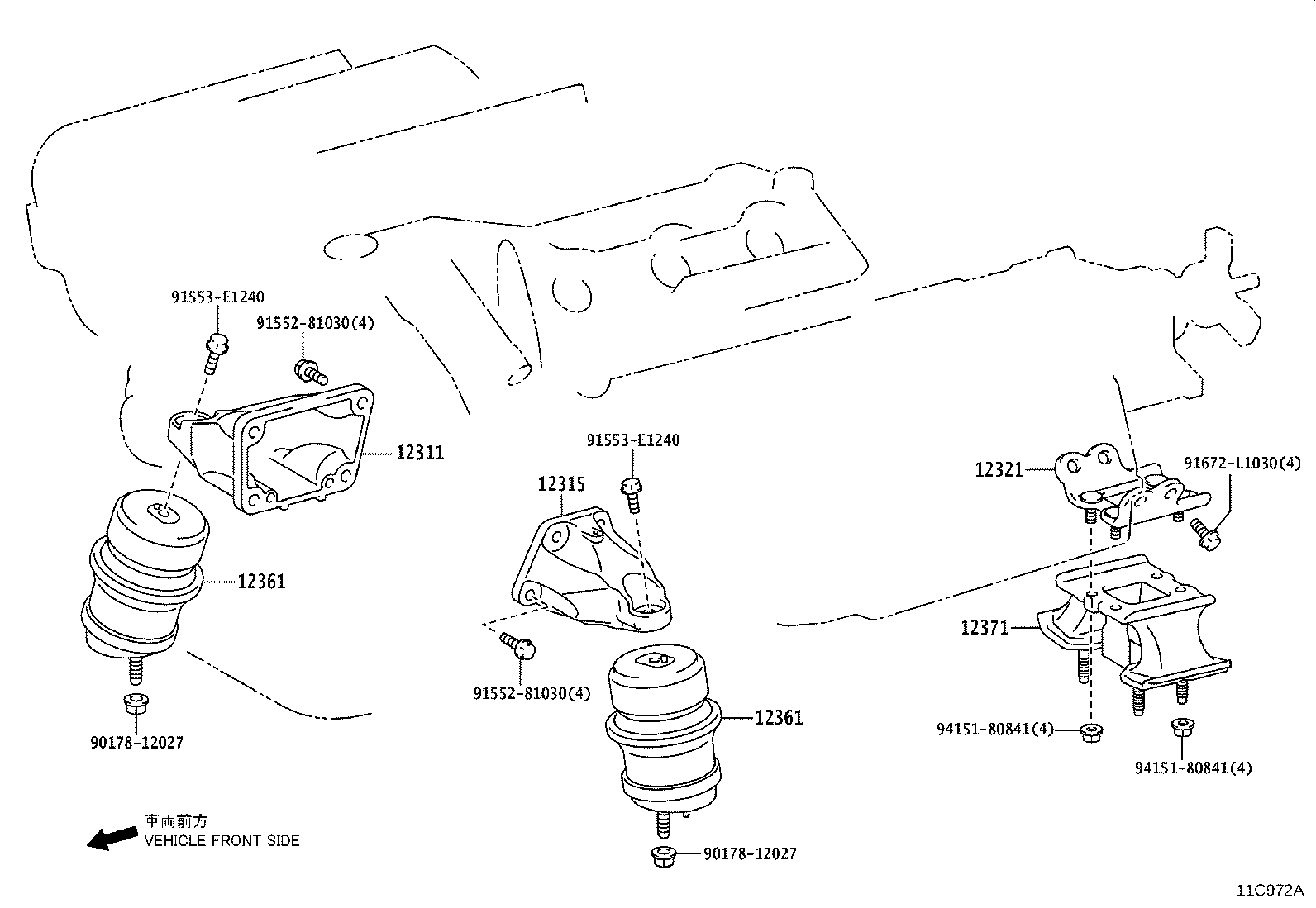

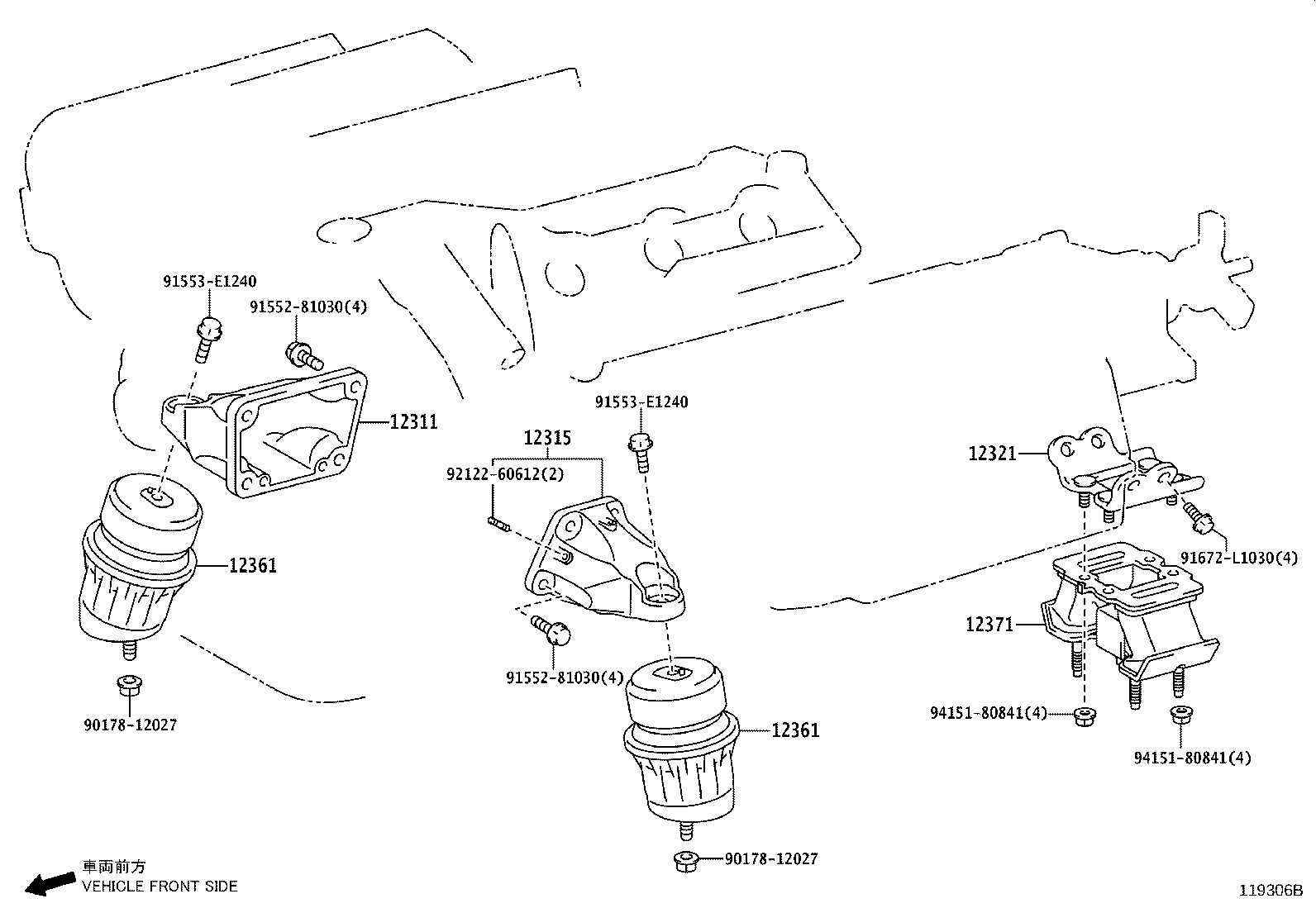

Figure 11A850B 11A850B 2015-10 → — Figure 119306B 119306B 2014-09 → 2017-11 Figure 119307B 119307B 2014-09 → 2017-11 Figure 11C972A 11C972A 2017-11 → — Figure 11C973A 11C973A 2017-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
