Toyota Lexus RC350/300/200T

2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

8 part groups · 2 illustrations

Illustrations

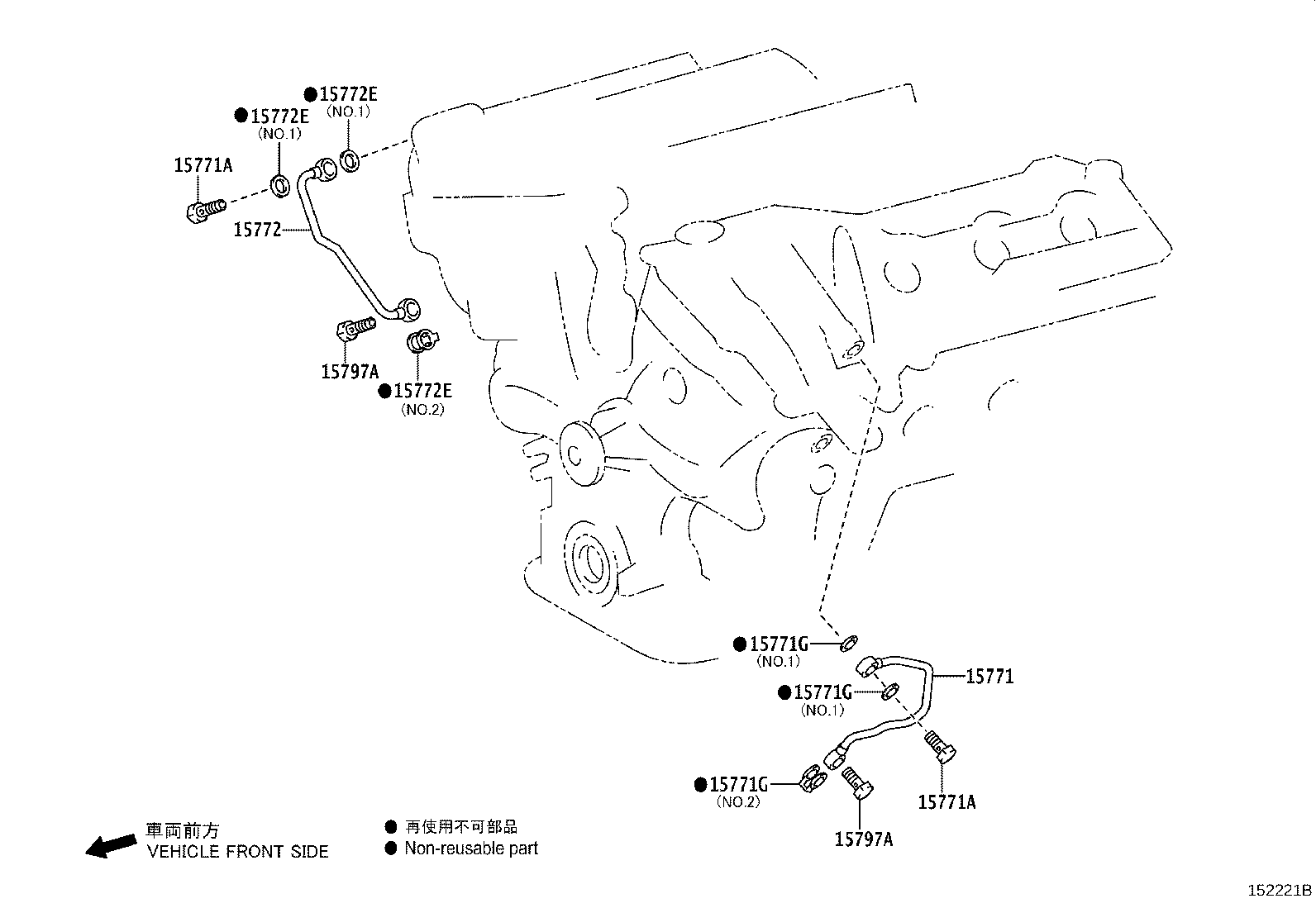

Figure 152458B 152458B 2015-10 → — Figure 152221B 152221B 2014-09 → 2017-11

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772E Gasket(FOR OIL PIPE)
15797A Bolt, Oil Check Valve
