Toyota Lexus RC350/300/200T

2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

8 part groups · 3 illustrations

Illustrations

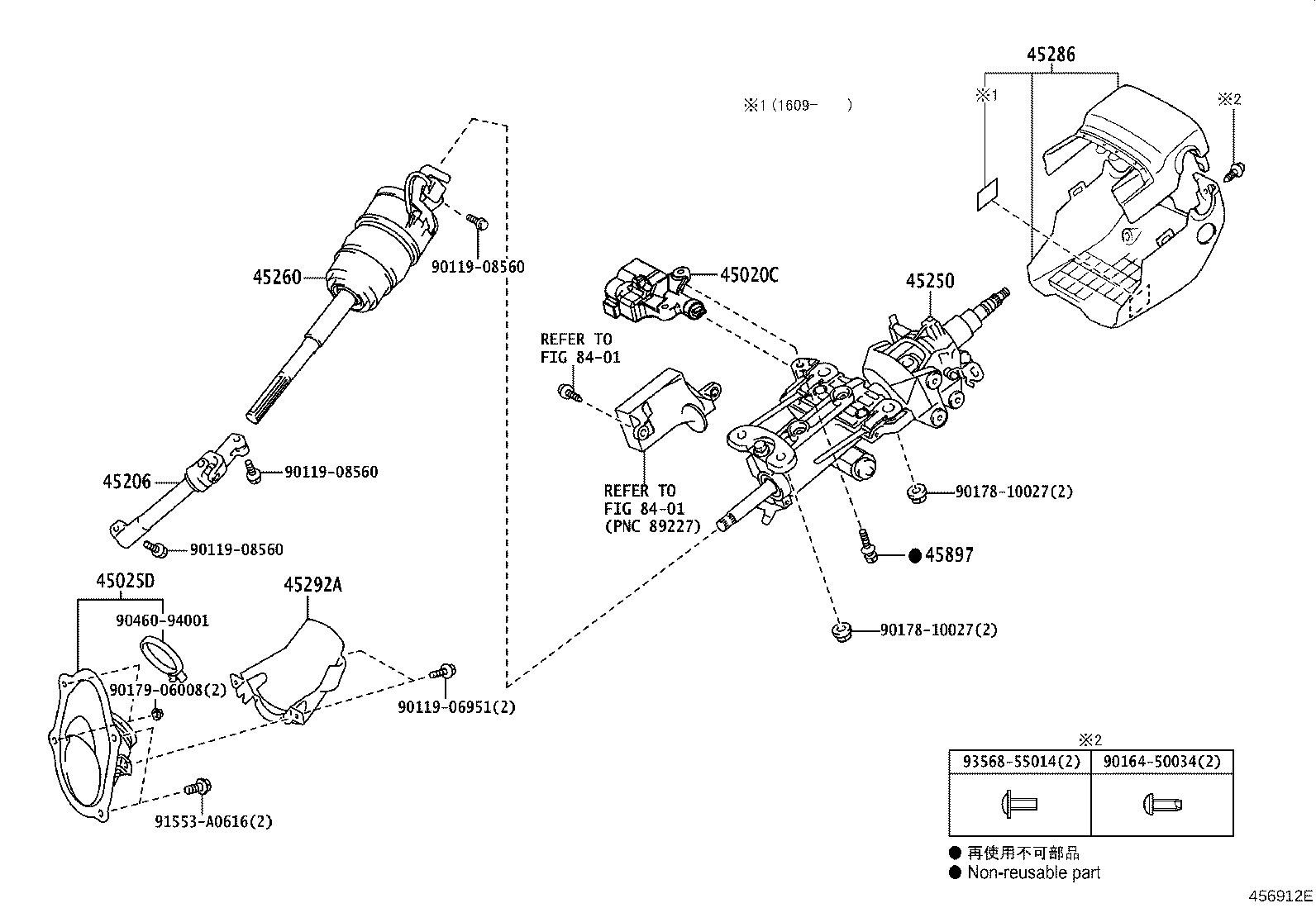

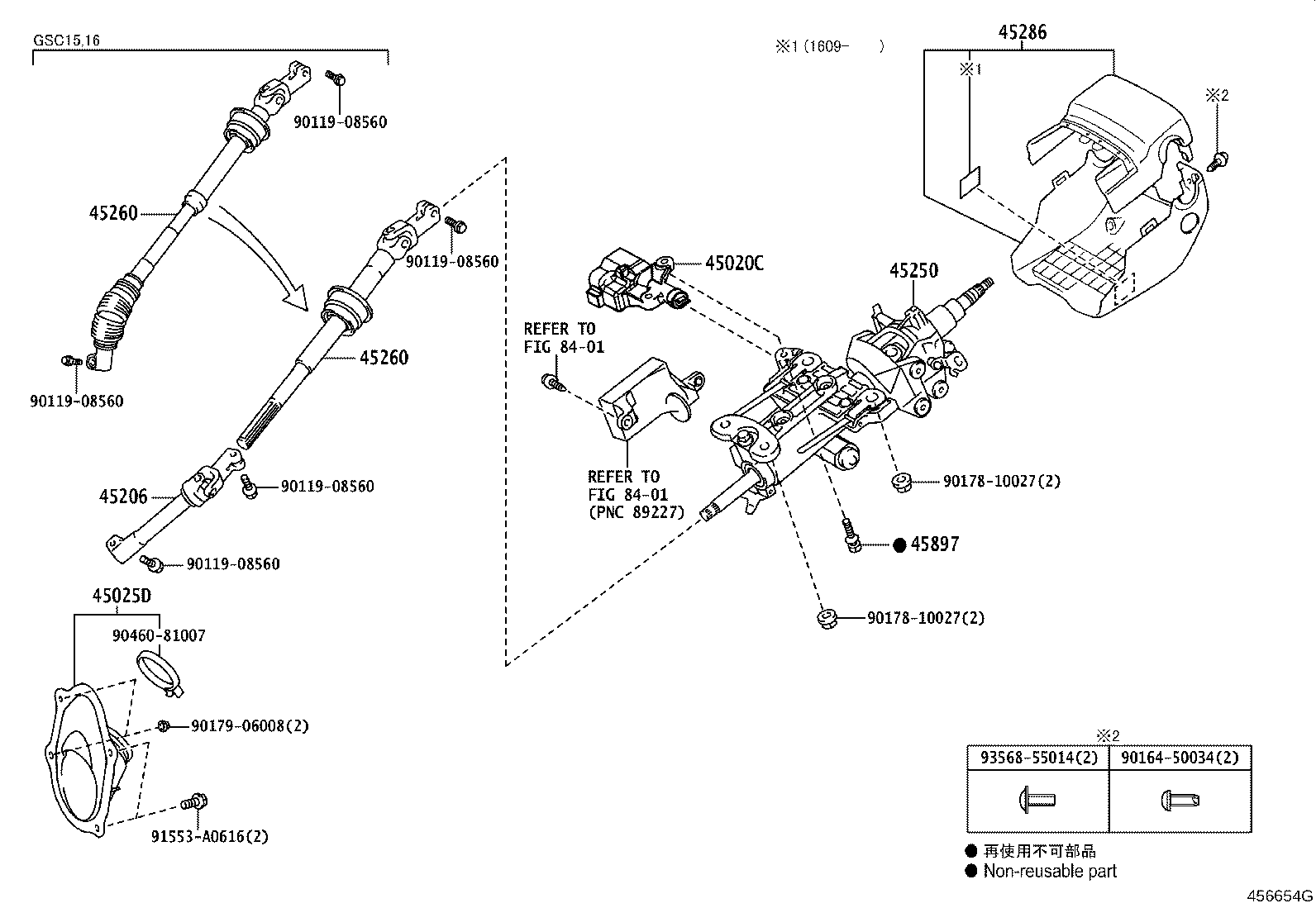

Figure 456653E 456653E 2014-09 → — Figure 456654G 456654G 2014-09 → — Figure 456912E 456912E 2014-09 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45292A Cover, Main Shaft Lower Dust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
