Toyota Lexus RC350/300/200T
2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States
Supported model
Data version 2018-10

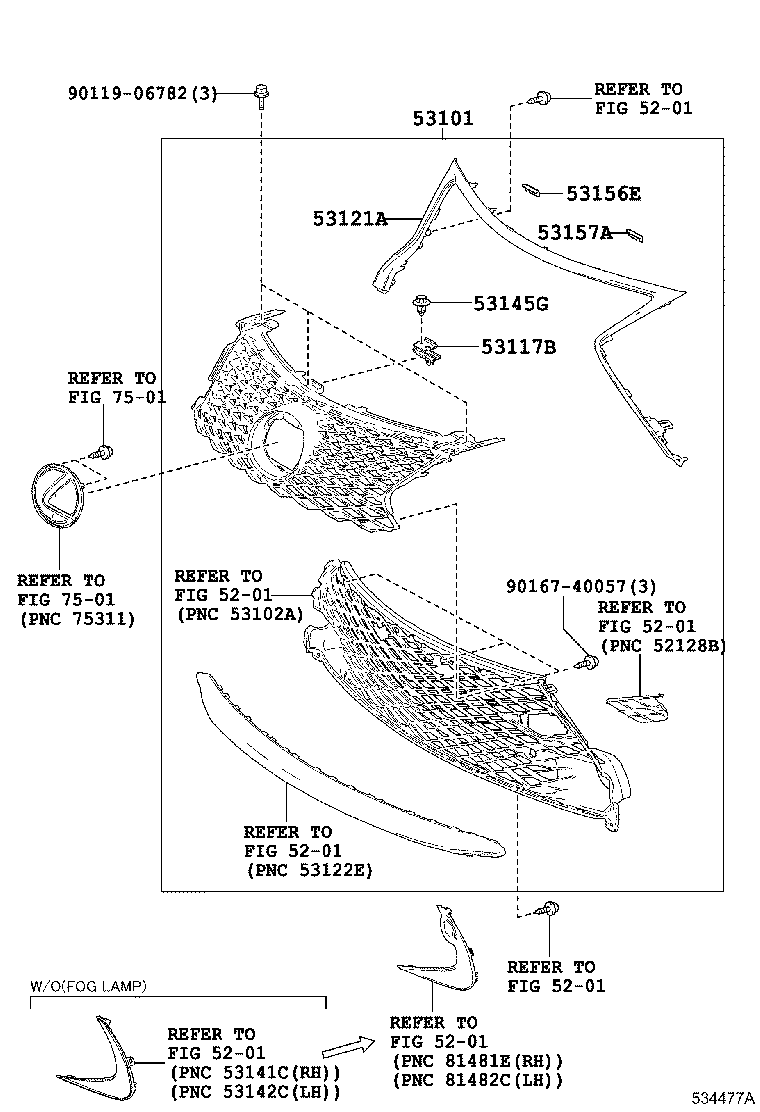

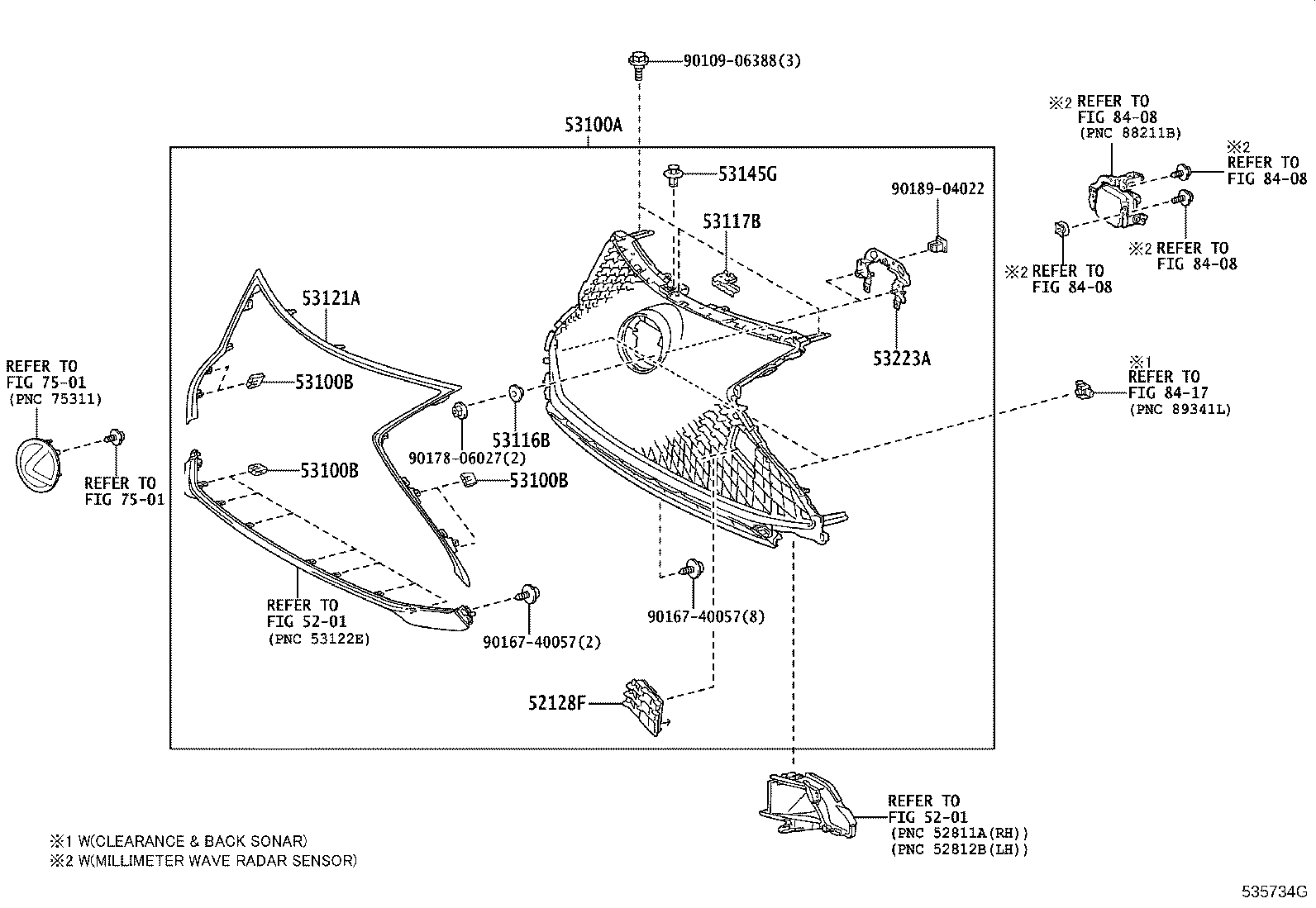

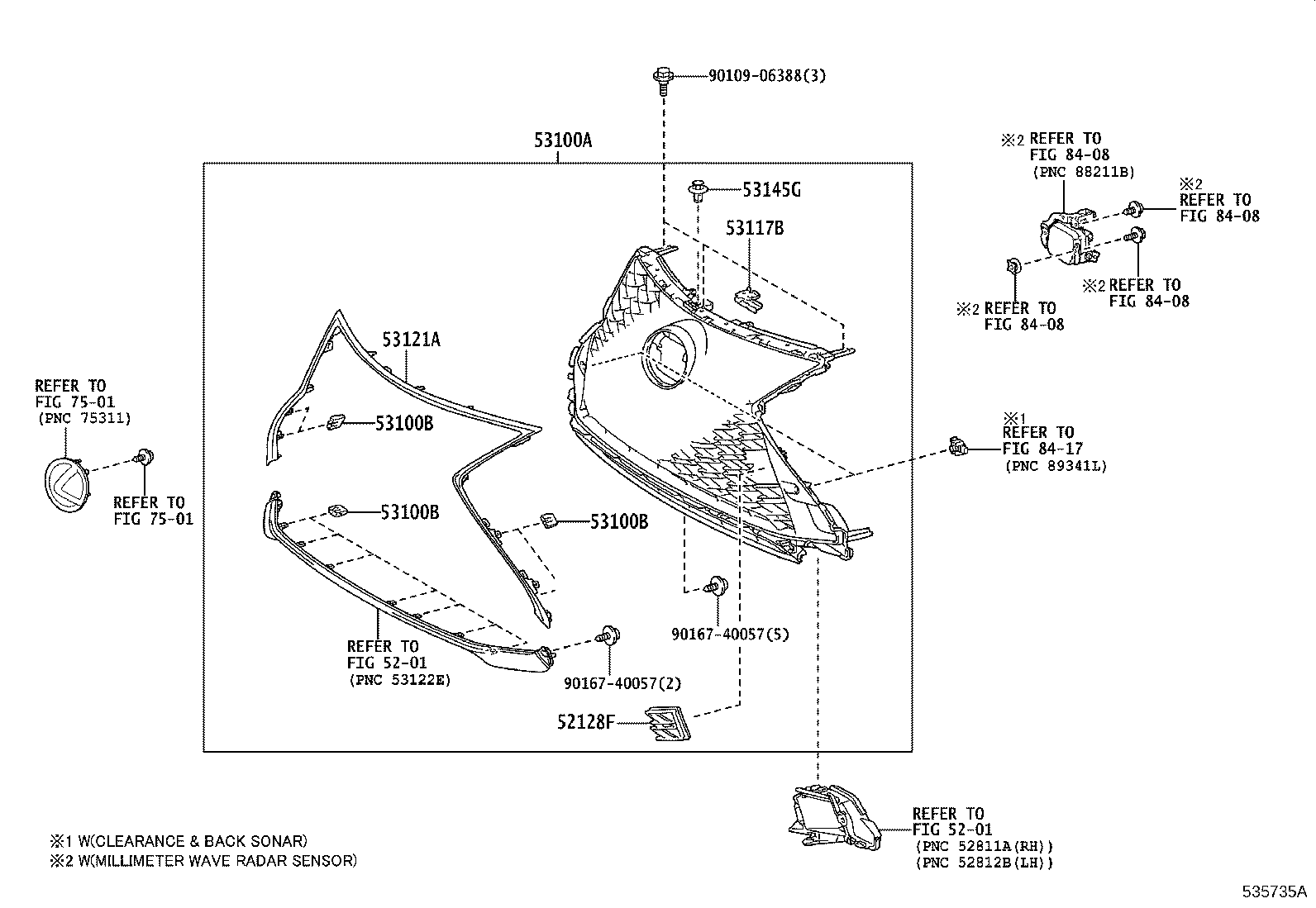

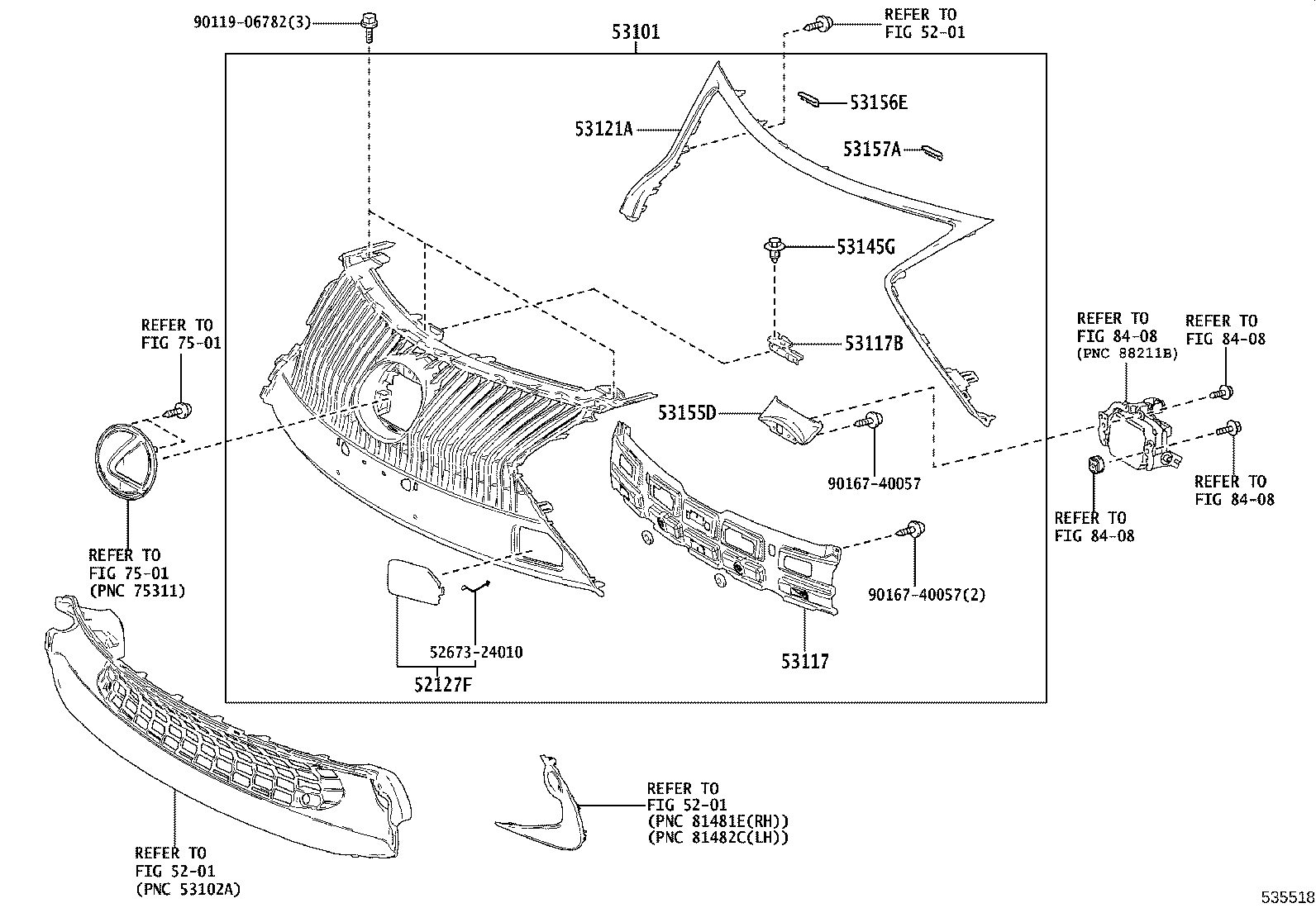

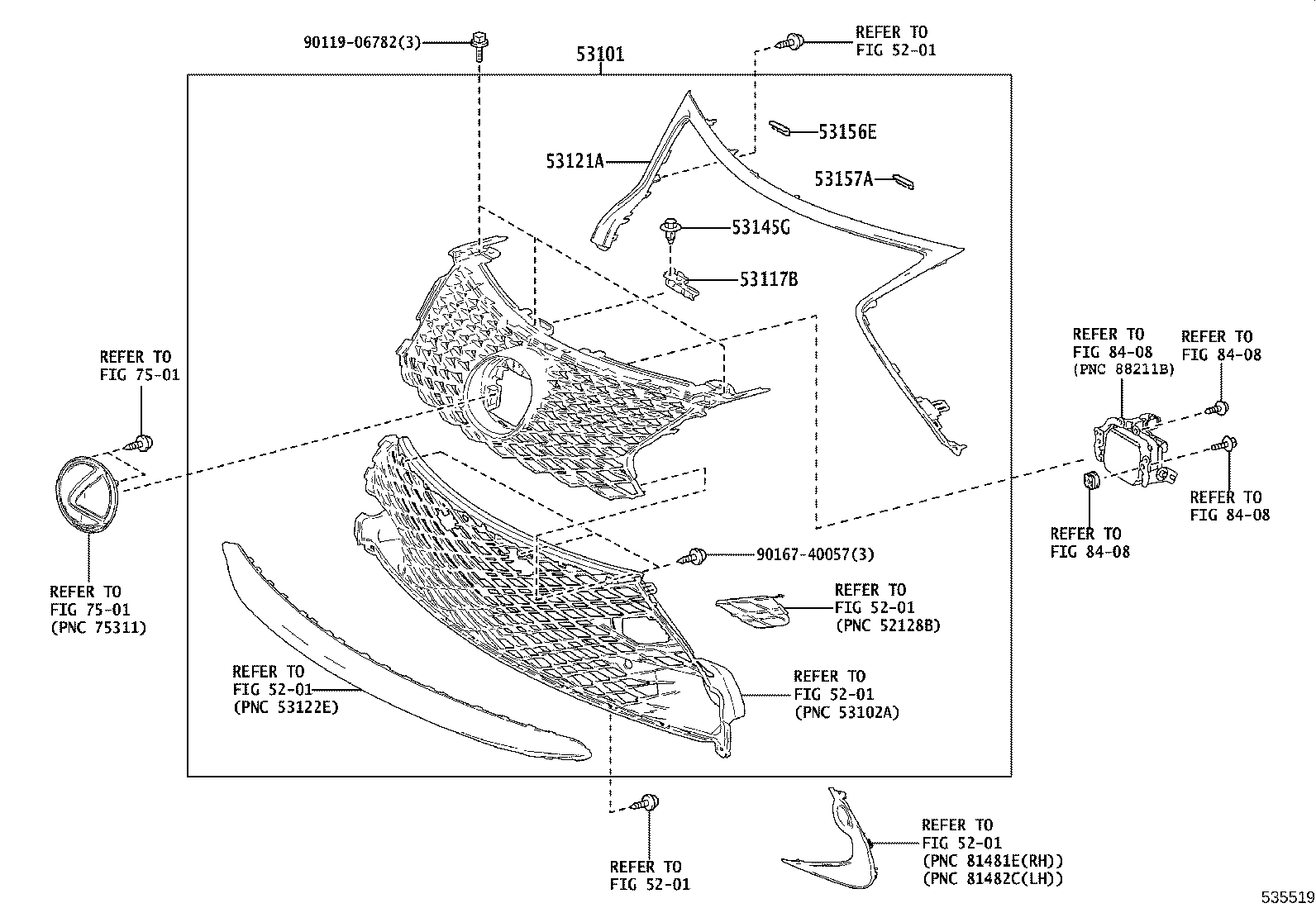

Radiator Grille
14 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52127F | Cover, Front Bumper Hole |
| 52128F | Cover, Front Bumper Hole, LH |
| 53100A | Grille Assy, Radiator |
| 53100B | Clip, Radiator Grille |
| 53101 | Grille Sub-assy, Radiator |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53117 | Bracket, Radiator Grille Support, RH |
| 53117B | Bracket, Radiator Grille, Lower |
| 53121A | Moulding, Radiator Grille |
| 53145G | Clip, Radiator Grille |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53156E | Seal, Radiator Grille, NO.2 |
| 53157A | Seal, Radiator Grille, NO.3 |
| 53223A | Bracket, Radiator Grille Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
