Toyota Lexus RC350/300/200T

2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

6 part groups · 2 illustrations

Illustrations

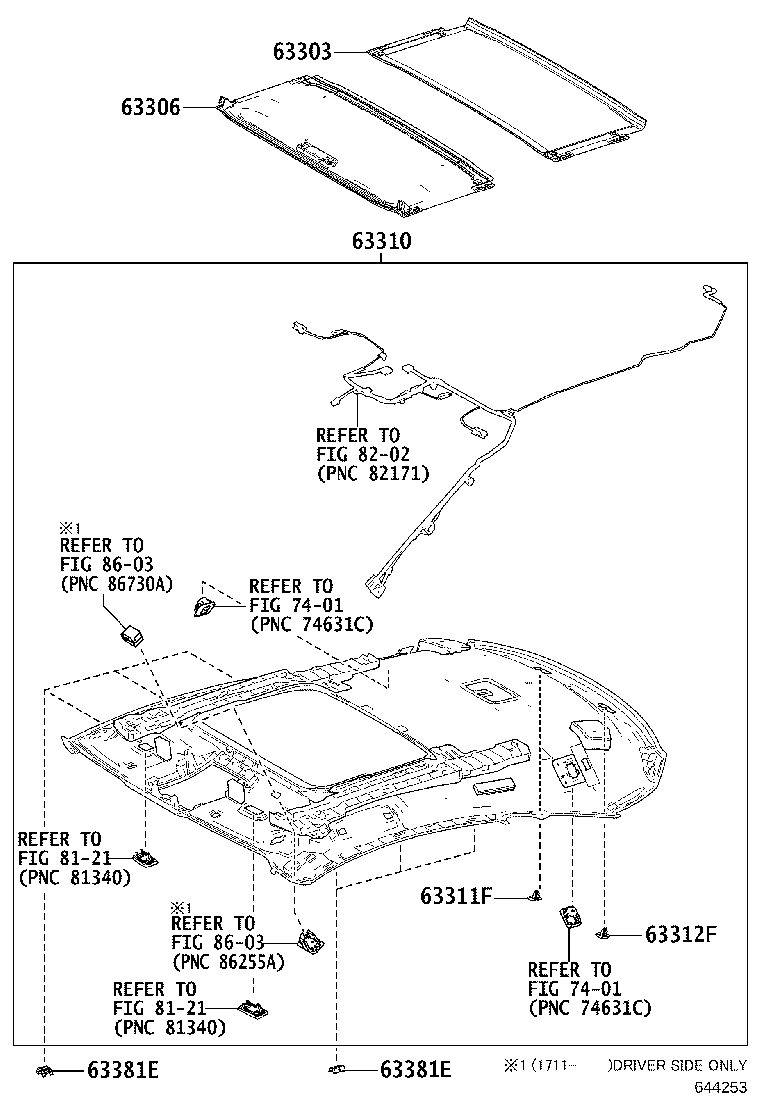

Figure 644252 644252 2014-09 → — Figure 644253 644253 2014-09 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63381E Retainer, Roof Headlining Trim, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
