Toyota Lexus RC350/300/200T
2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States
Supported model
Data version 2018-10

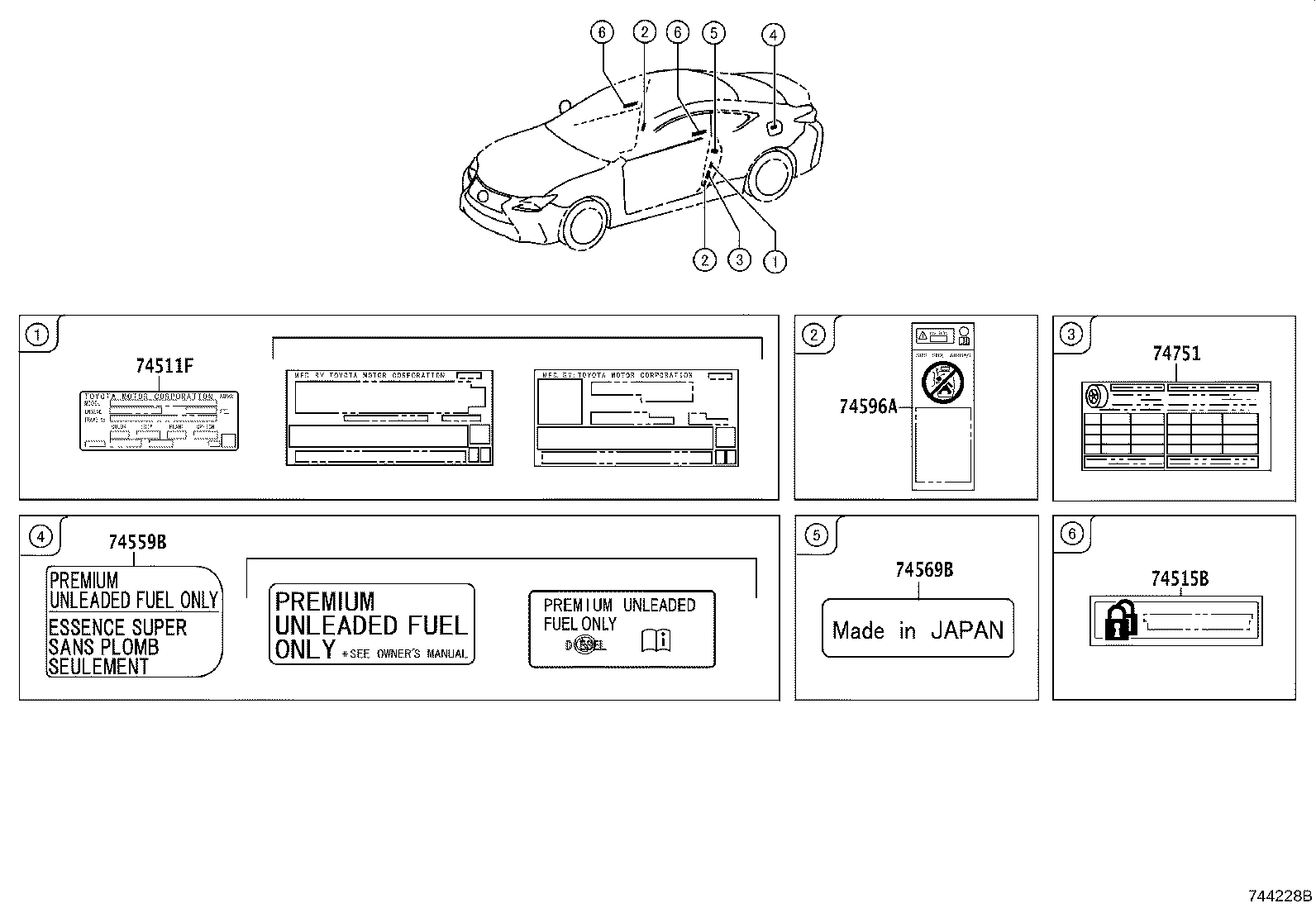

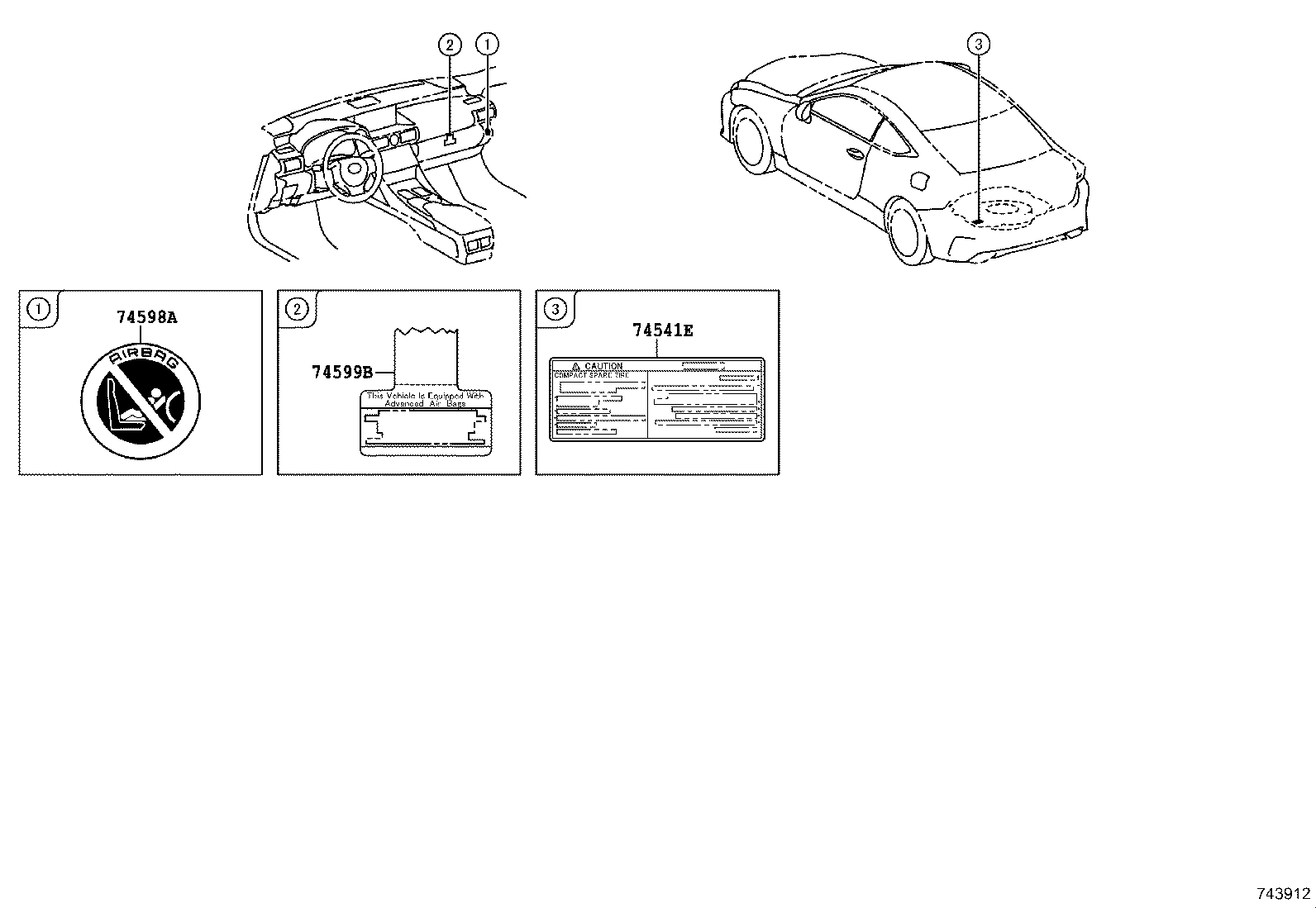

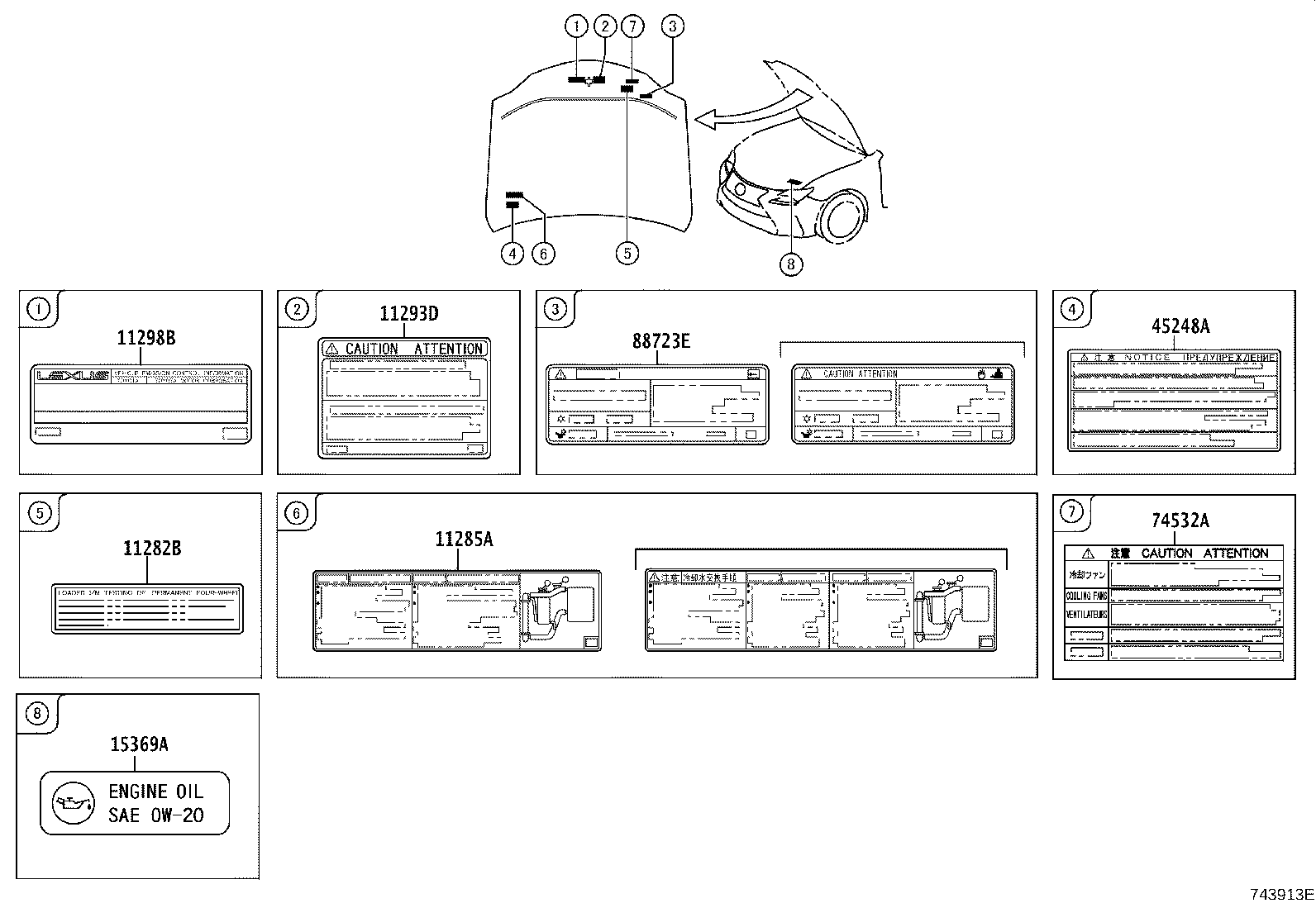

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 45248A | Label, Steering Actuator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74532A | Plate, Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74569B | Label, Vehicle Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
