Toyota Lexus RC350/300/200T

2014-09 → present · chassis ASC10,GSC1# · catalogue 245420 · United States

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 2 illustrations

Illustrations

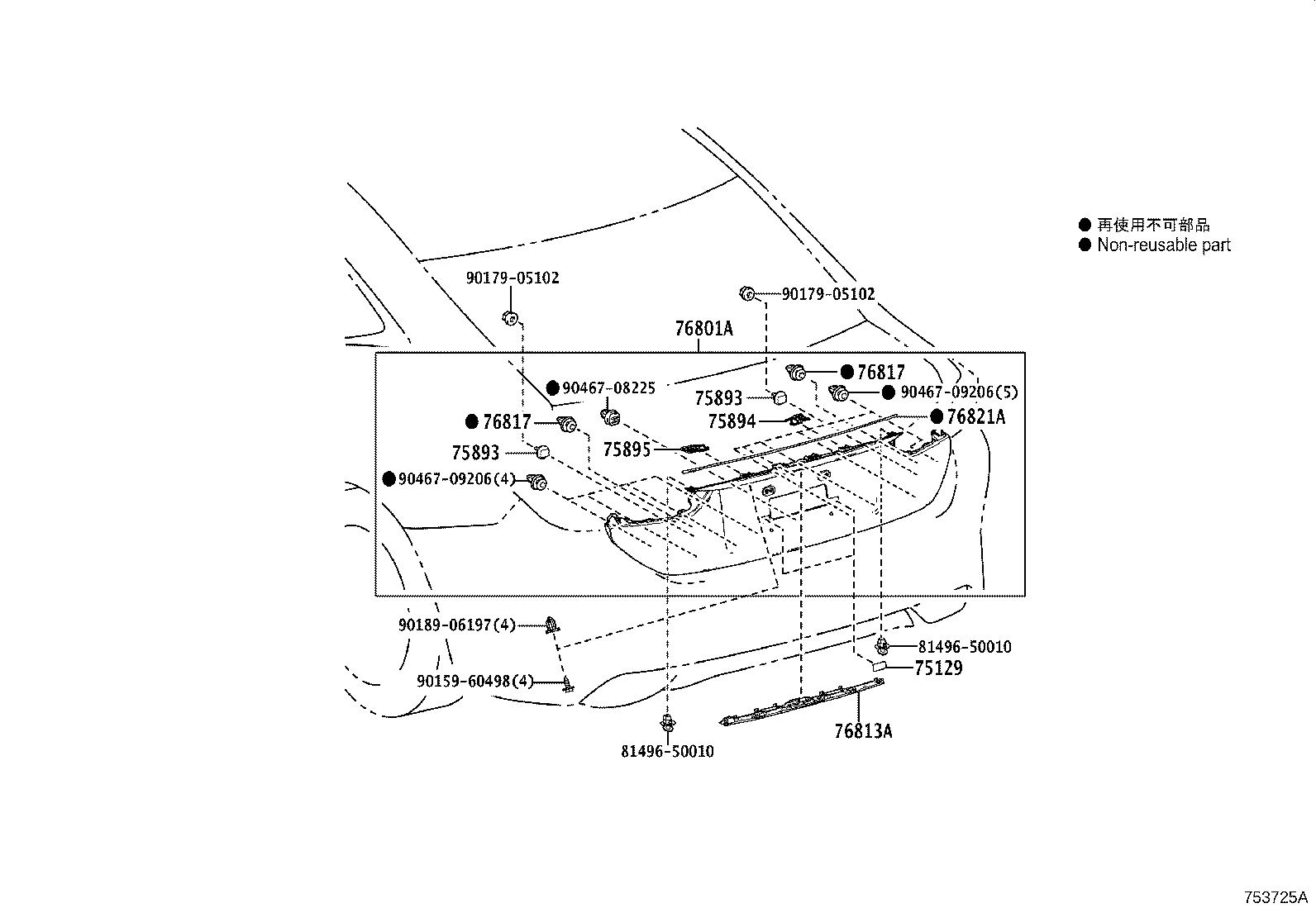

Figure 753032B 753032B 2014-09 → 2018-10 Figure 753725A 753725A 2018-10 → —

Part groups

PNCDescription
75129 Cushion, Rear License Plate
75893 Retainer, Luggage Door Moulding
75894 Retainer, Luggage Door Moulding, NO.2
75895 Retainer, Luggage Door Moulding, NO.3
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76813A Garnish, Luggage Compartment Door, Outside NO.3
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
