Toyota Lexus IS250C/350C

2009-04 → 2015-07 · chassis GSE2# · catalogue 246410 · United States

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

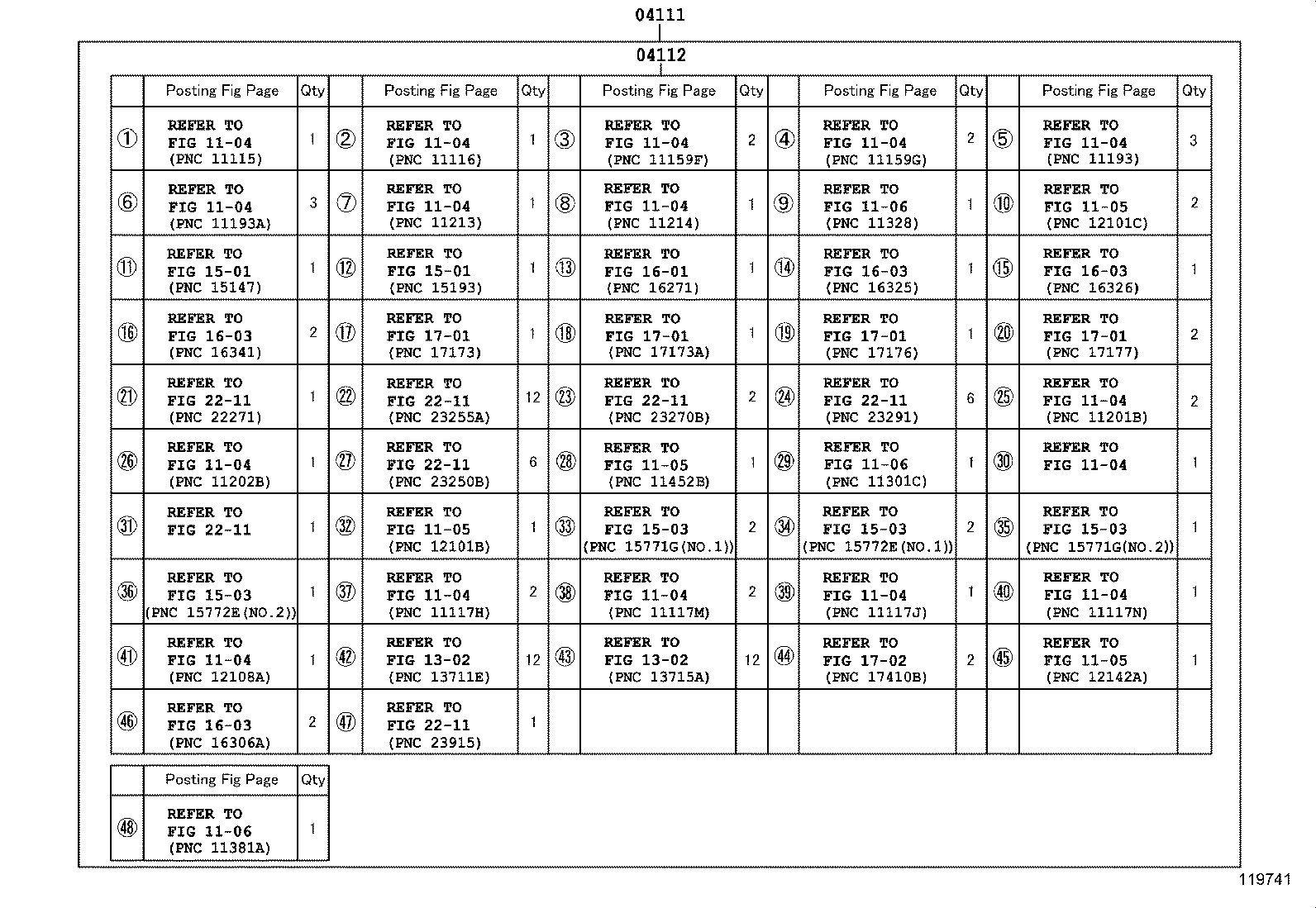

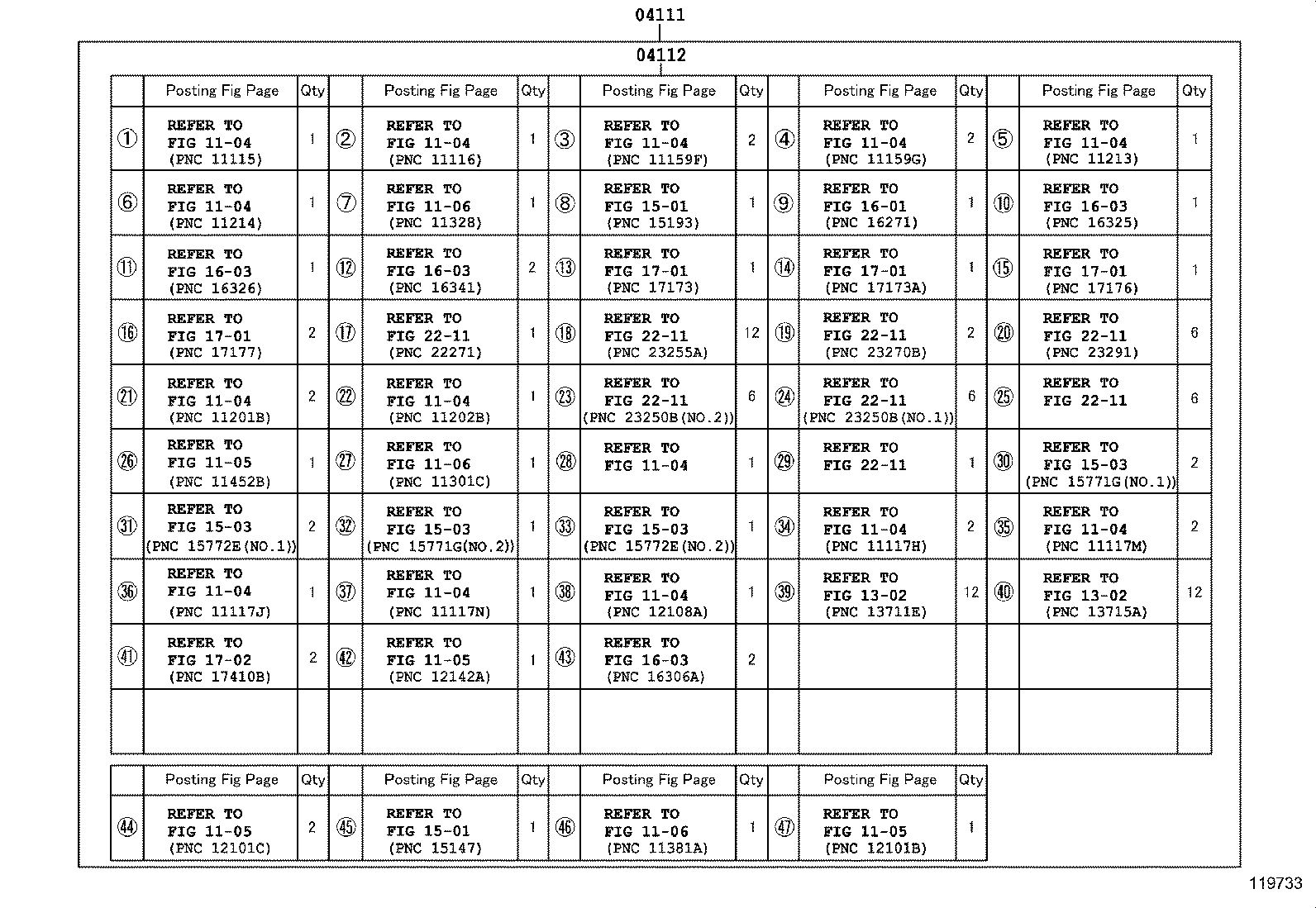

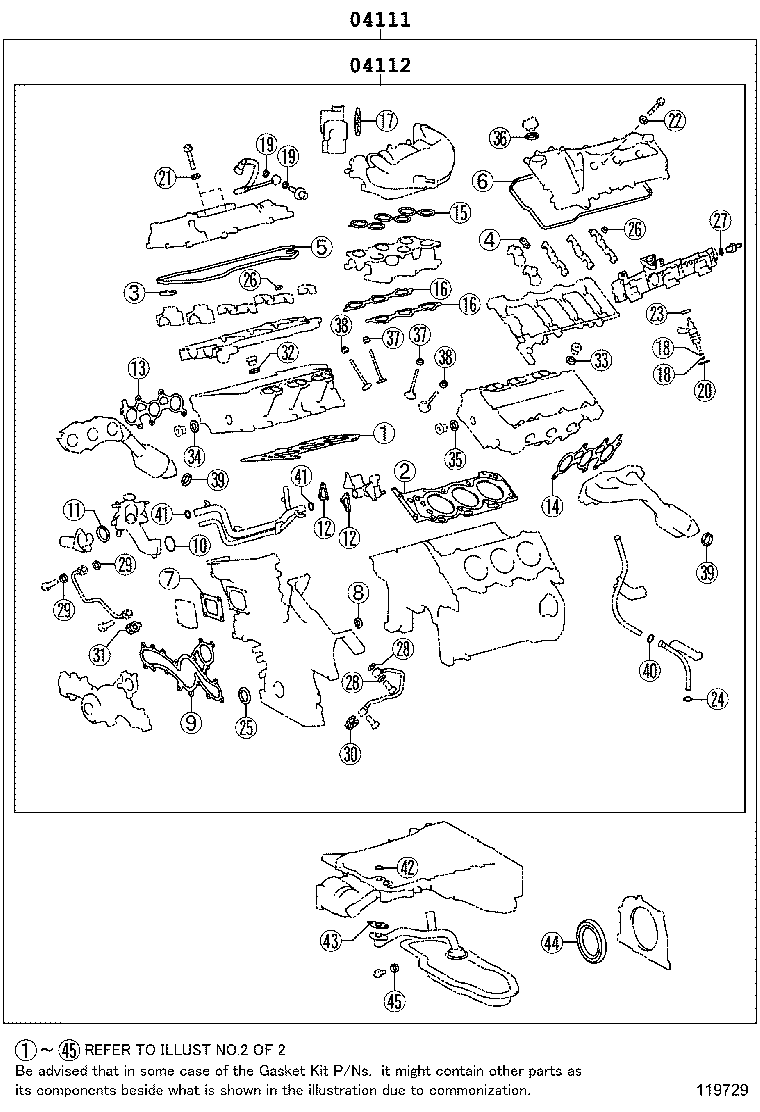

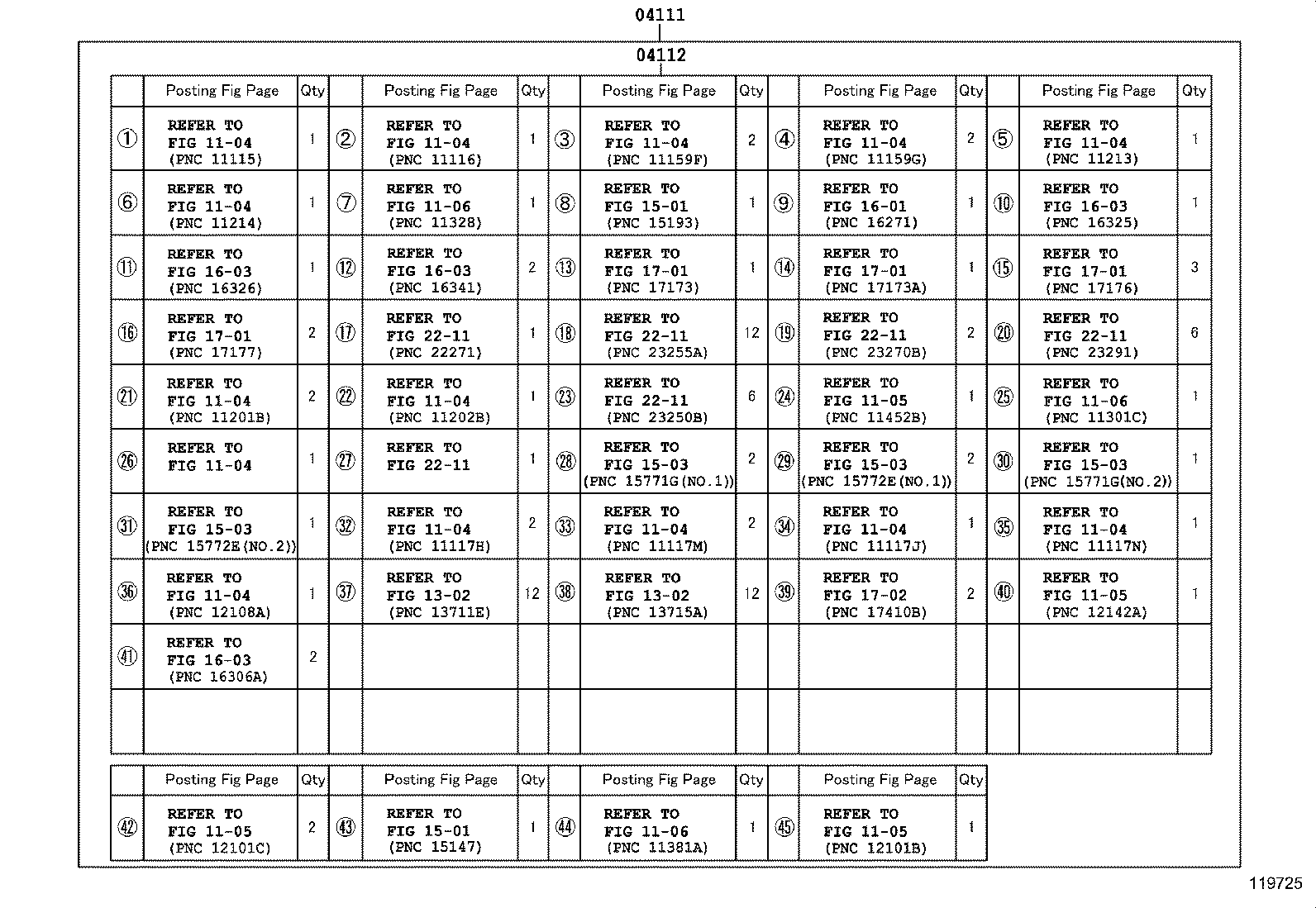

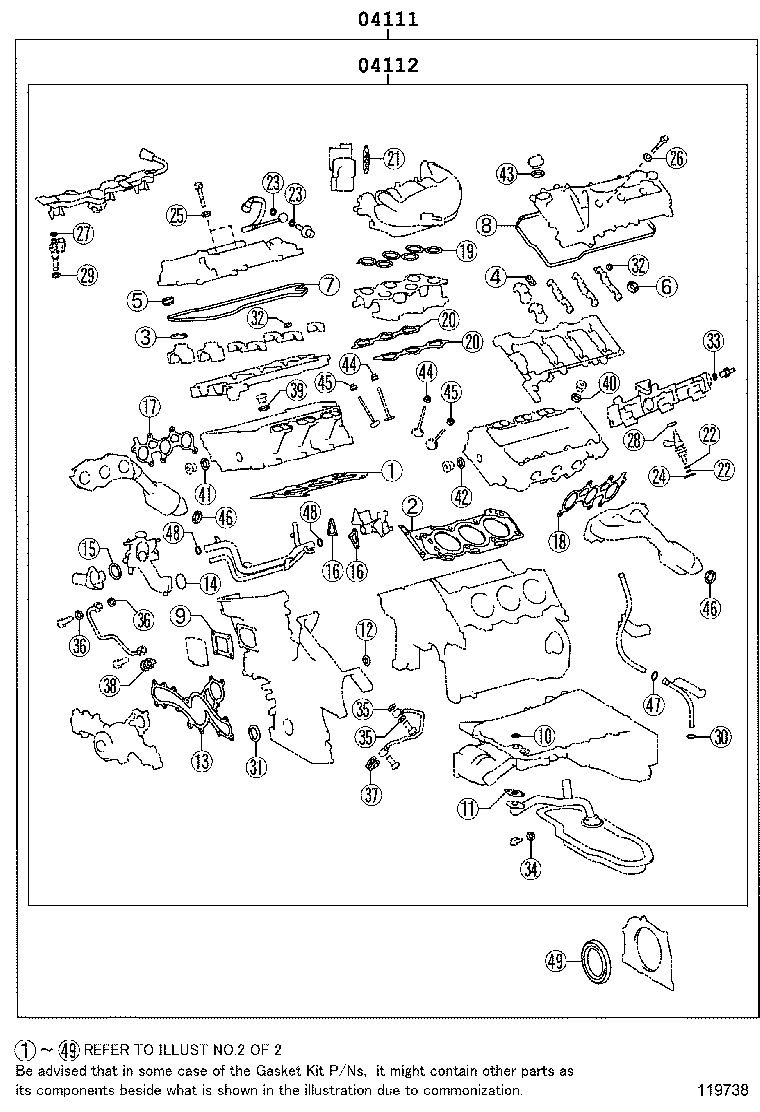

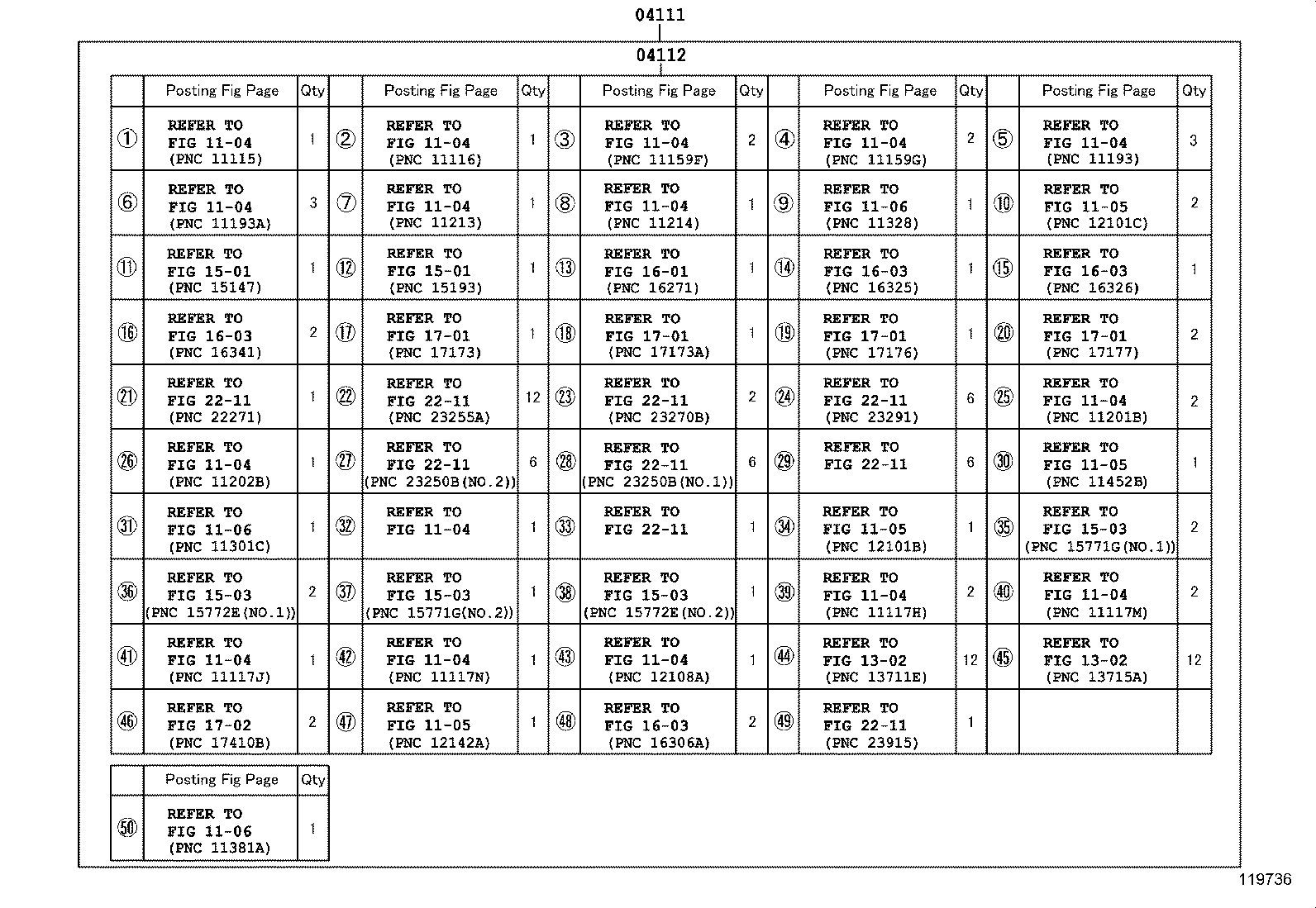

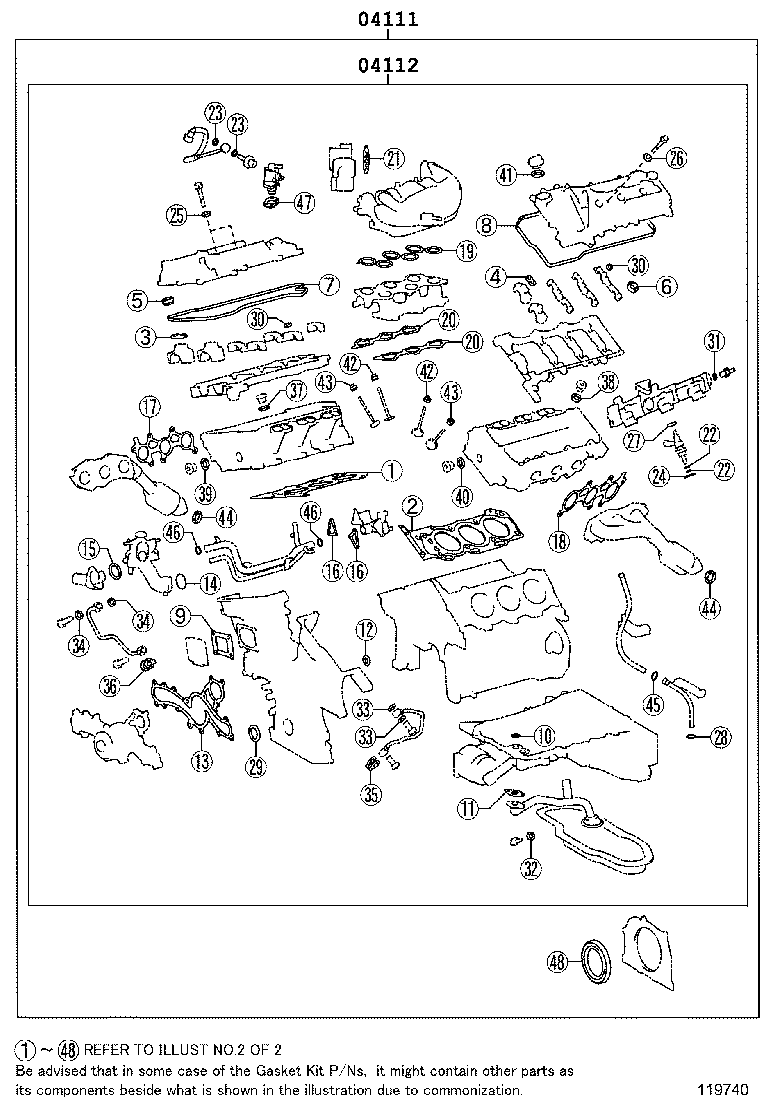

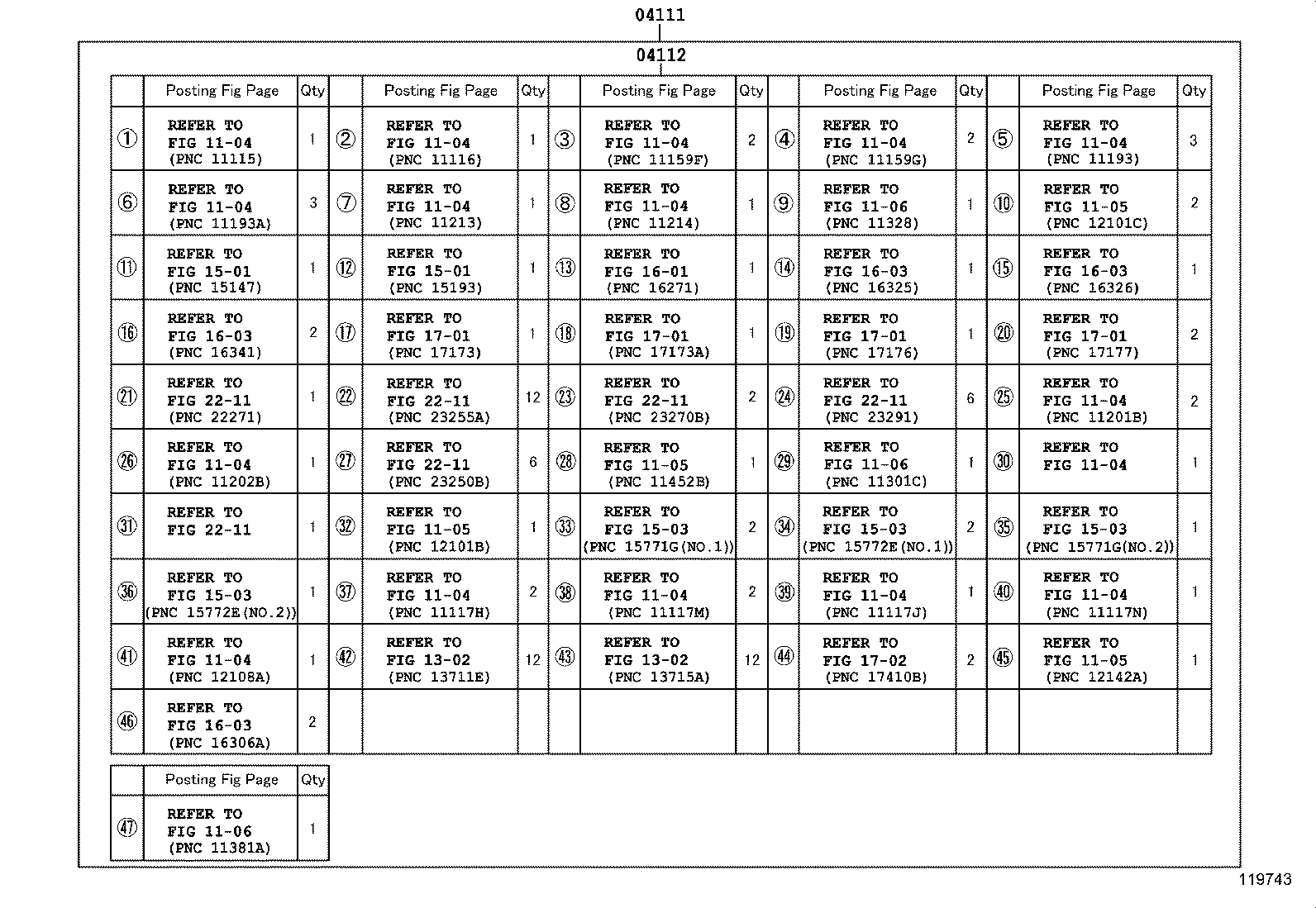

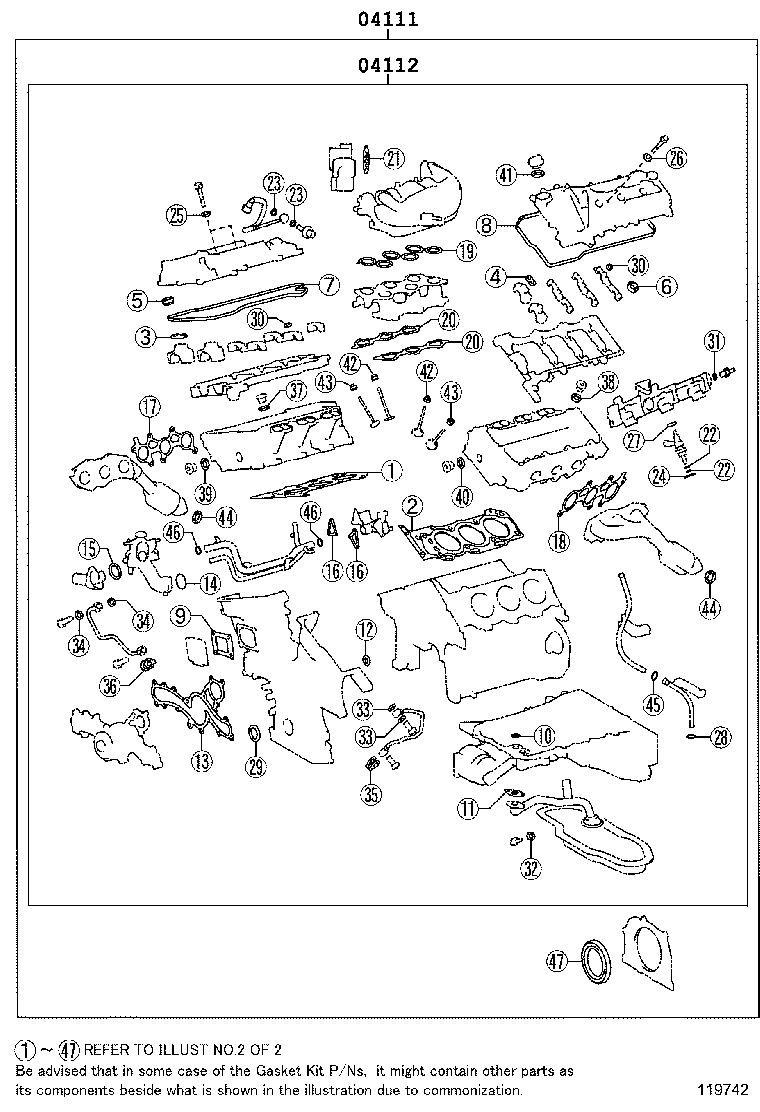

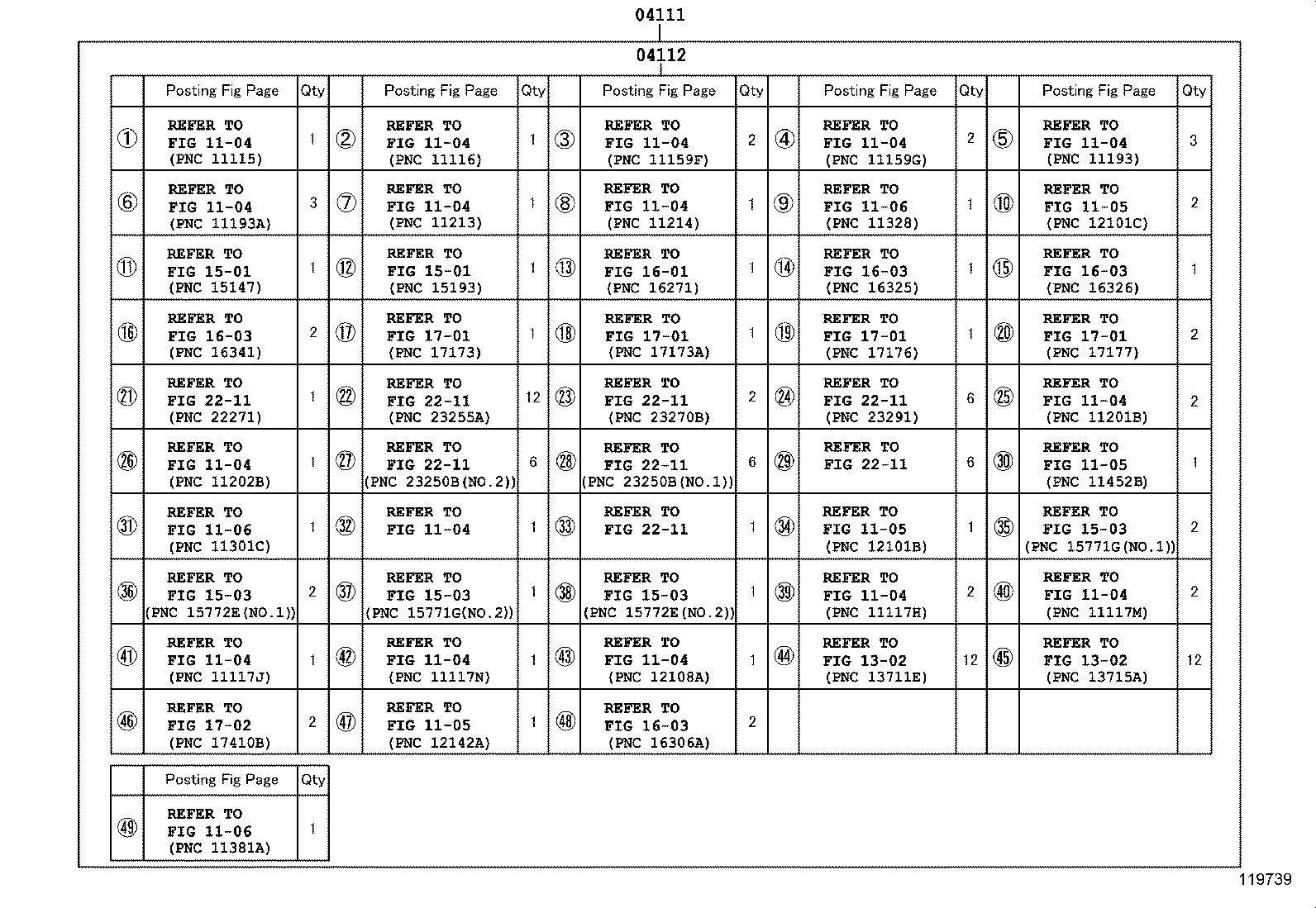

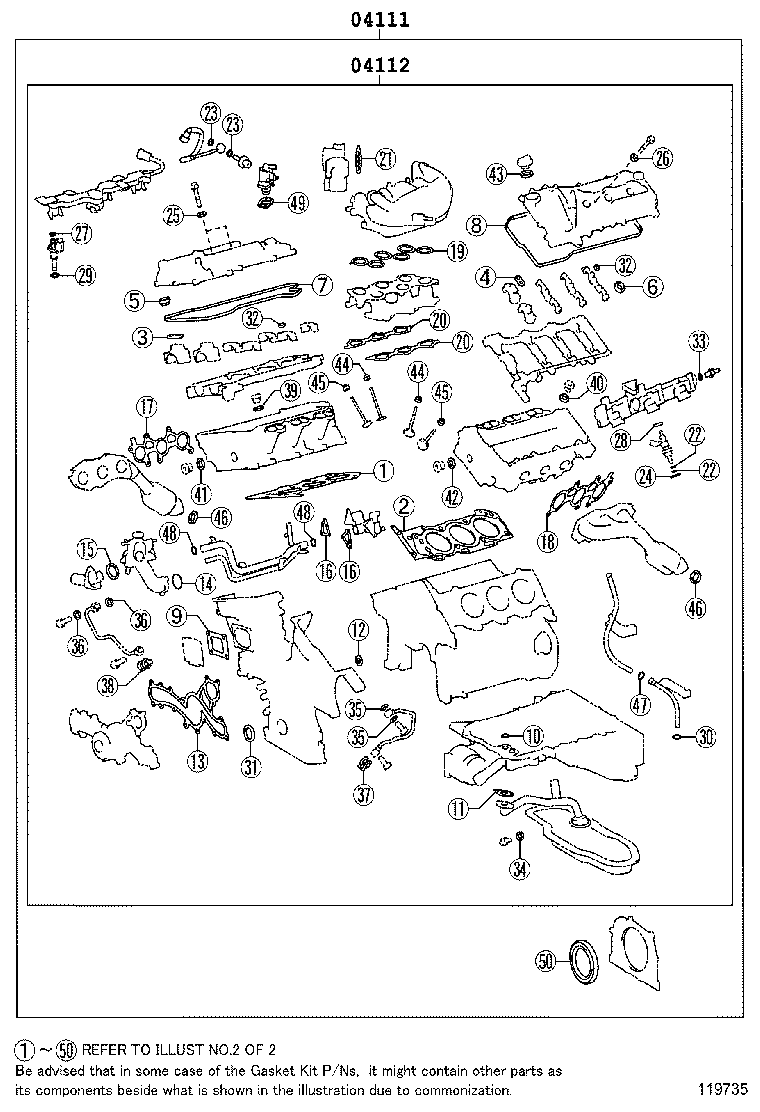

Figure 119734 119734 2009-04 → 2011-08 Figure 119733 119733 2009-04 → 2011-08 Figure 119738 119738 2011-08 → 2011-11 Figure 119739 119739 2011-08 → 2011-11 Figure 119735 119735 2011-12 → — Figure 119736 119736 2011-12 → — Figure 119729 119729 2009-04 → 2011-08 Figure 119725 119725 2009-04 → 2011-08 Figure 119742 119742 2011-08 → 2011-10 Figure 119743 119743 2011-08 → 2011-10 Figure 119740 119740 2011-10 → — Figure 119741 119741 2011-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
