Toyota Lexus IS250C/350C

2009-04 → 2015-07 · chassis GSE2# · catalogue 246410 · United States

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

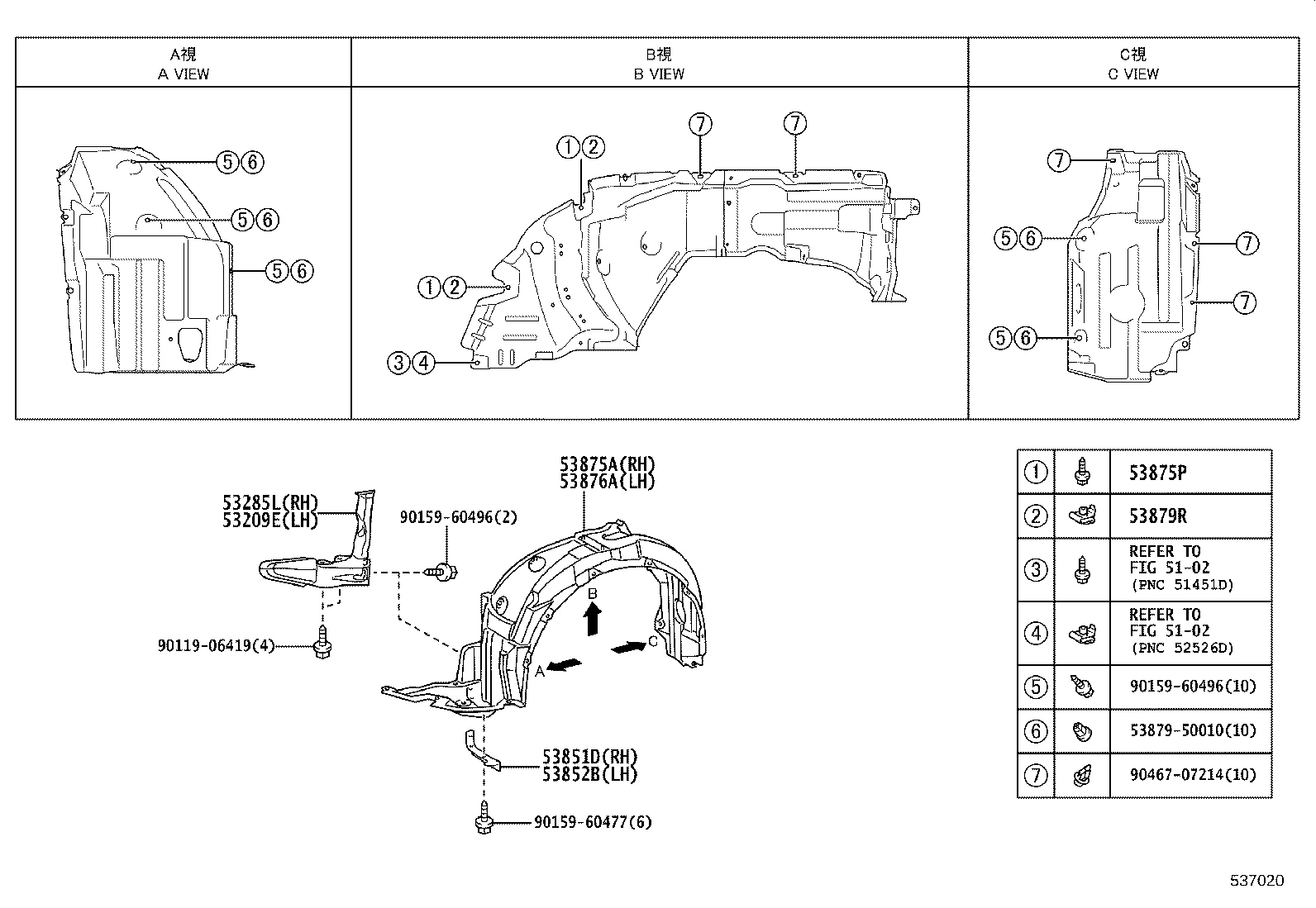

Figure 537021 537021 2009-04 → — Figure 537020A 537020A 2009-04 → —

Part groups

PNCDescription
53209E Duct Sub-assy, Cool Air Intake, NO.3
53285L Duct, Cool Air Intake, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879R Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
