Toyota Lexus IS250C/350C
2009-04 → 2015-07 · chassis GSE2# · catalogue 246410 · United States
Supported model
Data version 2016-01

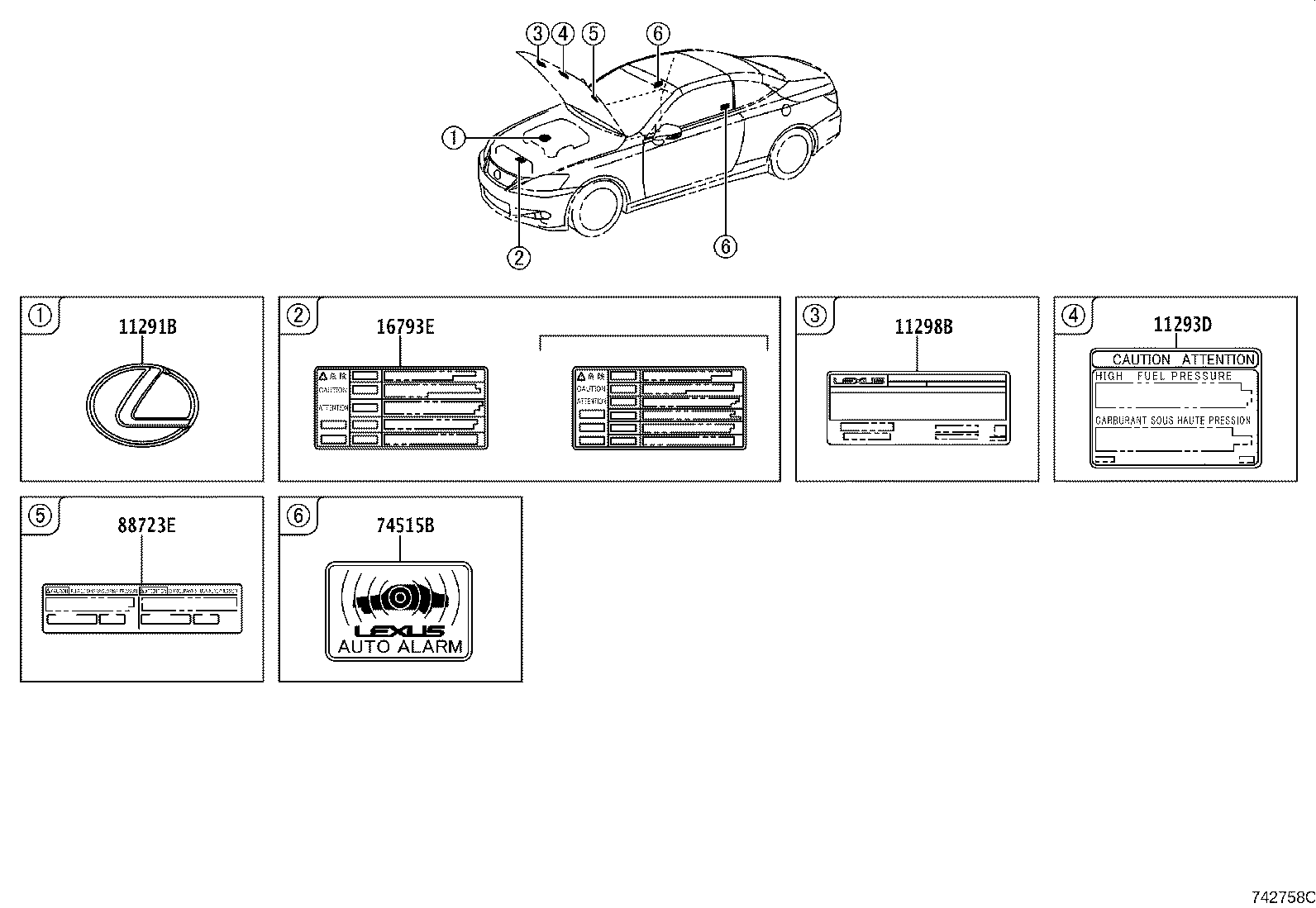

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11283B | Label, Leak Detection Pump Information |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74541C | Plate, Runflat Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
