Toyota Lexus IS250C/350C

2009-04 → 2015-07 · chassis GSE2# · catalogue 246410 · United States

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

8 part groups · 3 illustrations

Illustrations

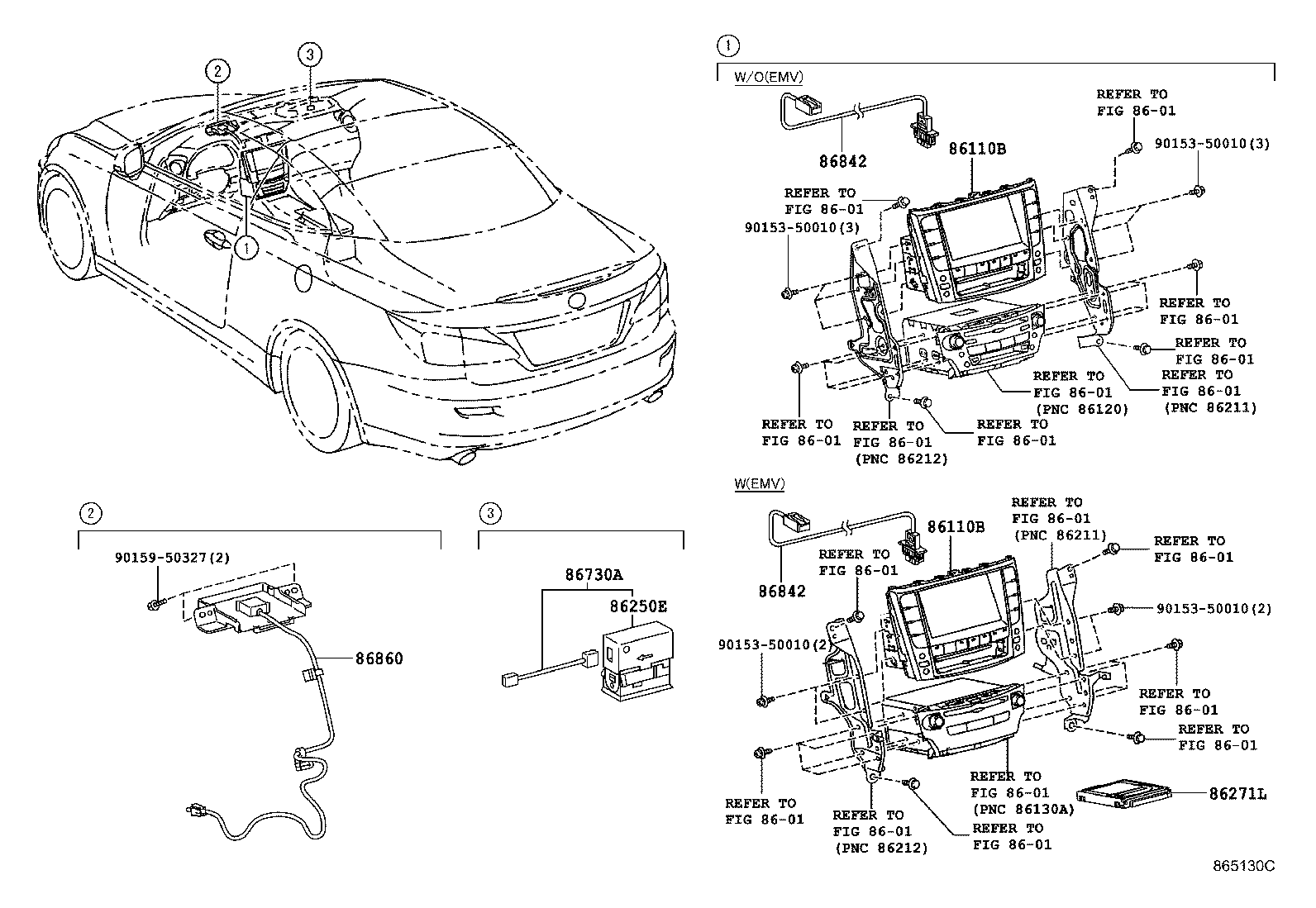

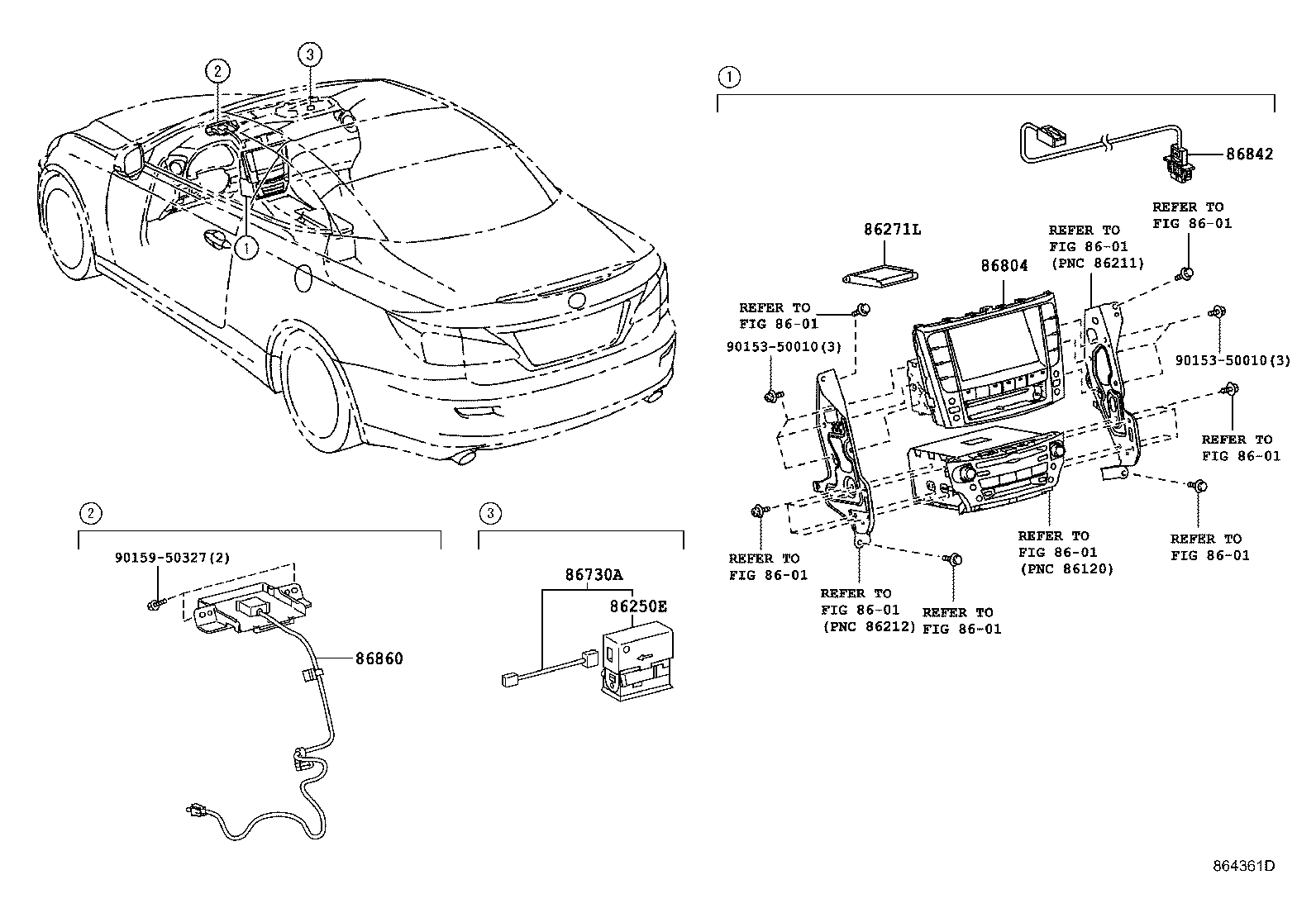

Figure 863879F 863879F 2009-04 → 2012-08 Figure 864361D 864361D 2009-04 → 2012-08 Figure 865130C 865130C 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86250E Microphone Assy, Amplifier
86271L Hard Disc
86424 Deck, Dvd
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
