Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246420 · United States
Supported model
Data version 2019-03
Caution Plate (EXTERIOR & INTERIOR)

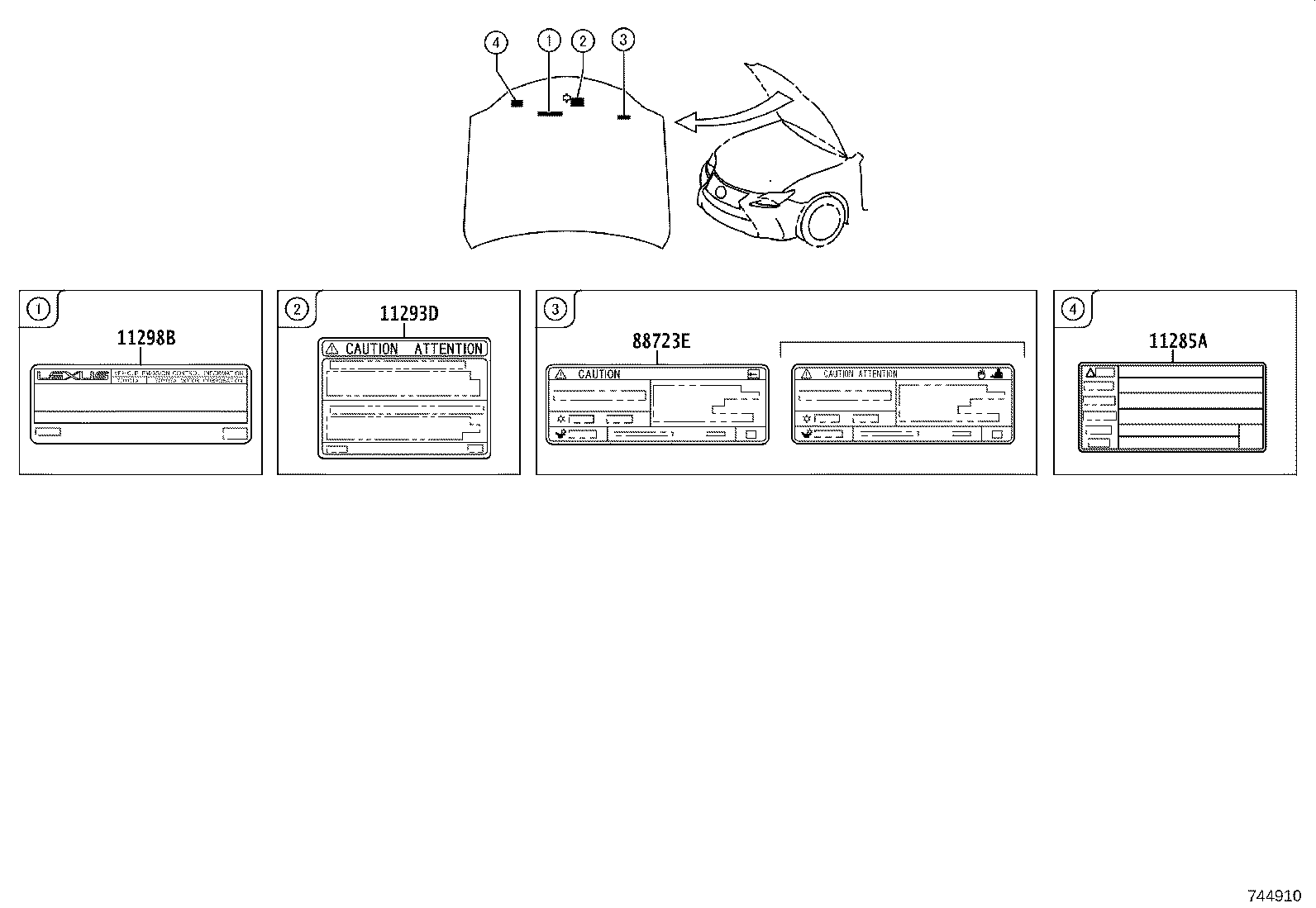

16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11285F | Label, Coolant System Caution |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 42668 | Label, Compact Spare Tire Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74569B | Label, Vehicle Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
