Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MA2936F 9017908146 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (1 parts) 17853 — INSULATOR, AIR CLEANER BRACKET (1 parts) 9165140814 — not listed in this catalogue 9017908146 — not listed in this catalogue 9461210800 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (8 parts) 17881 — HOSE, AIR CLEANER, NO.1 (3 parts) 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (3 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (8 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (8 parts) 17700T — BOLT, STUD(FOR AIR CLEANER) (1 parts) 9161140612 — not listed in this catalogue 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (2 parts) 17883 — HOSE, AIR CLEANER, NO.3 (2 parts) 17845 — GASKET, AIR CLEANER CAP (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (4 parts) 17841 — GASKET, FILTER ELEMENT (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (2 parts) 17841 — GASKET, FILTER ELEMENT (1 parts) 1709 — not listed in this catalogue

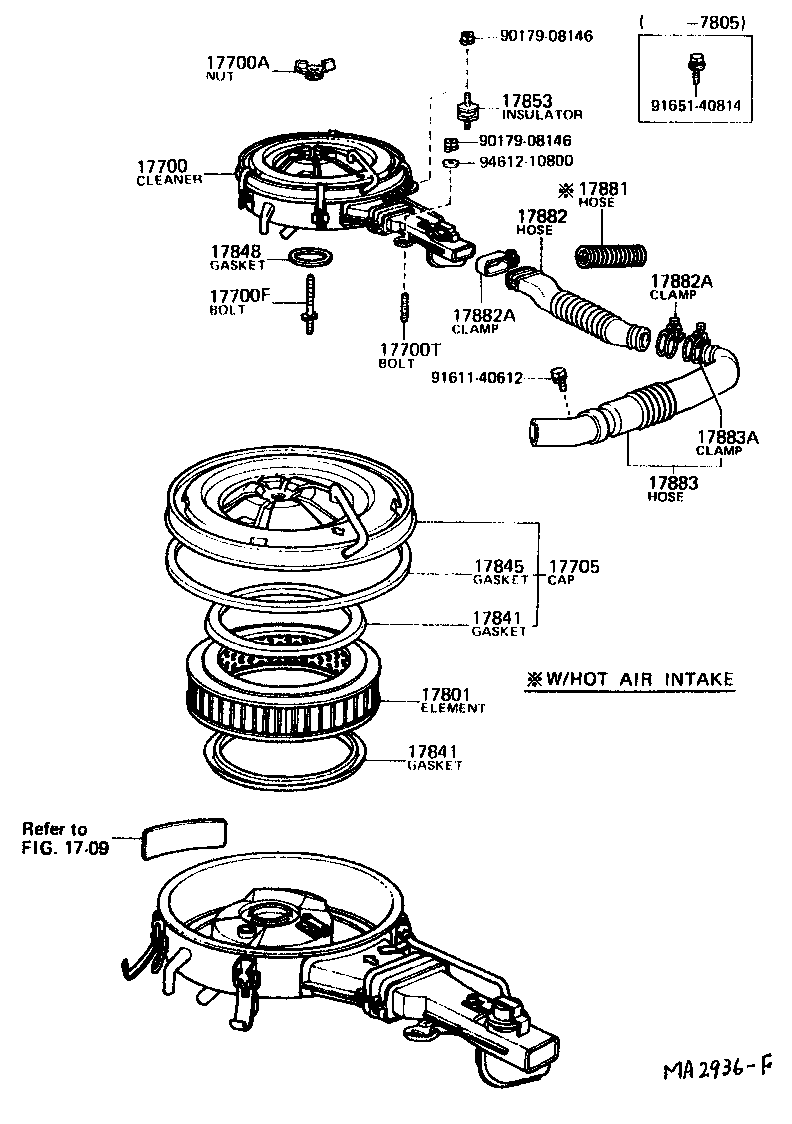

MA2936F · 17 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-35040 note Cleaner Assy, Air
1980-08 → 1981-07 ended
22R RA43 5F —
17700-35050 note Cleaner Assy, Air
1980-08 → 1981-07 ended
22R RA43 4FC —
17700-35060 note Cleaner Assy, Air
1980-08 → 1981-07 ended
22R RA43 GT —
17700-38050 note Cleaner Assy, Air
1977-08 → 1978-08 ended
20R RA42 —
17700-38060 Cleaner Assy, Air
1977-08 → 1978-08 ended
20R RA42 —
17700-38090 Cleaner Assy, Air
1978-08 → 1979-08 ended
20R RA42 —
17700-38091 Cleaner Assy, Air
1979-08 → 1980-08 ended
20R RA42 —
17700-45230 Cleaner Assy, Air
1979-01 → 1981-07 ended
4ME,5ME MA4# —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1977-08 → 1981-07 ended
20R,22R RA4# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06020 note Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1981-07 ended
22R RA43 —
90116-06280 note Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1980-08 ended
20R RA42 —
17700T — Bolt, Stud(FOR AIR CLEANER)
90116-08033 note Bolt, Stud(FOR AIR CLEANER)
1978-05 → 1981-07 ended
20R,22R RA4# —
17705 — Cap Sub-assy, Air Cleaner
17705-35030 note Cap Sub-assy, Air Cleaner
1980-08 → 1981-07 ended
22R RA43 —
17705-35040 note Cap Sub-assy, Air Cleaner
1980-08 → 1981-07 ended
22R RA43 GT —
17705-38020 Cap Sub-assy, Air Cleaner
1977-08 → 1979-08 ended
20R RA42 —
17705-38060 Cap Sub-assy, Air Cleaner
1979-08 → 1980-08 ended
20R RA42 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-41090 Element Sub-assy, Air Cleaner Filter
1977-08 → 1981-07 ended
20R,22R RA4# —
17801-45010 Element Sub-assy, Air Cleaner Filter
1979-01 → 1981-07 ended
4ME,5ME MA4# —
17841 — Gasket, Filter Element
17841-41050 Gasket, Filter Element
1977-08 → 1981-07 ended
20R,22R RA4# —
17845 — Gasket, Air Cleaner Cap
17845-35010 Gasket, Air Cleaner Cap
1980-08 → 1981-07 ended
22R RA43 —
17845-38011 Gasket, Air Cleaner Cap
1977-08 → 1980-08 ended
20R RA42 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-35010 Gasket, Air Cleaner TO Carburetor
1980-08 → 1981-07 ended
22R RA43 —
90430-72003 Gasket, Air Cleaner TO Carburetor
1978-08 → 1980-08 ended
20R RA42 —
90430-72114 Gasket, Air Cleaner TO Carburetor
1977-08 → 1978-08 ended
20R RA42 —
17853 — Insulator, Air Cleaner Bracket
17853-38010 Insulator, Air Cleaner Bracket
1977-08 → 1981-07 ended
20R,22R RA4# —
17881 — Hose, Air Cleaner, NO.1
17881-26010 note Hose, Air Cleaner, NO.1
1977-08 → 1980-08 ended
20R RA42 —
17881-37030 Hose, Air Cleaner, NO.1
1980-08 → 1981-07 ended
22R RA43 —
17881-41051 Hose, Air Cleaner, NO.1
1979-01 → 1981-07 ended
4ME,5ME MA4# —
17882 — Hose, Air Cleaner, NO.2
17882-38030 Hose, Air Cleaner, NO.2
1977-08 → 1980-08 ended
20R RA42 —
17882-38031 Hose, Air Cleaner, NO.2
1980-08 → 1981-07 ended
22R RA43 —
17882-41080 Hose, Air Cleaner, NO.2
1979-01 → 1981-07 ended
4ME,5ME MA4# —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1980-08 ended
20R RA42 —
90460-01015 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-07 ended
22R RA43 —
90460-01016 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-07 ended
22R RA43 —
90460-58004 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-12 → 1980-08 ended
20R RA42 —
90460-58013 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1978-08 → 1978-12 ended
20R RA42 —
96111-10560 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1977-08 → 1978-08 ended
20R RA42 —
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1981-07 ended
4ME,5ME MA4# —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-01 → 1981-07 ended
4ME,5ME MA4# —
17883 — Hose, Air Cleaner, NO.3
17883-26020 Hose, Air Cleaner, NO.3
1977-08 → 1980-08 ended
20R RA42 —
17883-26030 Hose, Air Cleaner, NO.3
1980-08 → 1981-07 ended
22R RA43 —
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
90460-01015 Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-08 → 1981-07 ended
22R RA43 —
90460-60001 Clamp(FOR AIR CLEANER HOSE, NO.3)
1977-08 → 1980-08 ended
20R RA42 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
