Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Short Block Assembly

1 part groups · 2 illustrations

Illustrations

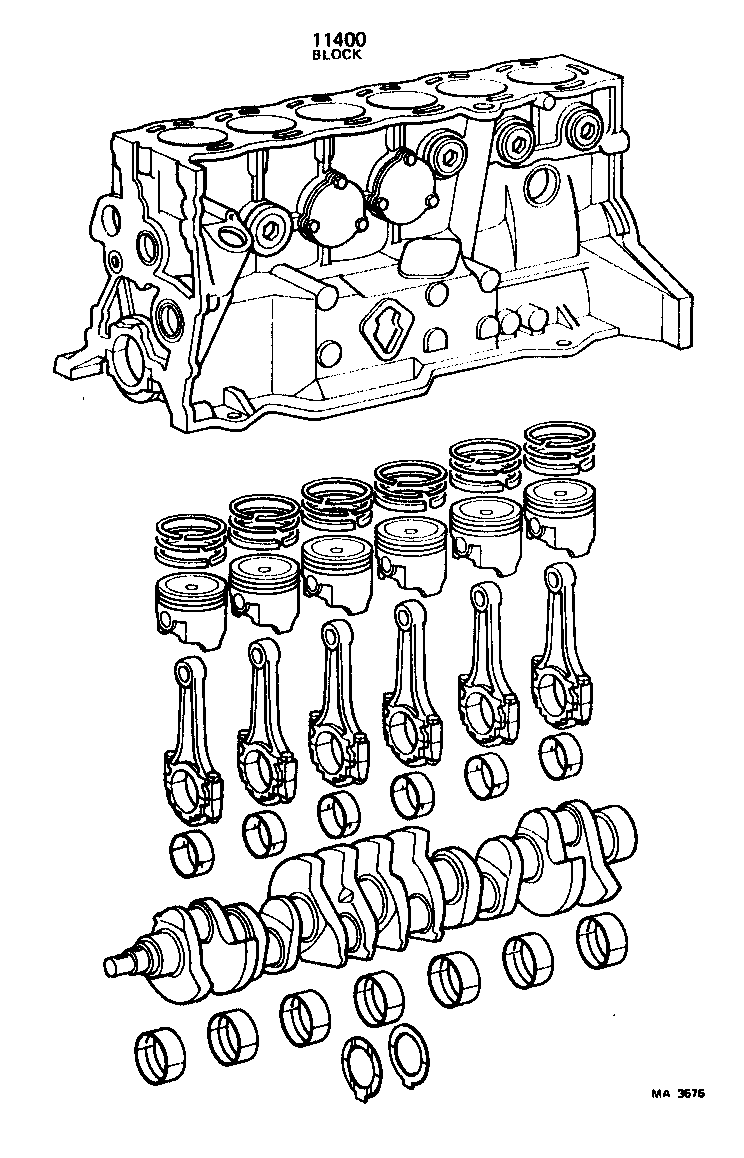

Figure MA1385C MA1385C 1977-08 → — Figure MA3676 MA3676 1979-01 → —

Part groups

PNCDescription
11400 Block Assy, Short
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
