Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01

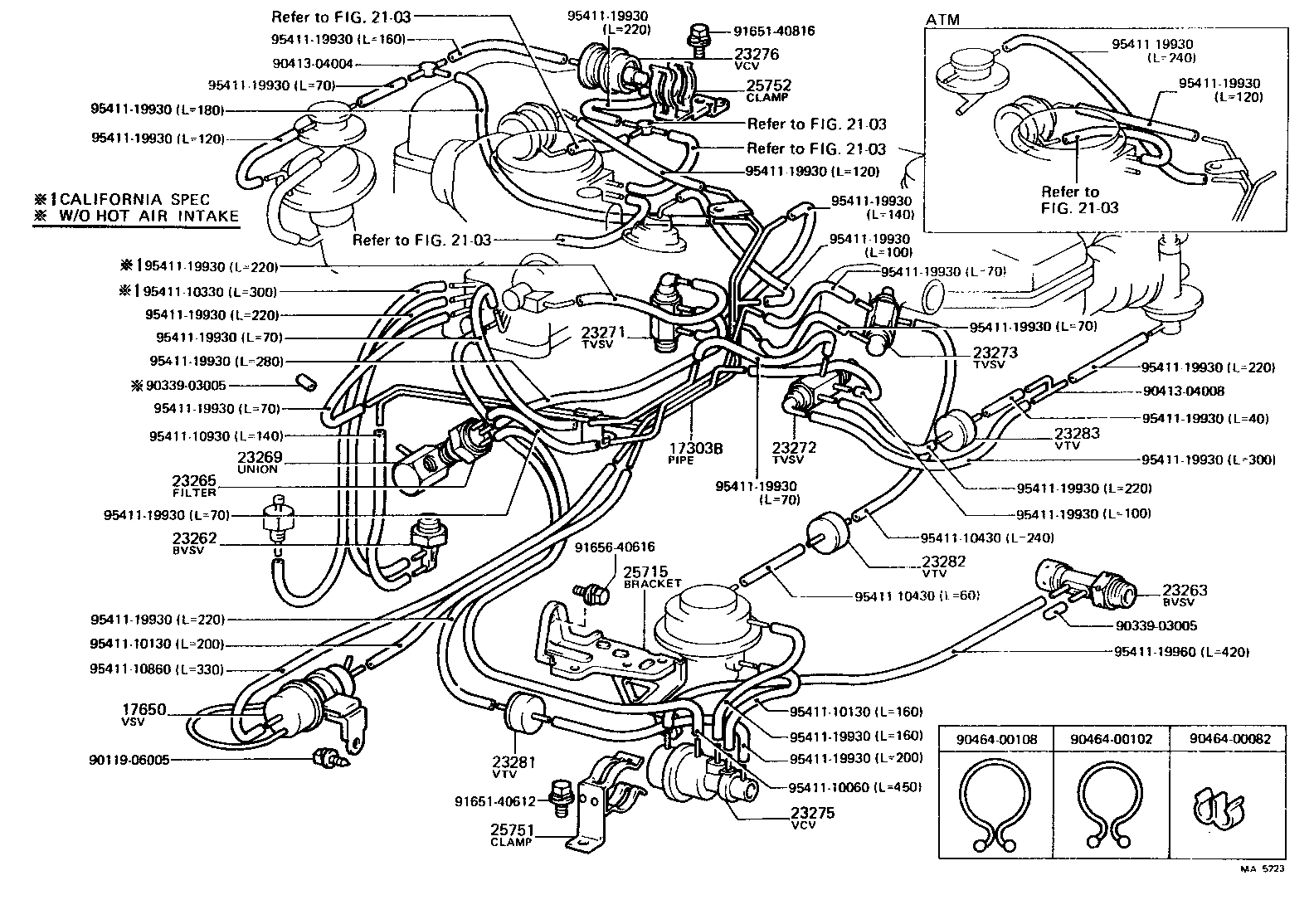

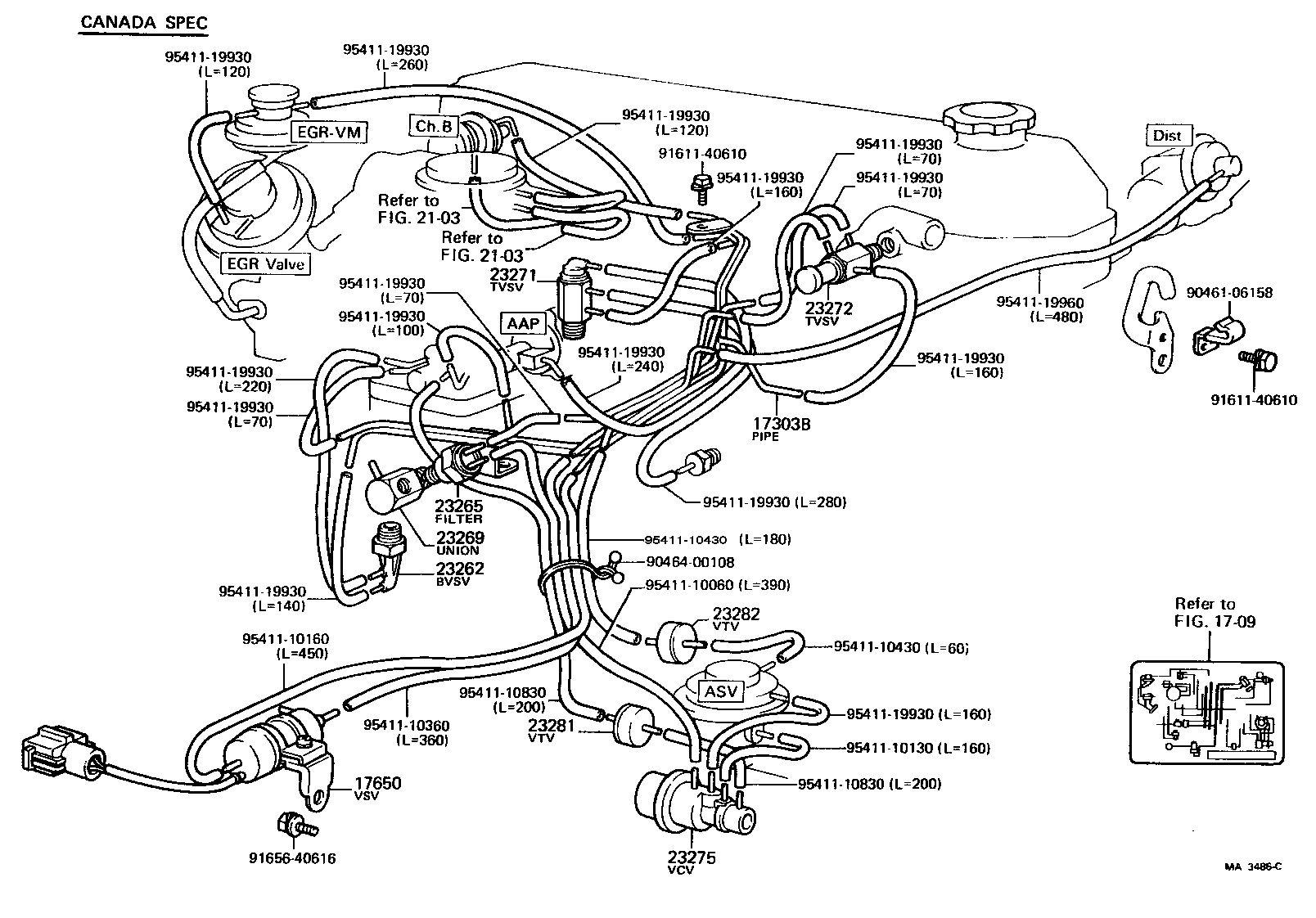

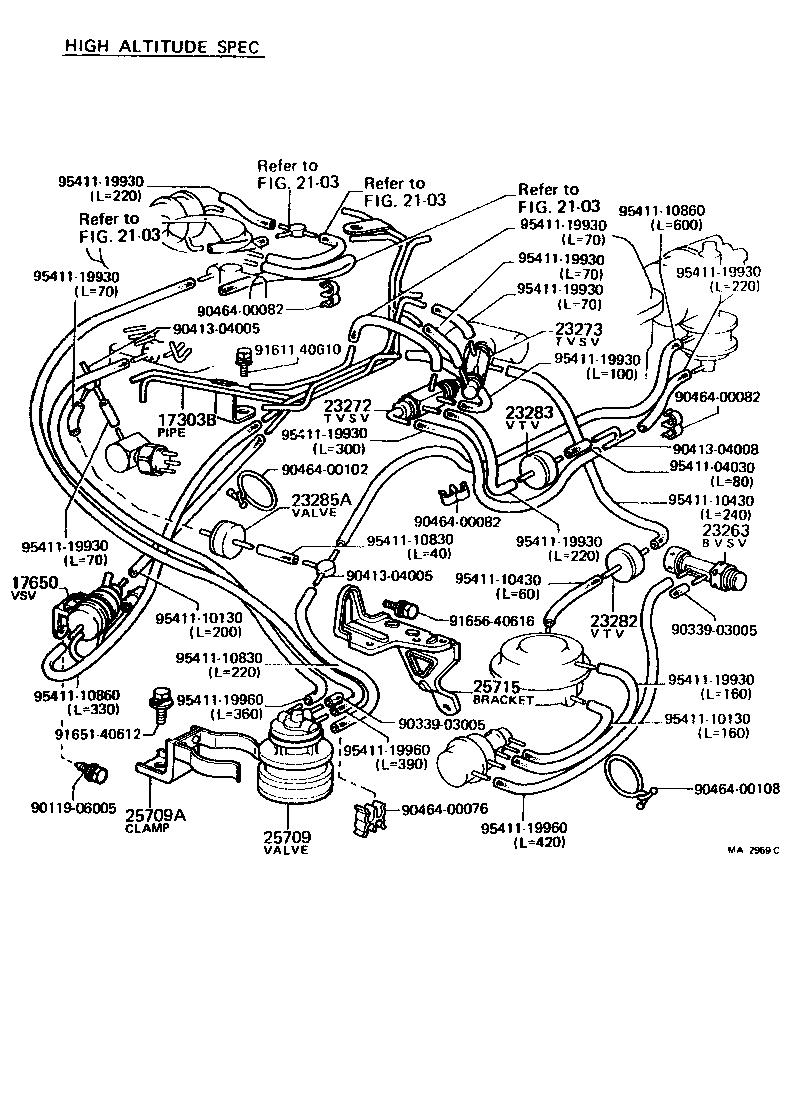

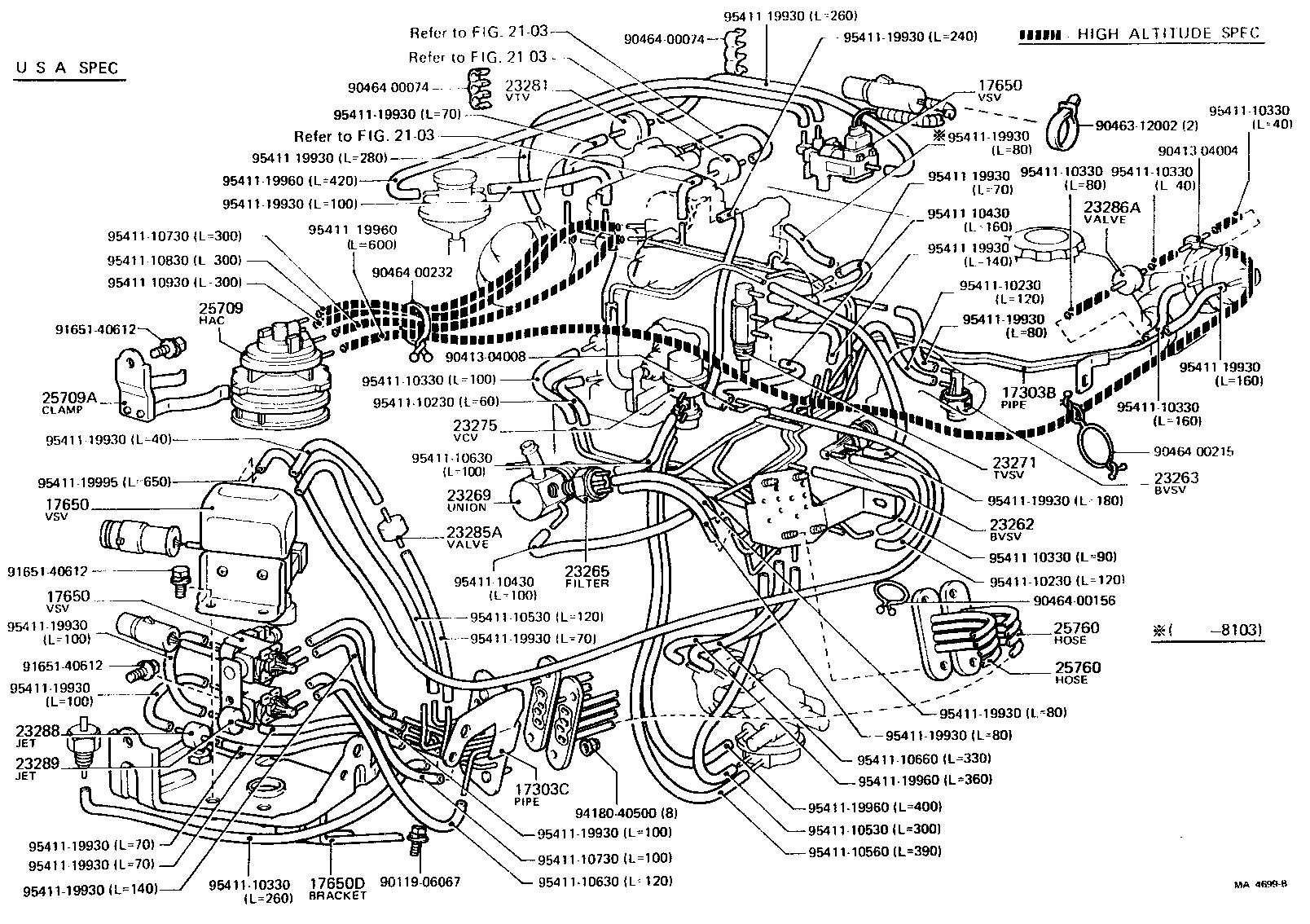

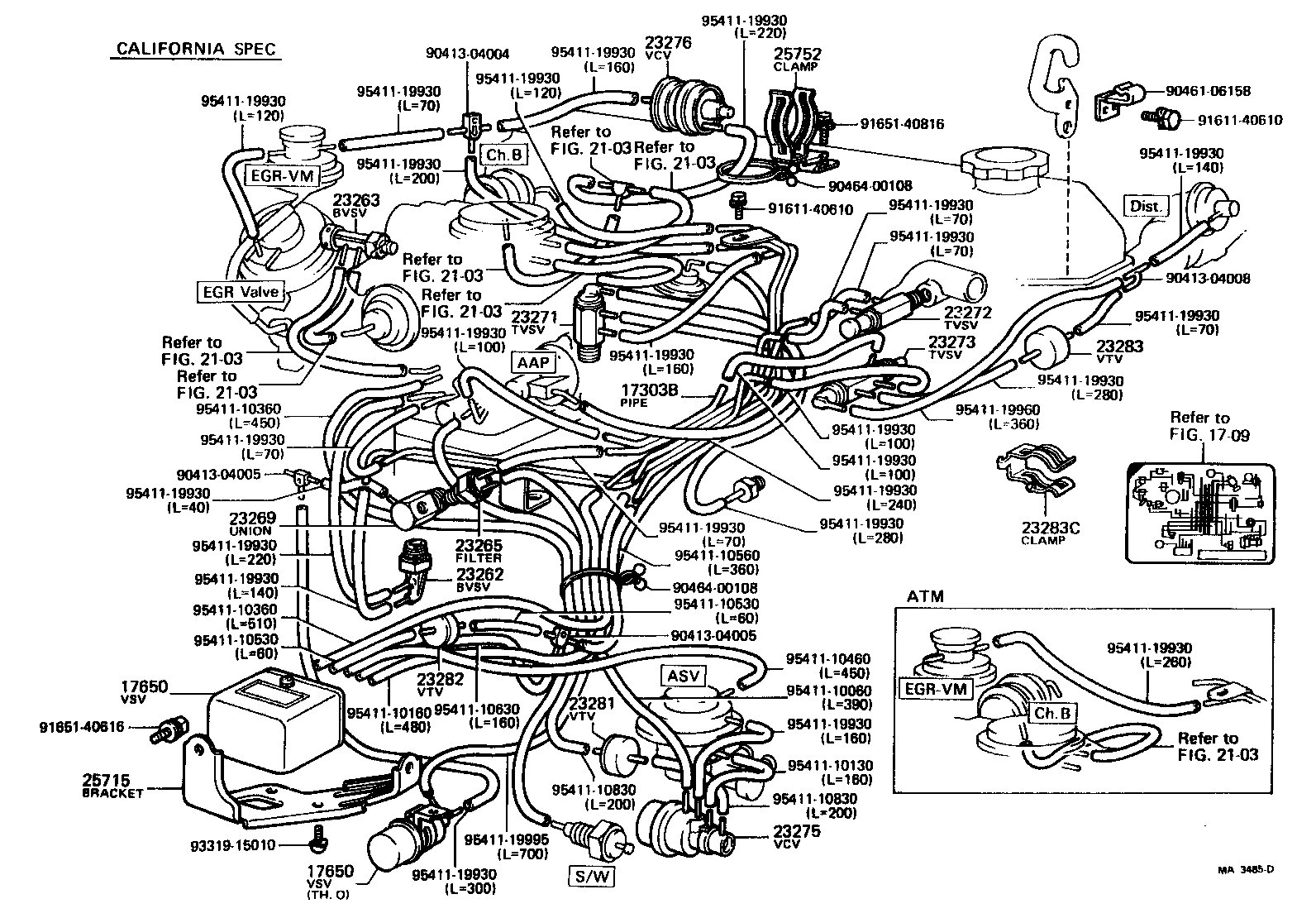

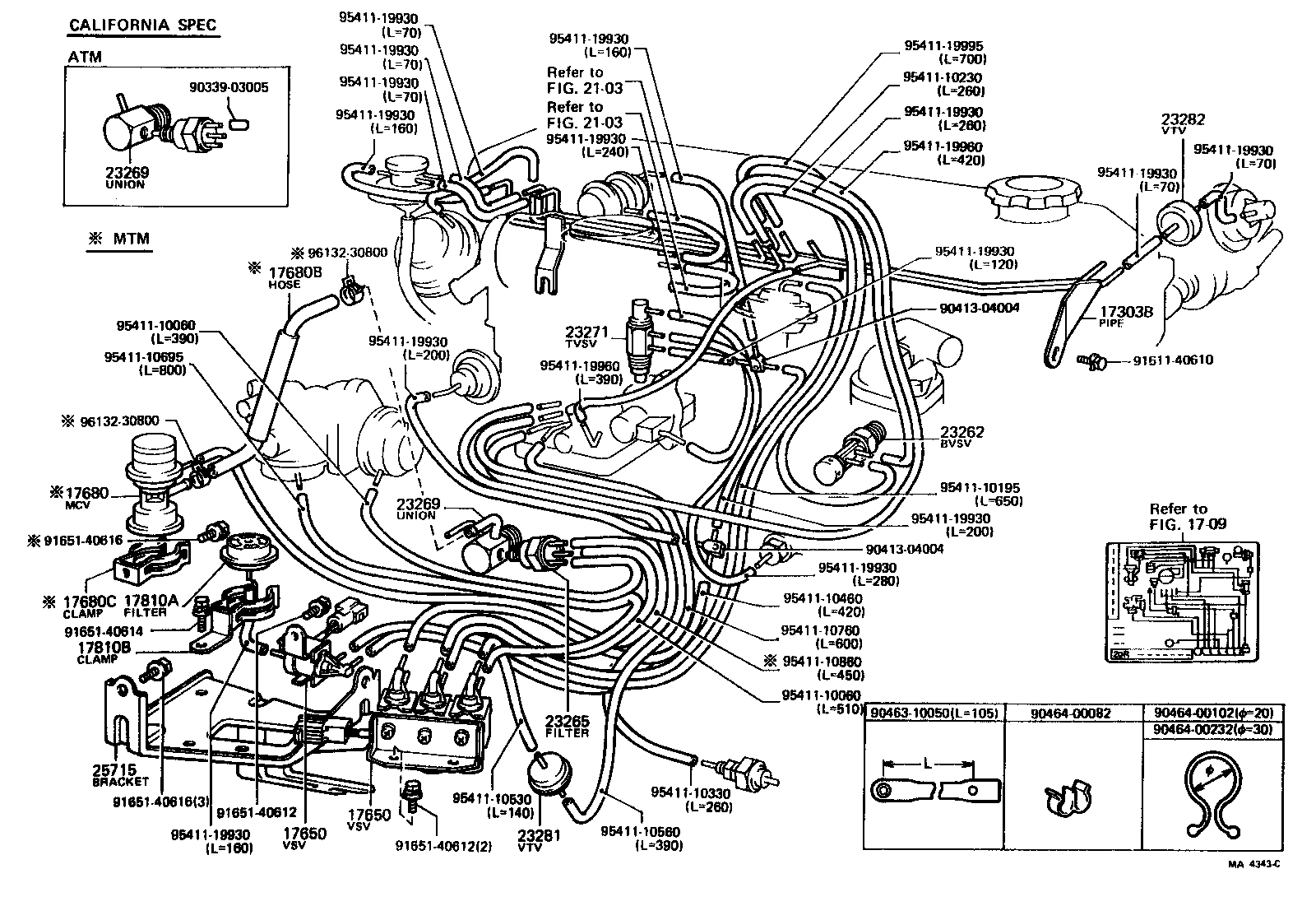

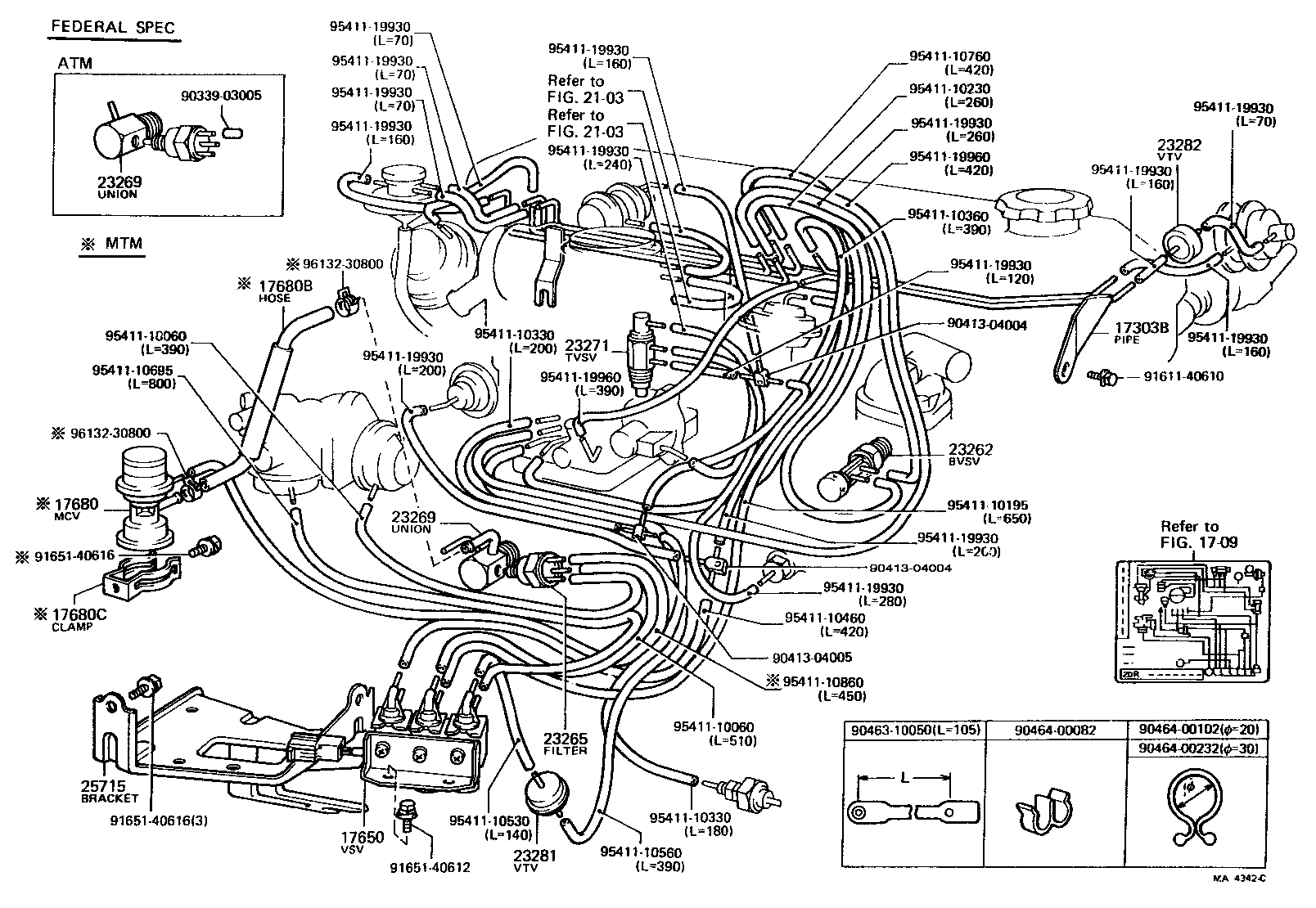

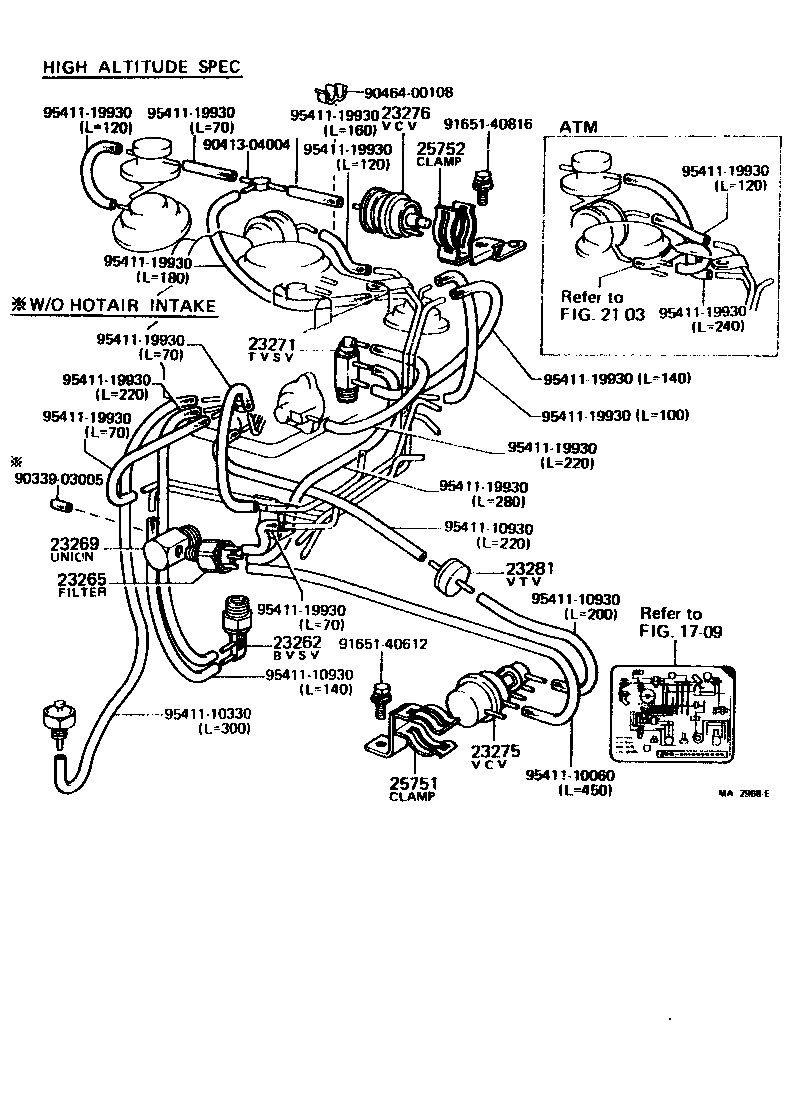

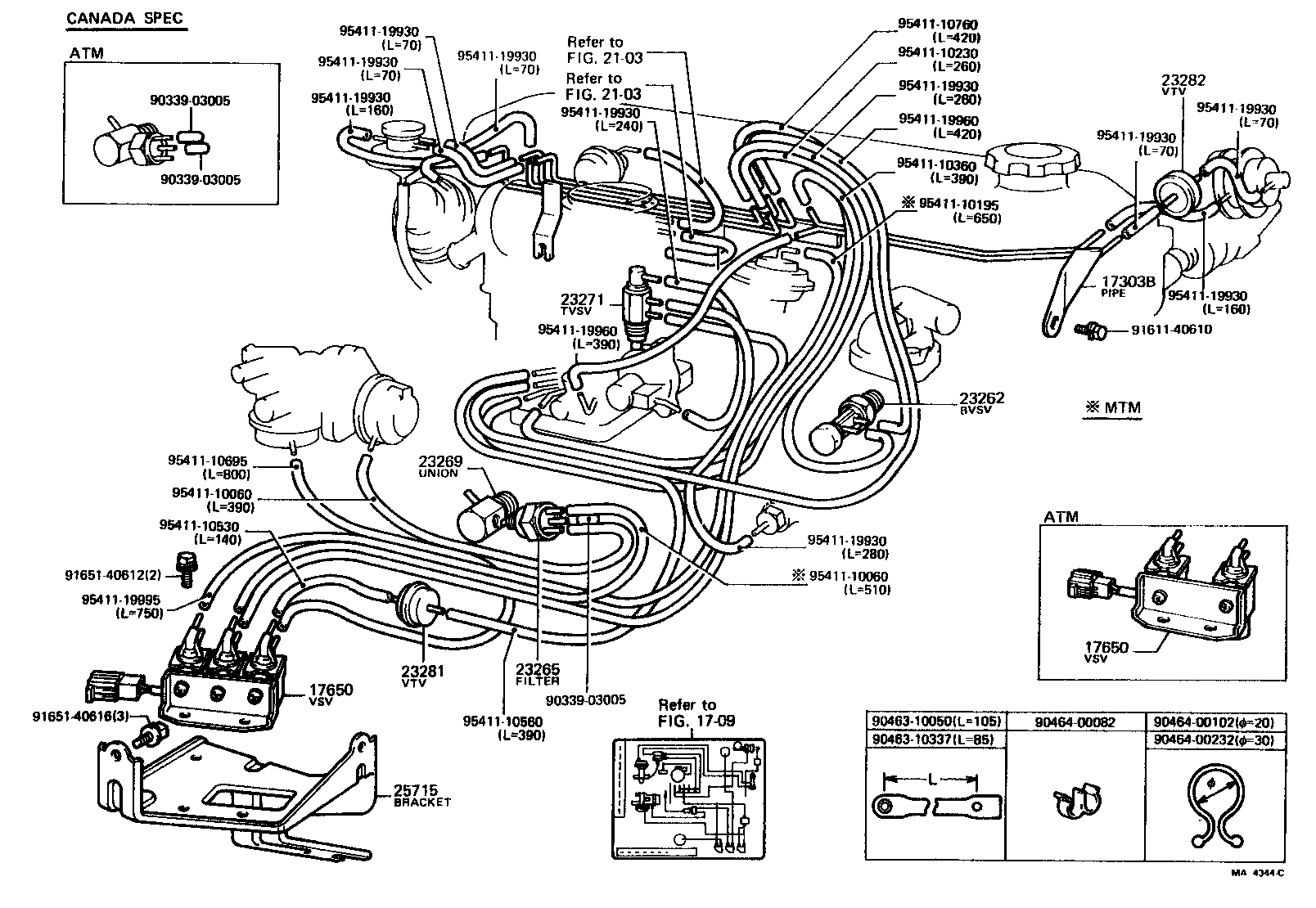

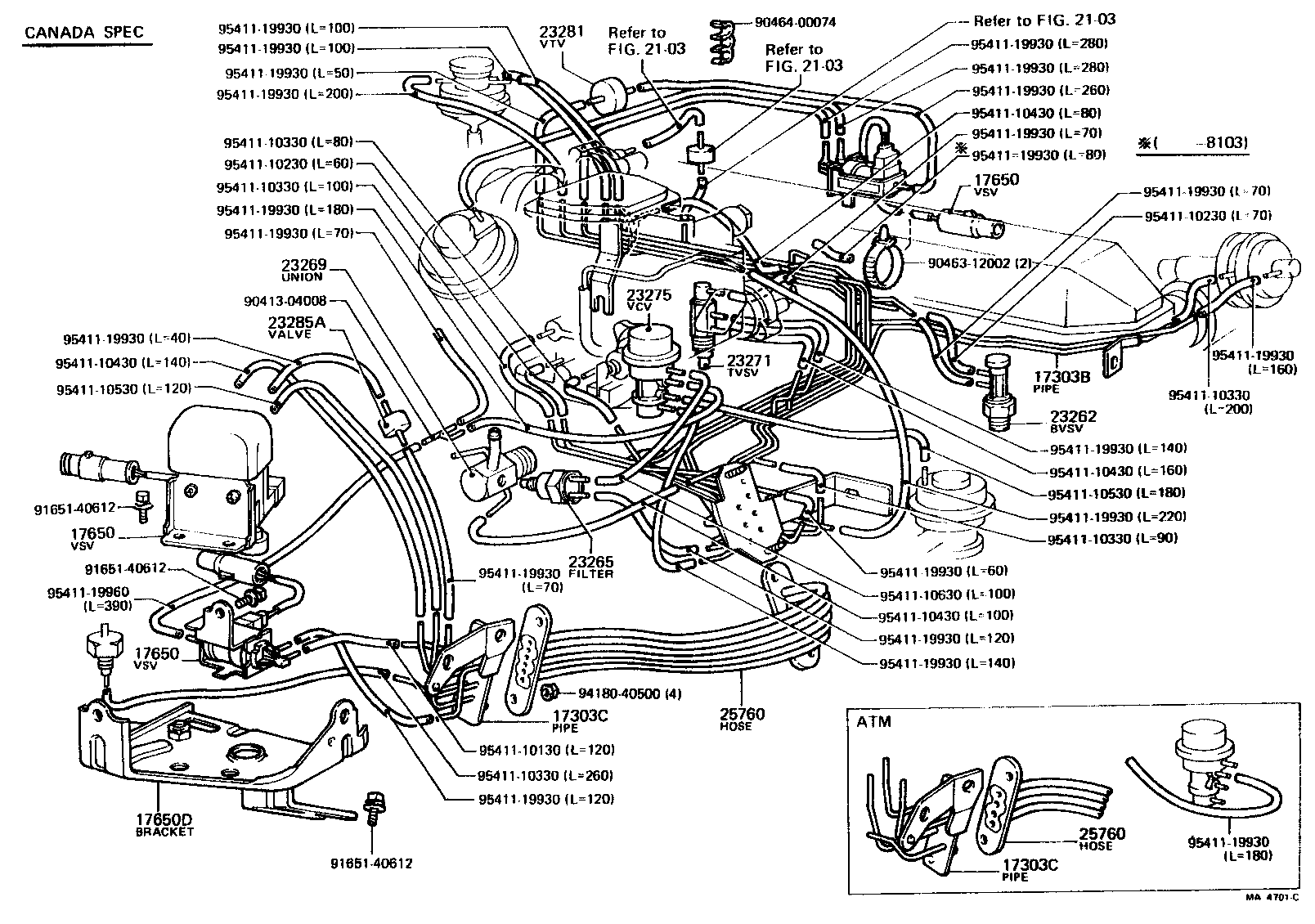

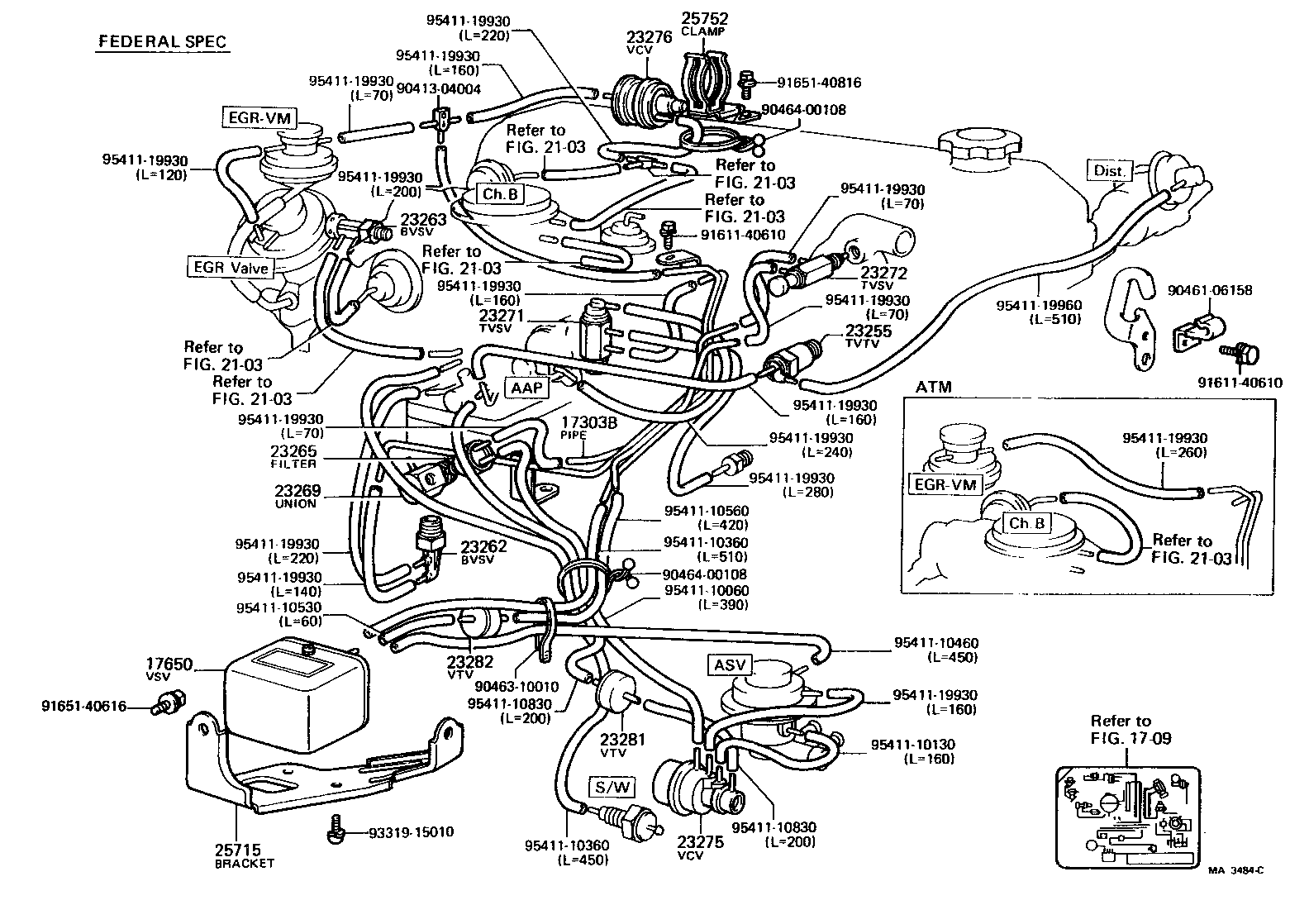

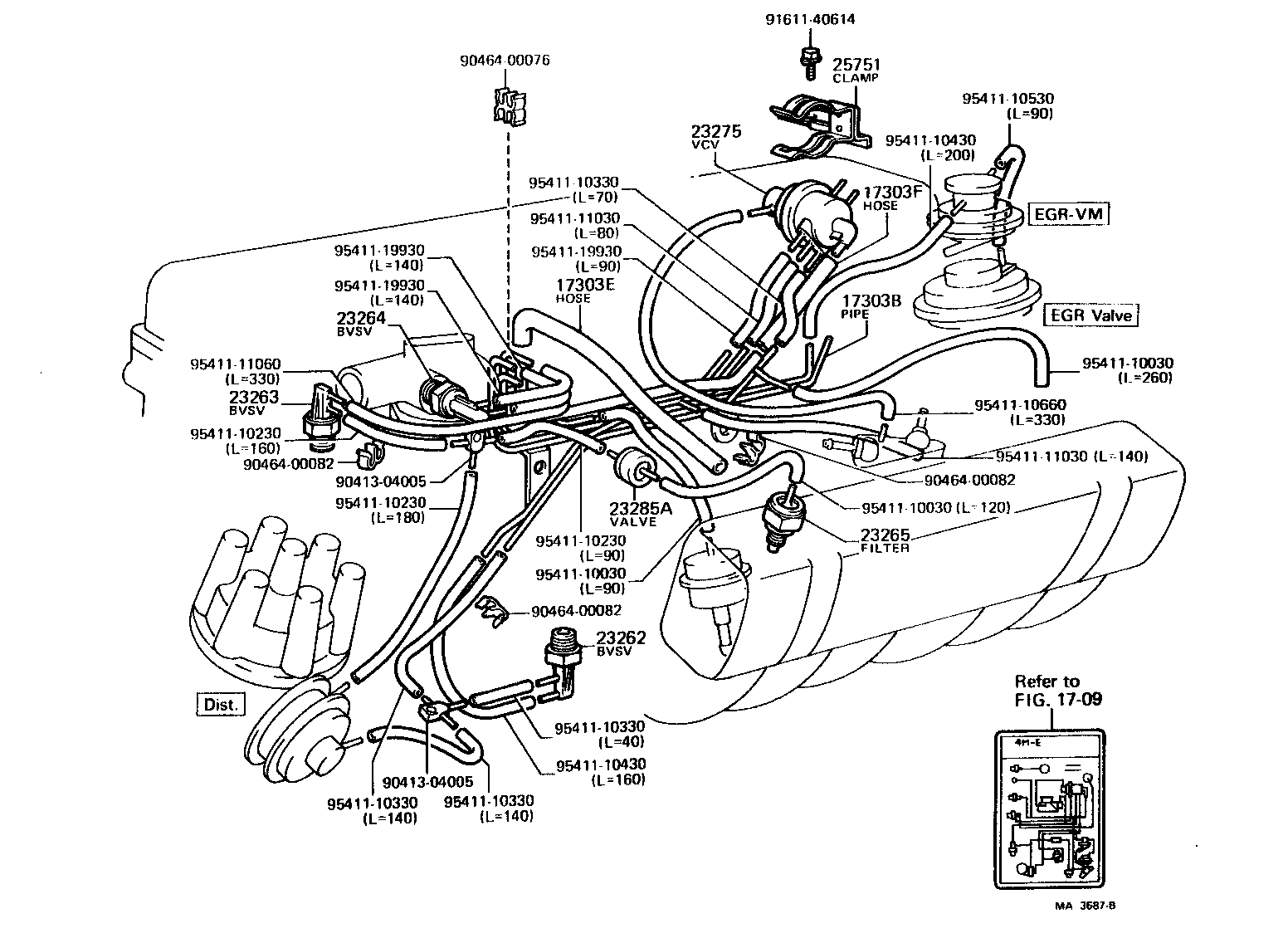

Vacuum Piping

36 part groups · 16 illustrations

PNC	Description
17303B	Pipe Sub-assy, Air, NO.1
17303C	Pipe Sub-assy, Air, NO.2
17303E	Hose, NO.1(FOR AIR PIPE)
17303F	Hose, NO.2(FOR AIR PIPE)
17650	Valve Assy, Vacuum Switching
17650D	Bracket, Vacuum Switching Valve
17680	Valve Assy, Mixture Control
17680B	Hose(FOR MIXTURE CONTROL VALVE)
17680C	Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
17810A	Filter Assy, Air
17810B	Clamp(FOR AIR FILTER)
23255	Valve, Thermostatic Vacuum Transmitting, NO.1
23262	Valve, Bimetal Vacuum Switching, NO.1
23263	Valve, Bimetal Vacuum Switching, NO.2
23264	Valve, Bimetal Vacuum Switching, NO.3
23265	Filter, Gas, NO.1
23269	Union(FOR GAS FILTER)
23271	Valve, Thermostatic Vacuum Switching, NO.1
23272	Valve, Thermostatic Vacuum Switching, NO.2
23273	Valve, Thermostatic Vacuum Switching, NO.3
23275	Valve, Vacuum Control, NO.1
23276	Valve, Vacuum Control, NO.2
23281	Valve, Vacuum Transmitting, NO.1
23282	Valve, Vacuum Transmitting, NO.2
23283	Valve, Vacuum Transmitting, NO.3
23283C	Clamp, Vacuum Transmitting Valve
23285A	Valve, Check, NO.1
23286A	Valve, Check, NO.2
23288	Jet, NO.1
23289	Jet, NO.2
25709	Valve Sub-assy, High Altitude Compensator
25709A	Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25715	Bracket, Emission Control Valve
25751	Clamp, Vacuum Control Valve, NO.1
25752	Clamp, Vacuum Control Valve, NO.2
25760	Hose Assy, Vacuum Transmitting

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
