Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 3 illustrations

Illustrations

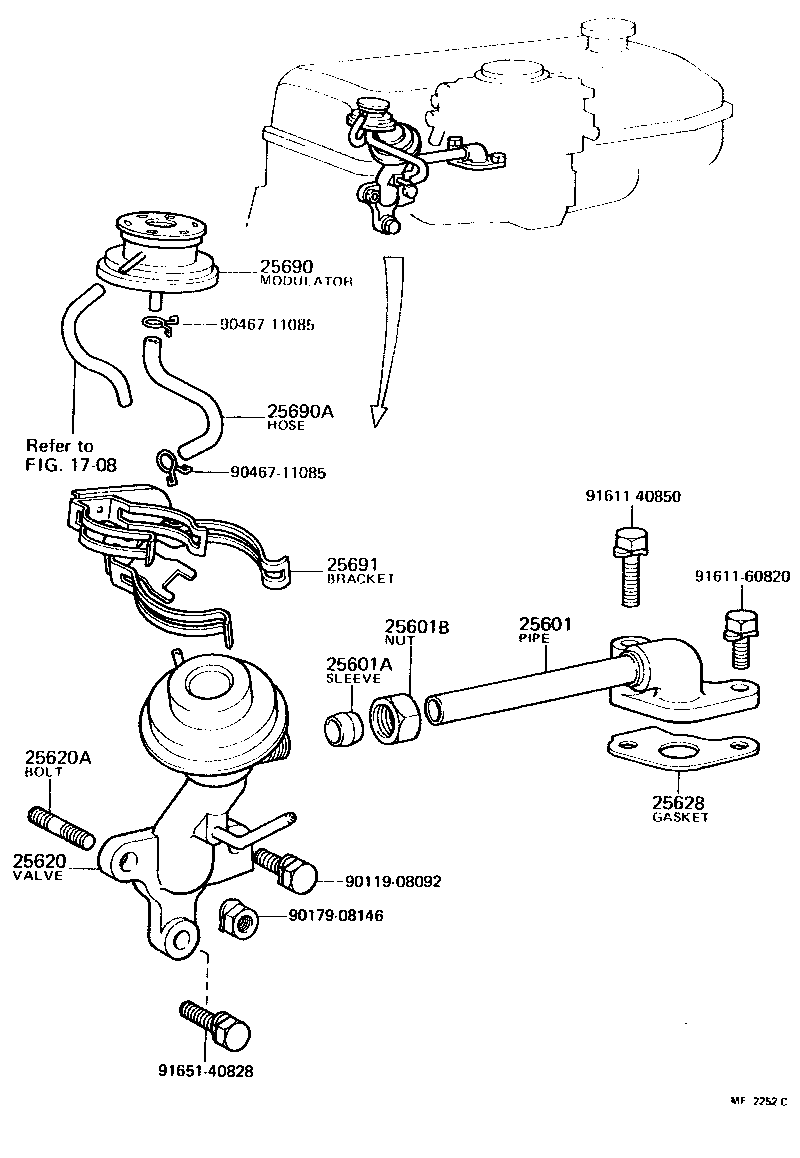

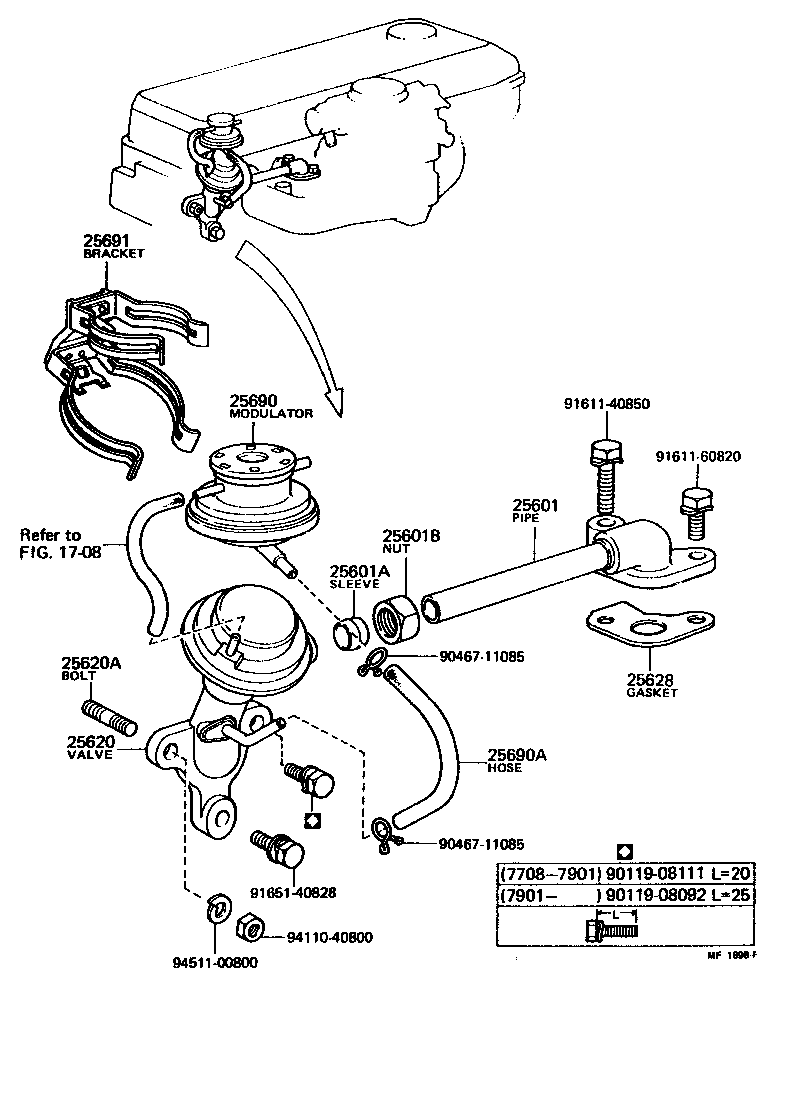

Figure MF2144A MF2144A 1979-01 → — Figure MF1898F MF1898F 1977-08 → 1979-08 Figure MF2252C MF2252C 1979-08 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601F Union(FOR EGR PIPE, NO.1)
25618A Bolt, Stud(FOR EGR INLET)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25682 Cooler, Egr, NO.2
25686 Gasket, Egr Cooler, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
