Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

23 part groups · 3 illustrations

Illustrations

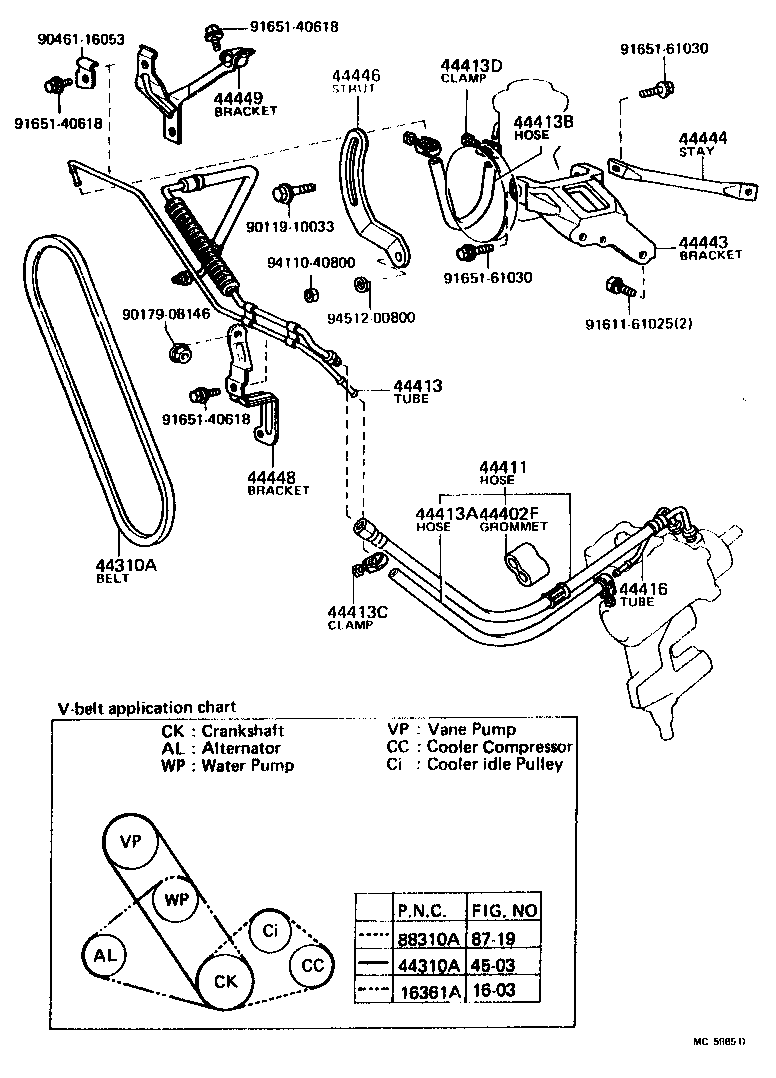

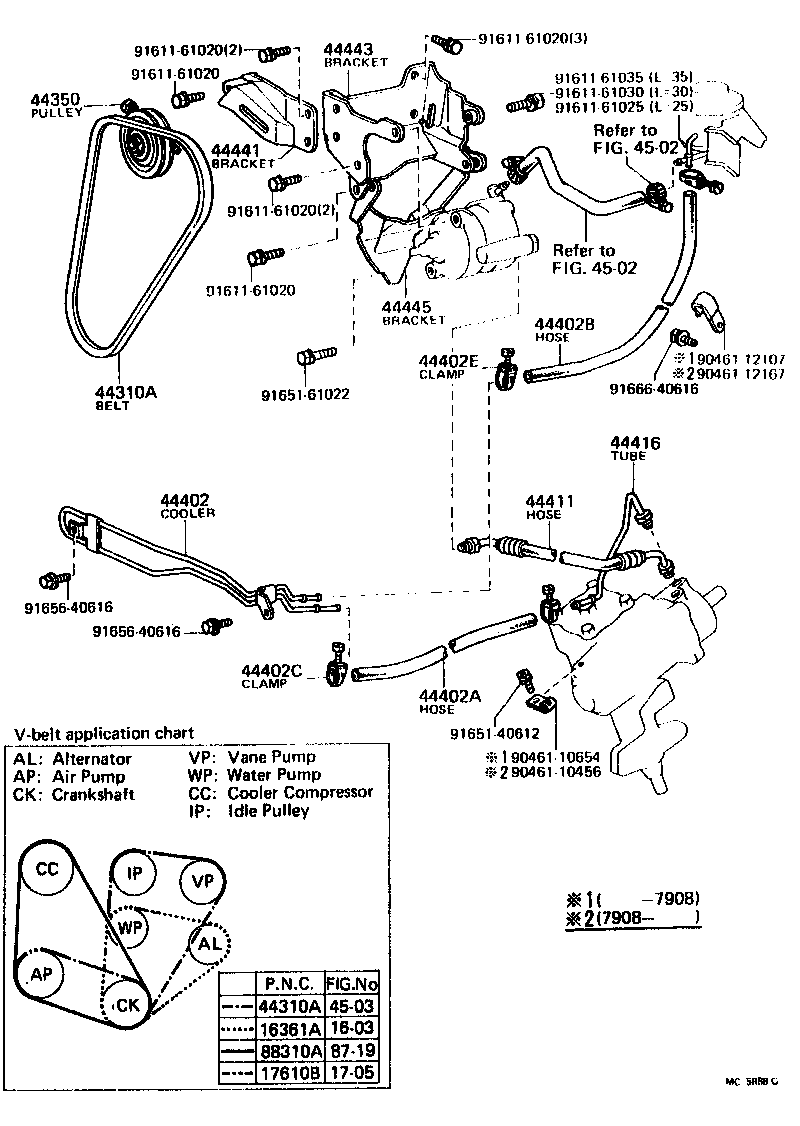

Figure MC5183B MC5183B 1977-08 → 1978-08 Figure MC5888C MC5888C 1978-08 → — Figure MC5985D MC5985D 1979-01 → —

Part groups

PNCDescription
44350 Pulley Assy, Power Steering Idle
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44402F Grommet, Power Steering Oil Cooler Hose
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44442 Bracket, Pump, Rear
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
44448 Bracket, Pressure Feed Hose Support, NO.1
44449 Bracket, Pressure Feed Hose Support, NO.2
44451 Attachment, Timing Chain Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
