Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

17 part groups · 8 illustrations

Illustrations

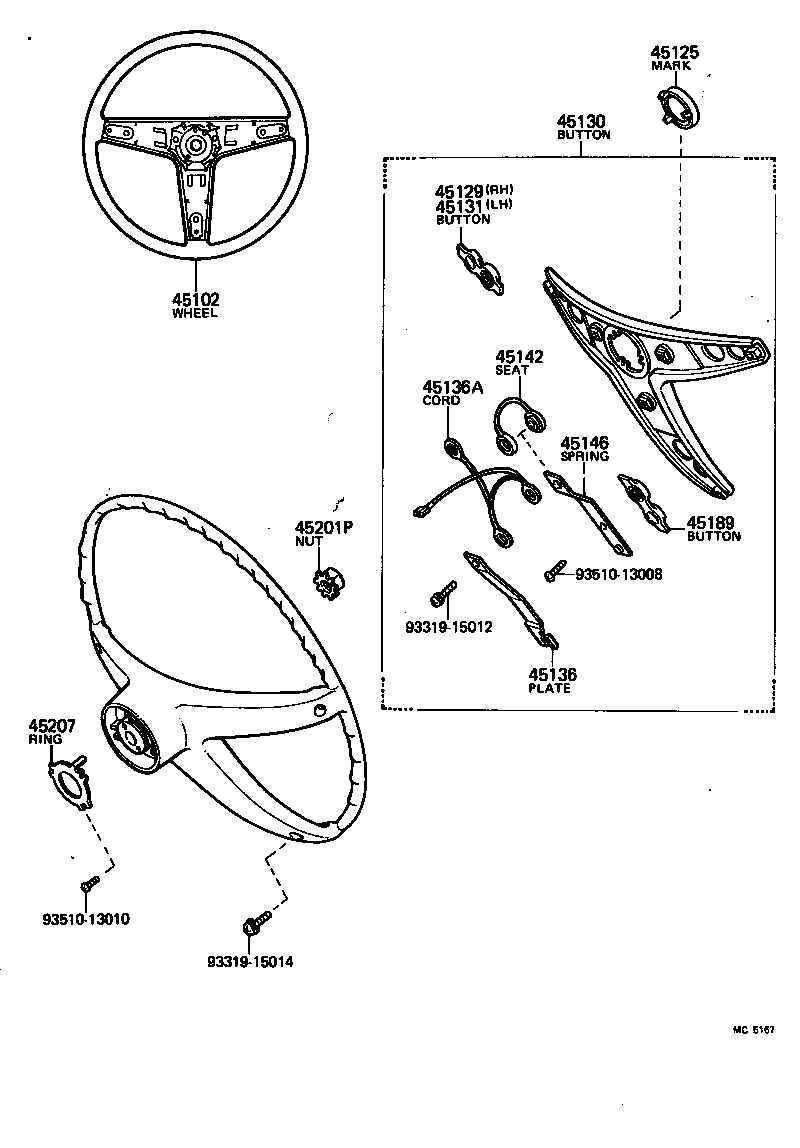

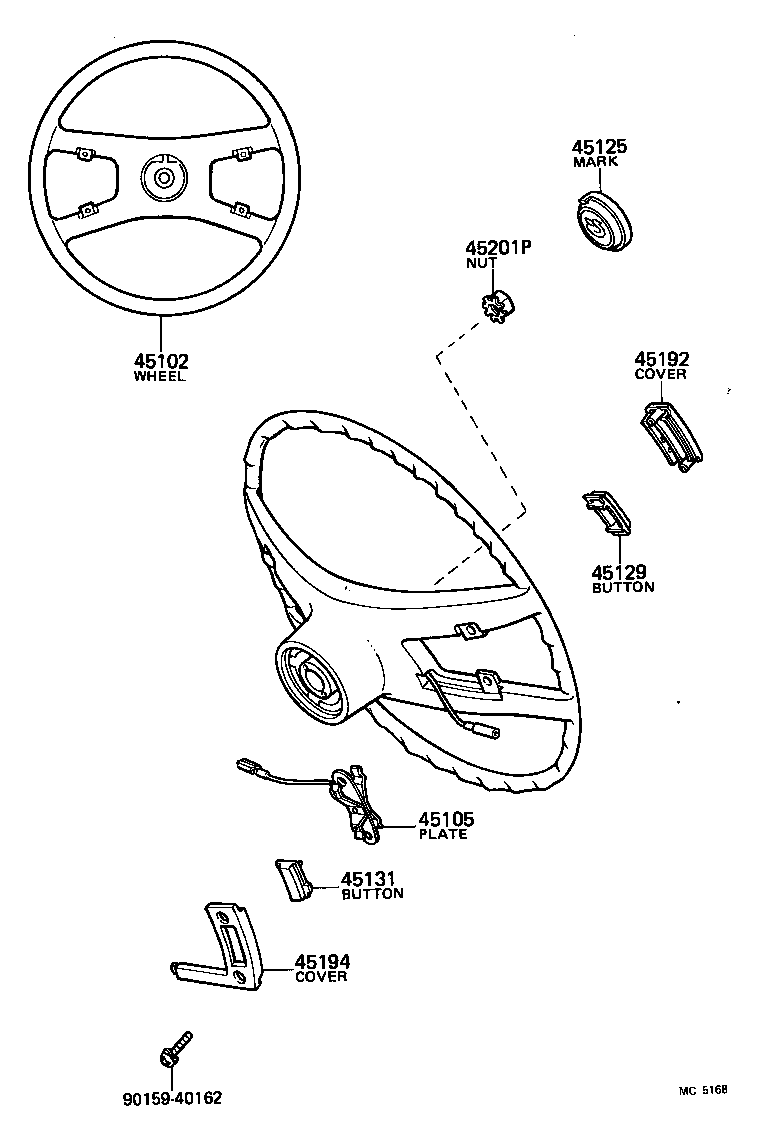

Figure MC5102A MC5102A 1977-08 → 1980-08 Figure MC5102A MC5102A 1980-01 → 1980-05 Figure MC5102A MC5102A 1980-11 → 1981-02 Figure MC5167 MC5167 1977-08 → 1979-08 Figure MC5103D MC5103D 1979-08 → — Figure MC5168 MC5168 1977-08 → 1979-08 Figure MC5546B MC5546B 1979-01 → — Figure MC5546B MC5546B 1979-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45192 Cover, Horn Button, Upper
45194 Cover, Horn Button, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
