Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 3 illustrations

Illustrations

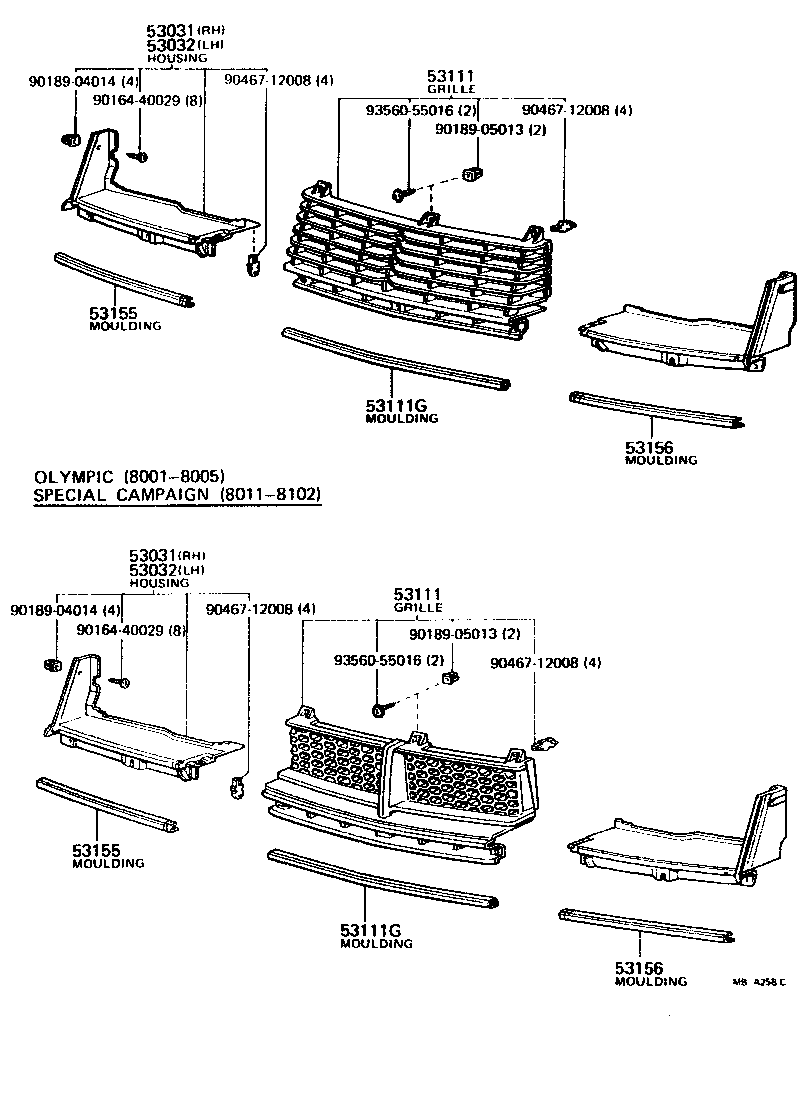

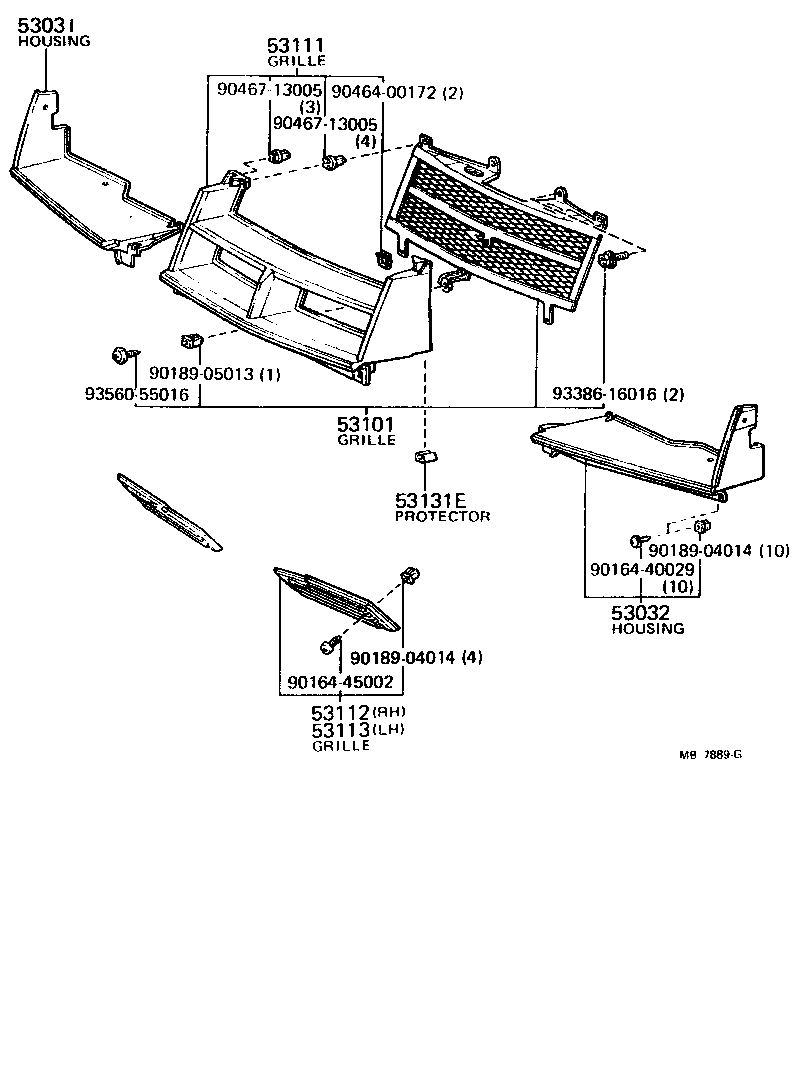

Figure MB7420D MB7420D 1977-08 → 1979-08 Figure MBA258C MBA258C 1979-08 → — Figure MB7889G MB7889G 1979-01 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
53112 Grille, Radiator, RH OR Upper
53113 Grille, Radiator, LH OR Lower
53131E Protector, Headlamp Door
53155 Moulding, Headlamp Door, RH
53156 Moulding,Headlamp Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
