Toyota Celica
1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States
Discontinued model
Data version 1985-01

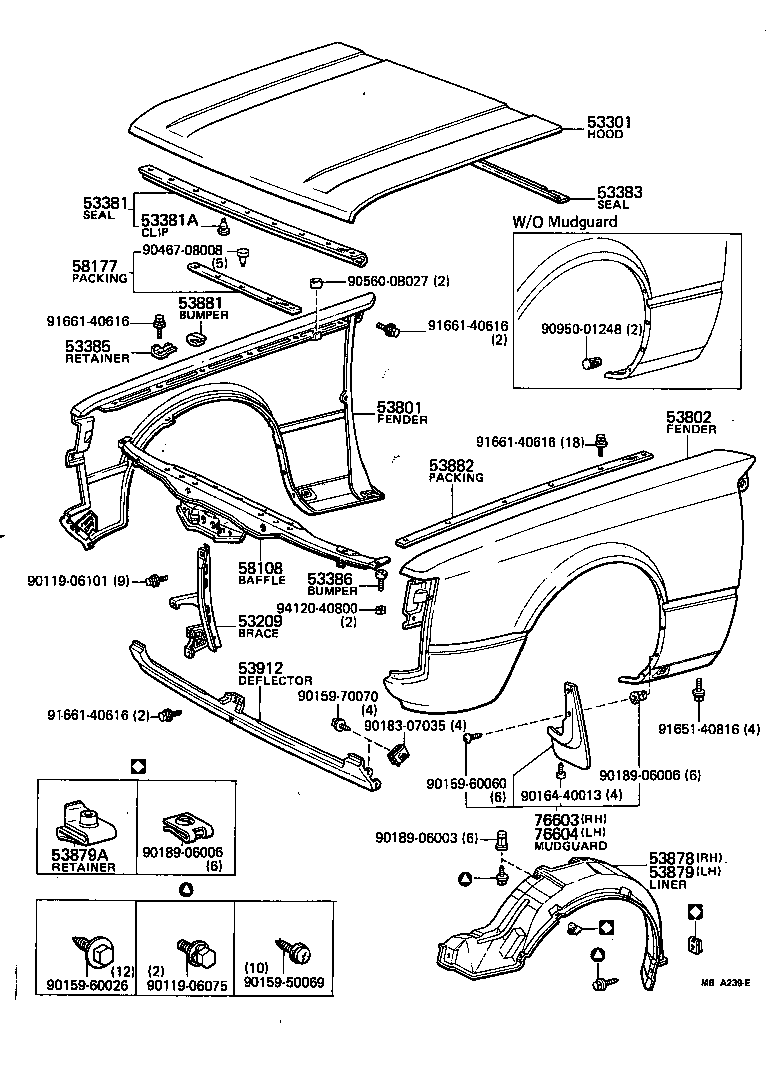

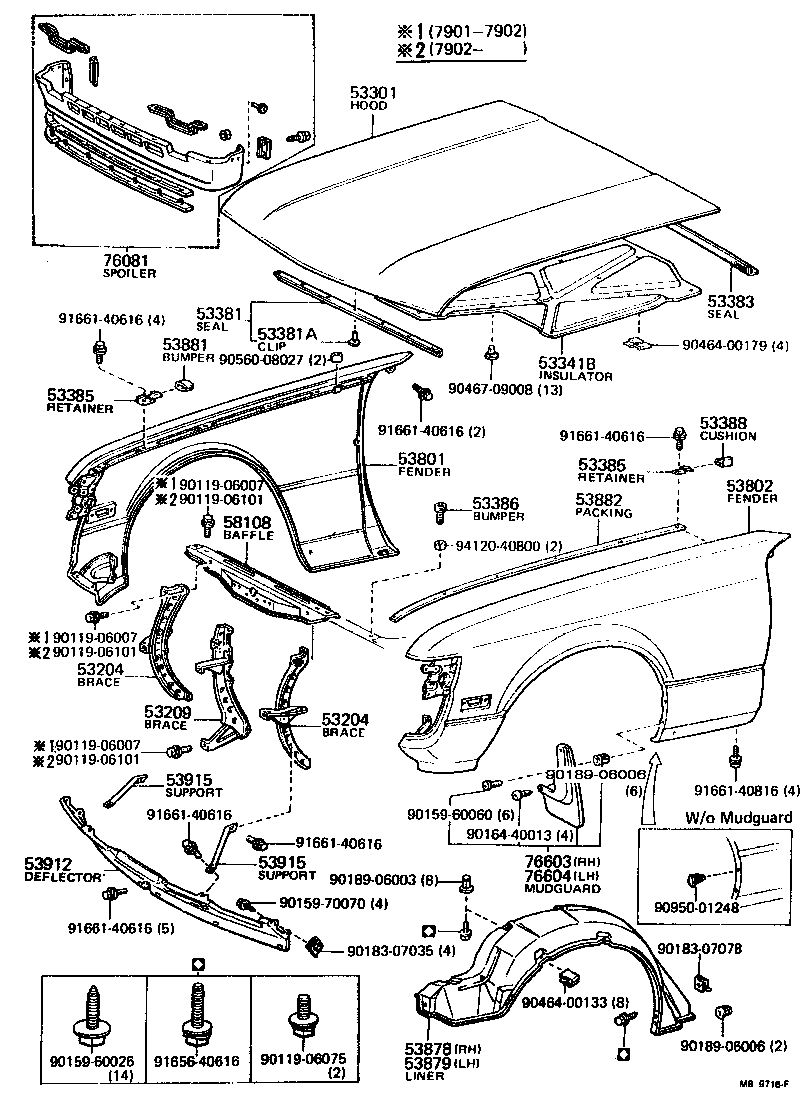

Hood & Front Fender
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53204 | Brace Sub-assy, Radiator Support TO Crossmember |
| 53209 | Brace Sub-assy, Hood Lock |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53383 | Seal, Hood TO Cowl Top |
| 53385 | Retainer, Hood, Bumper |
| 53386 | Bumper, Hood, Rear |
| 53388 | Cushion, Hood, Rear |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53878 | Liner, Front Fender, RH |
| 53879 | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53881 | Bumper, Fender TO Hood |
| 53882 | Packing, Front Fender Main |
| 53912 | Deflector, Front Bumper Stone |
| 53915 | Support, Front Valance Panel |
| 58108 | Baffle Sub-assy, Radiator Upper |
| 58177 | Packing, Radiator Baffle |
| 76081 | Spoiler Sub-assy, Front |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
