Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

10 part groups · 3 illustrations

Illustrations

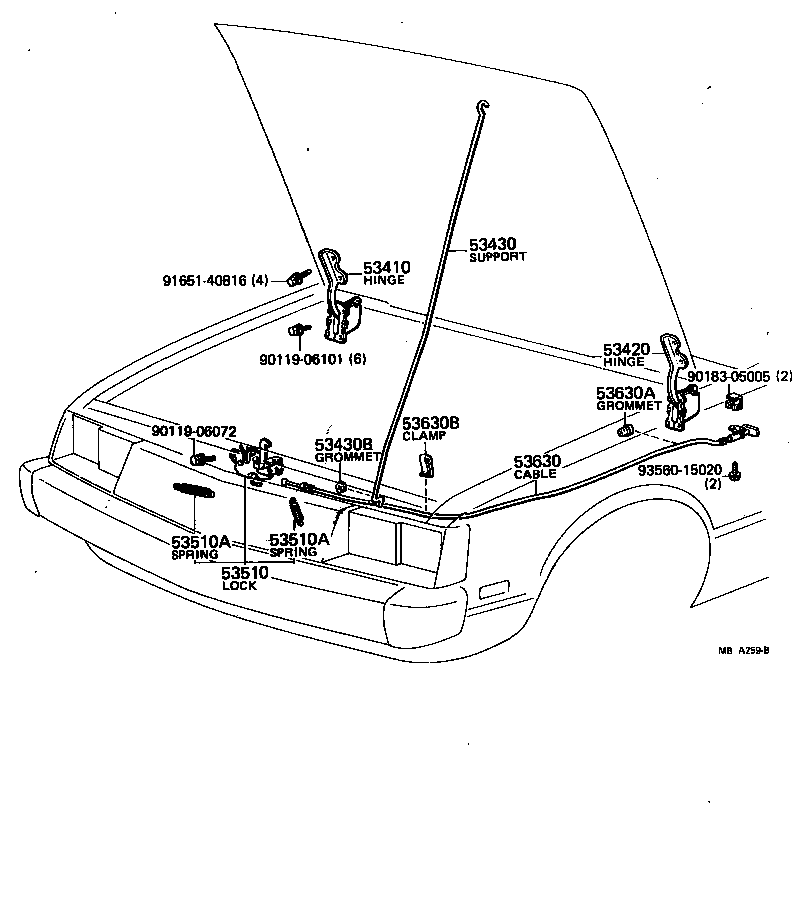

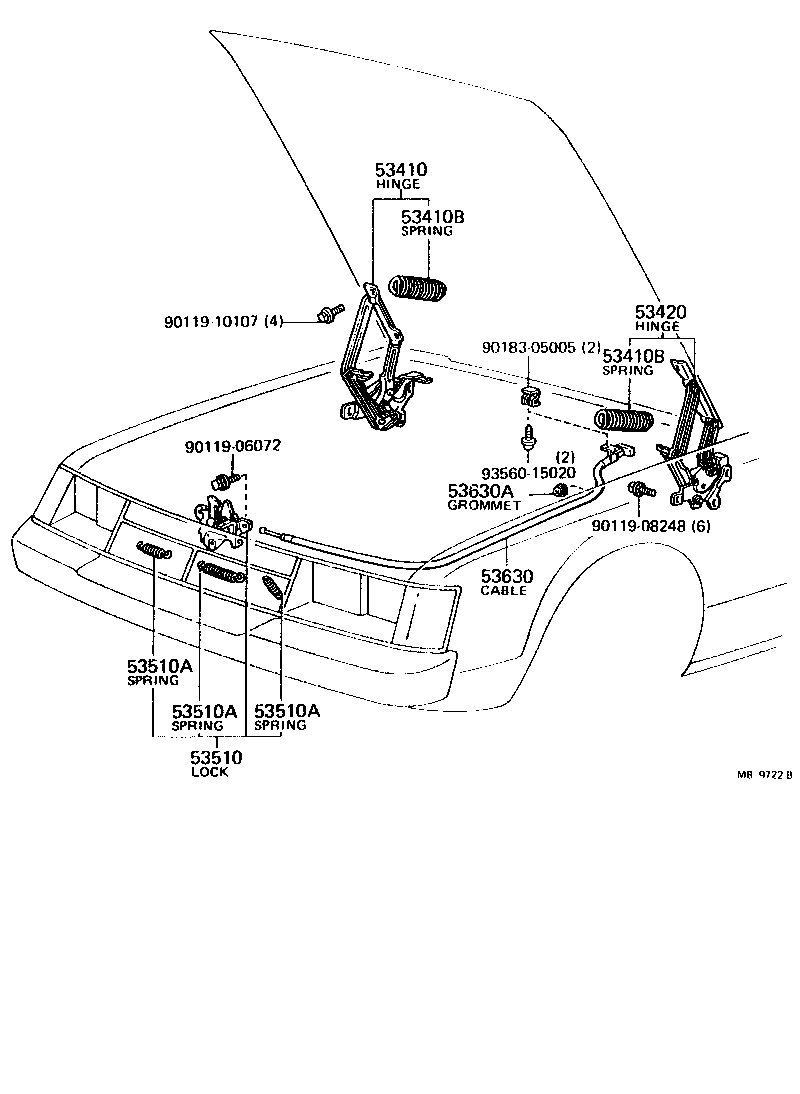

Figure MB7423E MB7423E 1977-08 → 1979-08 Figure MBA259B MBA259B 1979-08 → — Figure MB9722B MB9722B 1979-01 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53410B Spring, Tension(FOR HOOD HINGE)
53420 Hinge Assy, Hood, LH
53430 Support Assy, Hood
53430B Grommet(FOR HOOD SUPPORT)
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53630 Cable Assy, Hood Lock Control
53630A Grommet(FOR HOOD LOCK CONTROL CABLE)
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
