Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01

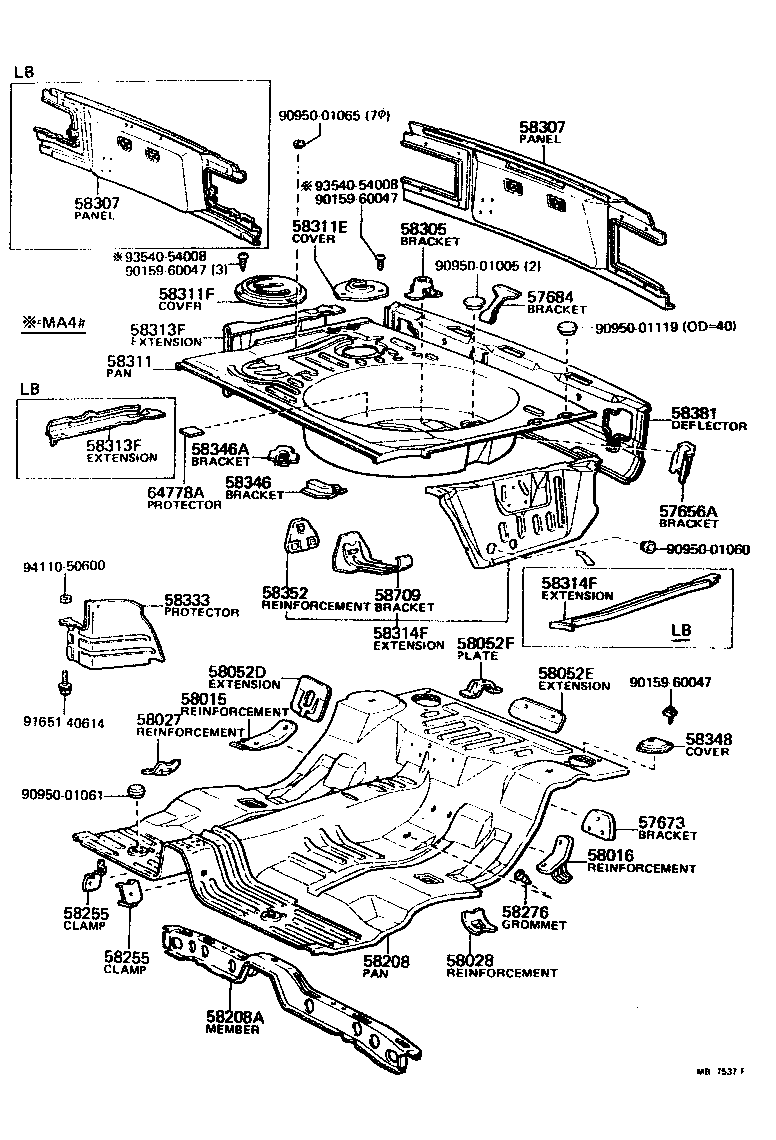

Floor Pan & Lower Back Panel

38 part groups · 2 illustrations

PNC	Description
57656A	Bracket, Exhaust Pipe Mounting, NO.1
57673	Bracket, Rear Seatback Hinge Mounting
57684	Bracket, Fuel Tank, Rear
58015	Reinforcement, Belt Anchor TO Floor Pan, RH
58016	Reinforcement, Belt Anchor TO Floor Pan, LH
58027	Reinforcement, Belt Anchor TO Floor Pan, NO.1
58028	Reinforcement Sub-assy, Seat Belt Anchor, NO.2
58052D	Extension, Center Floor TO Package Tray
58052E	Extension, Center Floor TO Brace
58052F	Plate, Luggage Hold Belt Anchor
58101	Pan Sub-assy, Front Floor
58131	Bracket, Front Floor Heat Insulator, NO.1
58171	Reinforcement, Parking Brake Base
58208	Pan, Center Floor
58208A	Member, Center Floor Cross, NO.1
58247	Panel, Footrest, Inside
58255	Clamp, Parking Brake Cable, NO.1
58260	Cover Assy, Transmission, Front
58276	Grommet, Safety Band Anchorage Nut
58286	Boot, Shift & Select Lever, NO.1
58287	Retainer, Shift Lever Boot
58288	Seal, Shift Lever Boot
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58311E	Cover, Rear Floor Service Hole
58311F	Cover, Rear Floor Service Hole, NO.2
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58333	Protector, Main Maffler
58346	Bracket, Rear Floor Heat Insulator
58346A	Bracket, Rear Floor Heat Insulator, NO.2
58348	Cover, Rear Absorber Service Hole
58352	Reinforcement, Jack Clamp
58381	Deflector, Rear Bumper Stone
58419	Bracket, Deck Board, NO.2
58709	Bracket Sub-assy, Jack Clamp
64778A	Protector, Spare Wheel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
