Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 5 illustrations

Illustrations

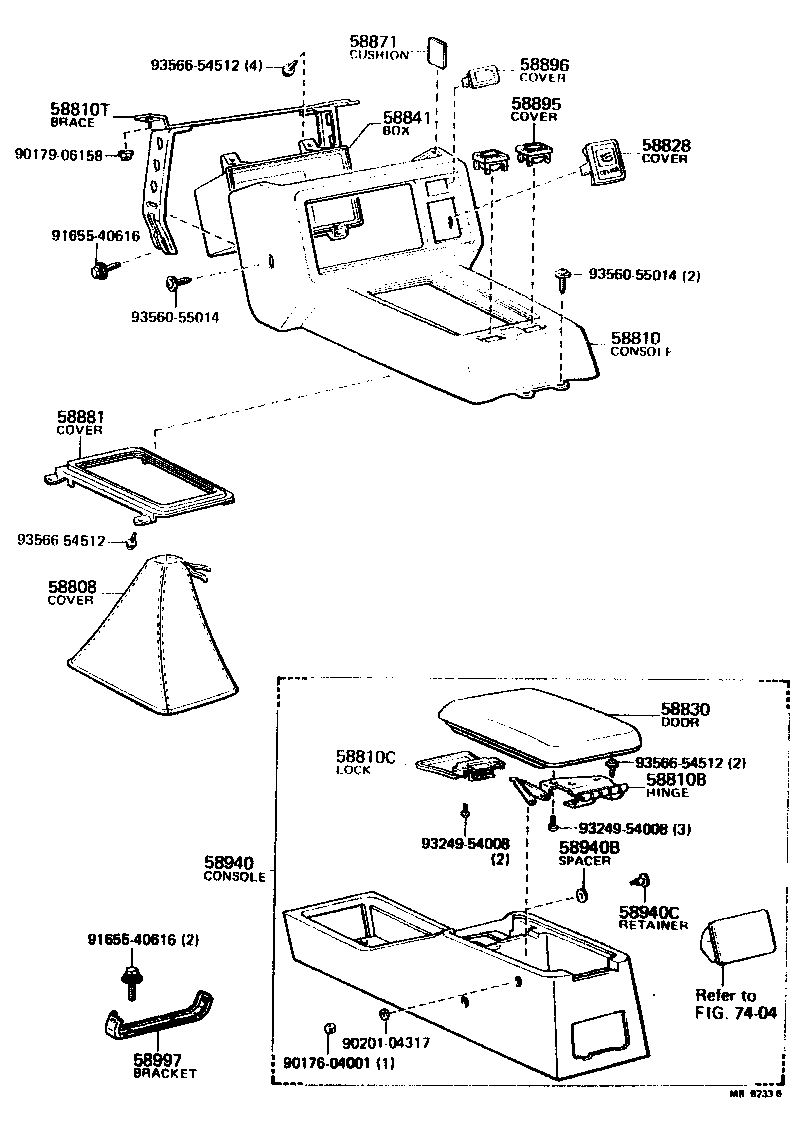

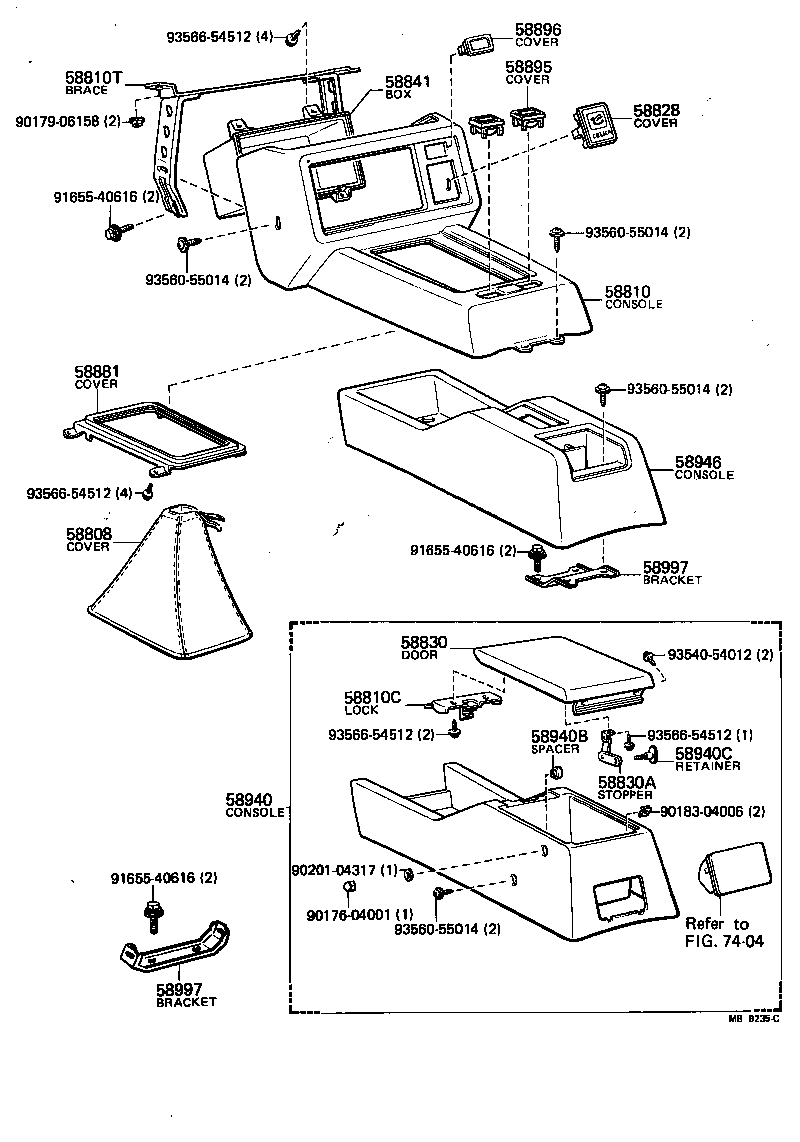

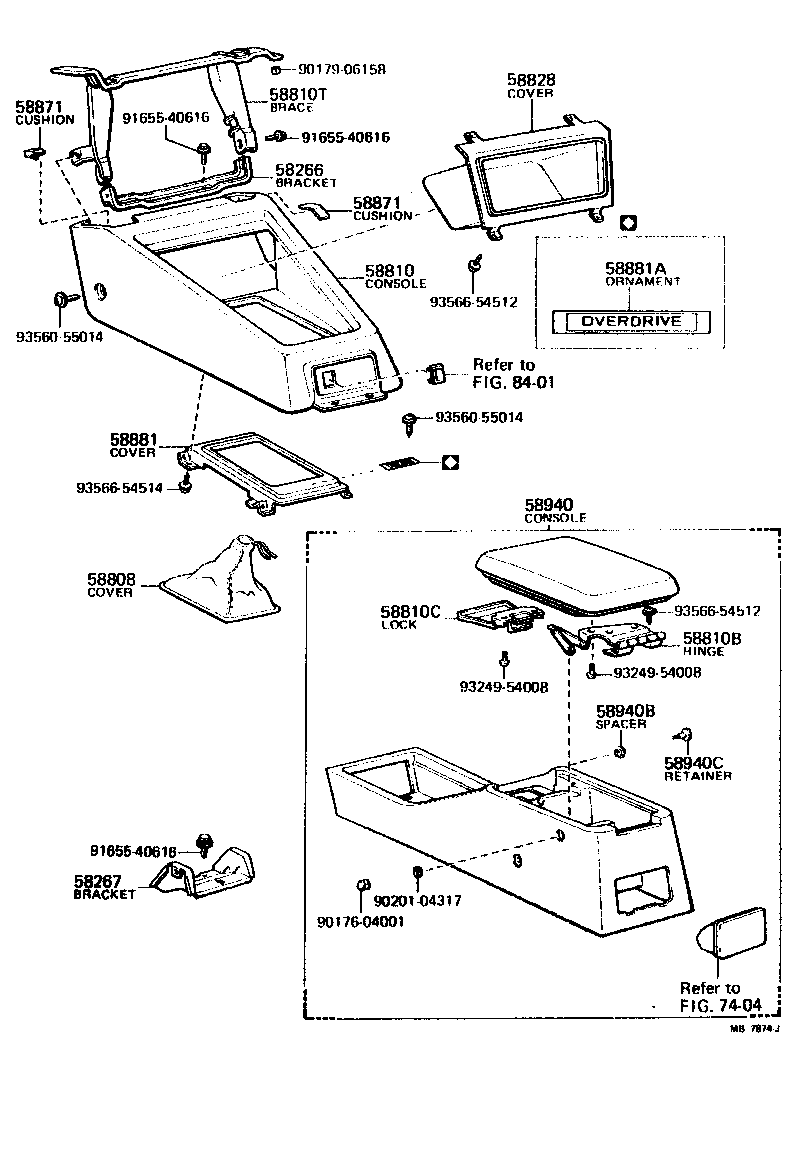

Figure MB7447E MB7447E 1977-08 → 1979-08 Figure MB7874J MB7874J 1979-01 → 1979-08 Figure MBB235C MBB235C 1979-08 → — Figure MBB233B MBB233B 1979-08 → — Figure MBB233B MBB233B 1980-11 → 1981-02

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58810B Hinge Sub-assy,Console Compartment Door
58810C Lock Sub-assy, Console Compartment Door
58810T Brace Sub-assy, Instrument Panel TO Floor
58828 Cover, OK Monitor Opening
58830 Door Sub-assy, Console Compartment
58830A Stopper,Console Compartment Door
58841 Box, Console, Upper
58871 Cushion, Console Box
58881 Cover, Shifting Hole
58881A Ornament, Console Box
58895 Cover, Switch Hole, NO.1
58896 Cover, Switch Hole, NO.2
58940 Console Assy, Rear
58940B Spacer,Console Compartment Door Stopper
58940C Retainer, Console Compartment Door Stopper
58946 Console Box, Rear
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
