Toyota Celica
1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States
Discontinued model
Data version 1985-01

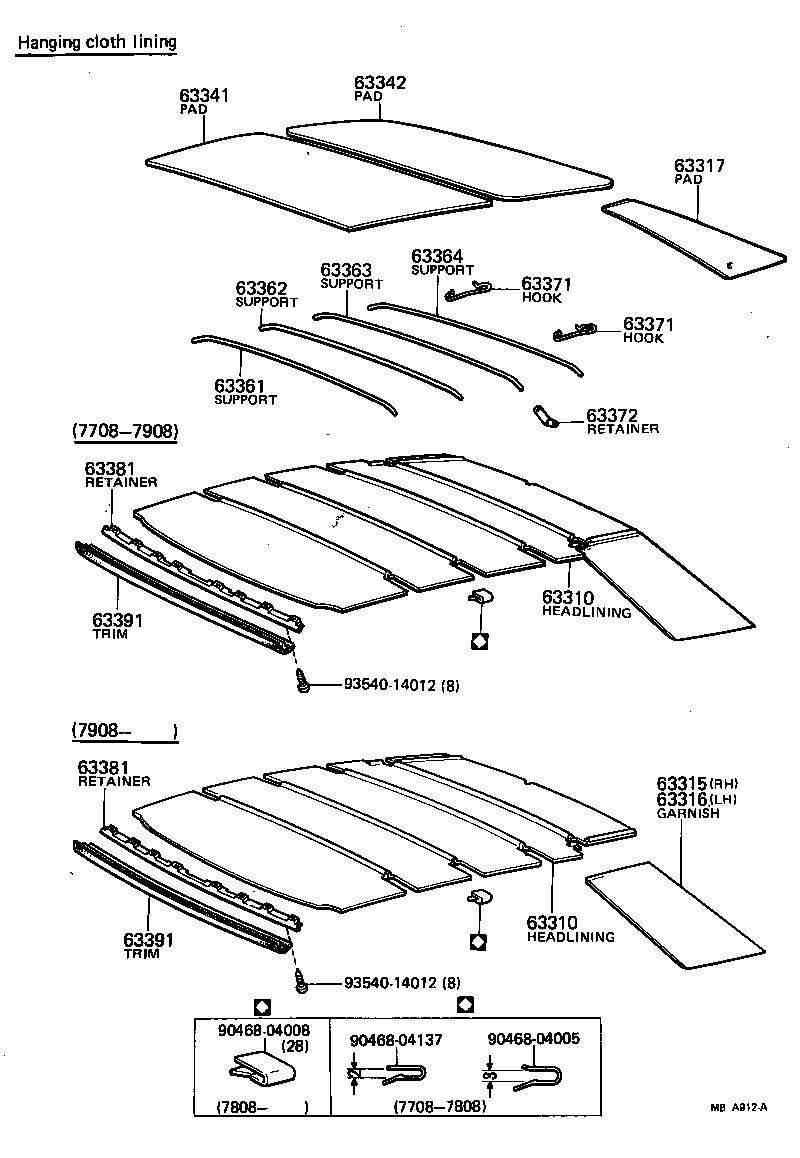

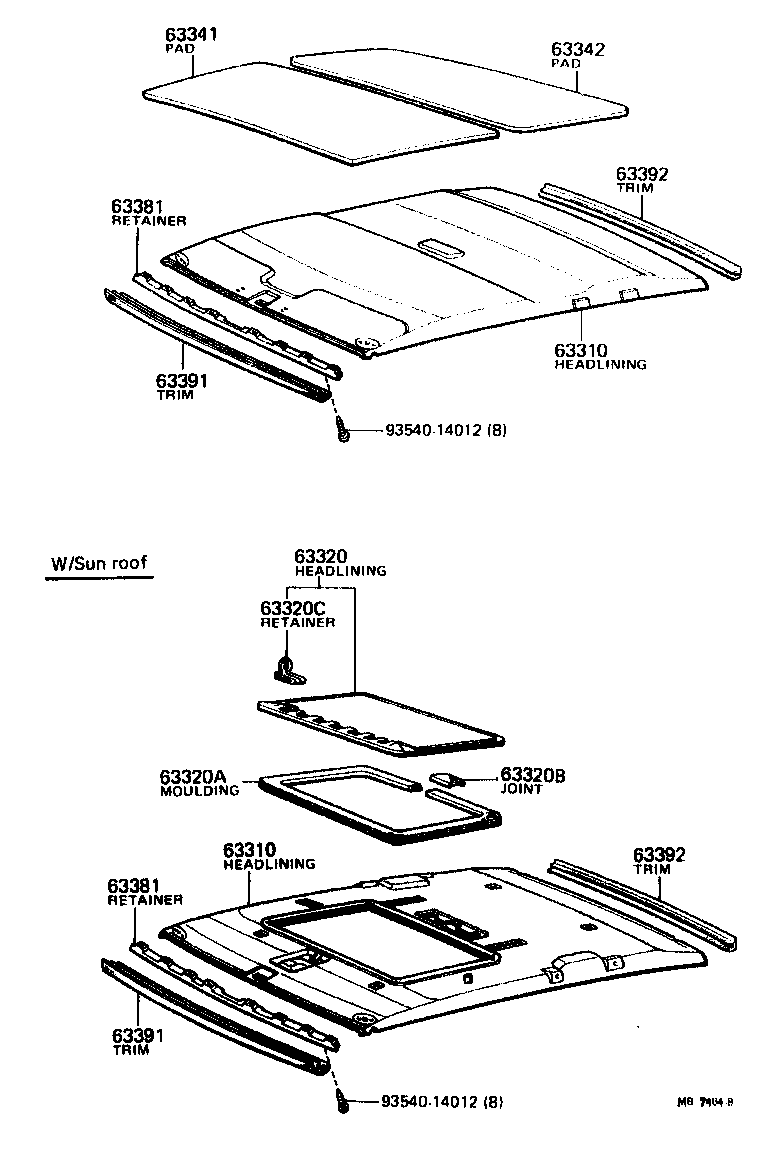

Roof Headlining & Silencer Pad
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63315 | Garnish, Roof Headlining, Rear RH |
| 63316 | Garnish, Roof Headlining, Rear LH |
| 63317 | Pad, Roof Headlining Rear Garnish |
| 63320 | Headlining Assy, Sun Roof OR Removable Roof |
| 63320A | Moulding, Sun Roof OR Removable Roof Opening Trim |
| 63320B | Joint, Sun Roof Opening Trim |
| 63320C | Retainer, Trim Board(FOR SUN ROOF) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63371 | Hook, Roof Headlining Support |
| 63372 | Retainer, Headlining Support |
| 63381 | Retainer, Headlining, Front |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
