Toyota Celica
1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States
Discontinued model
Data version 1985-01
Rear Seat & Seat Track
31 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

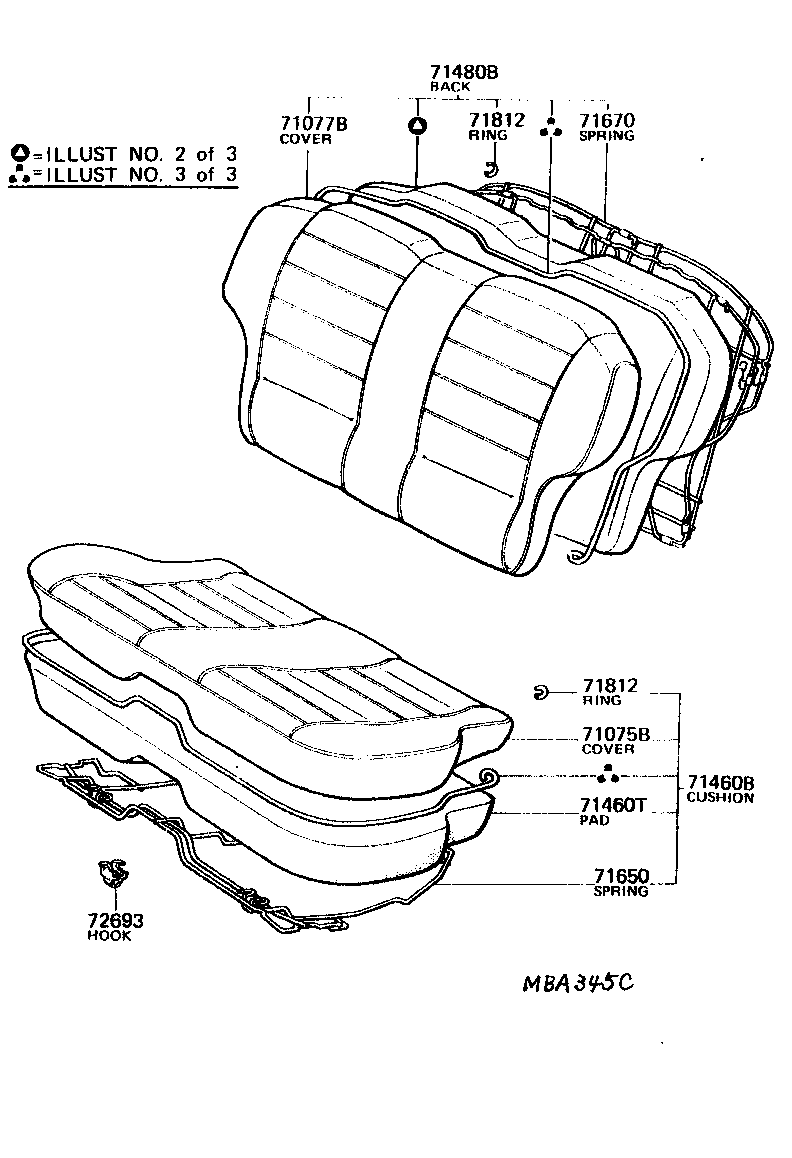

| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |

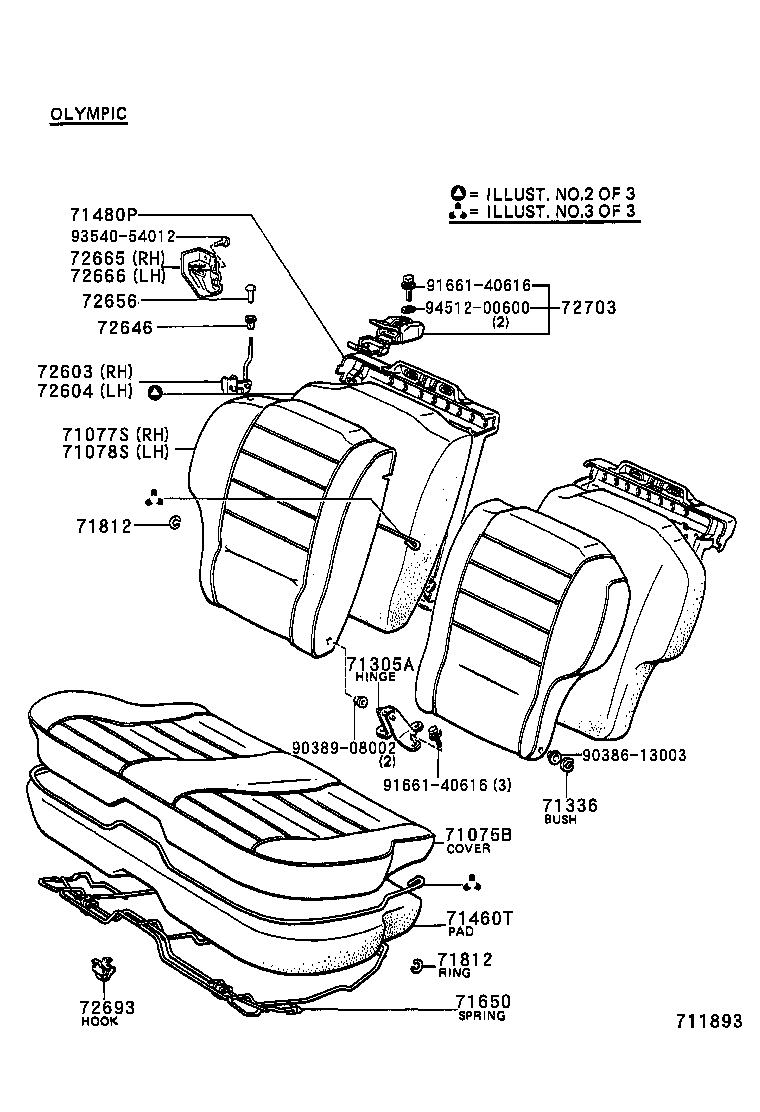

| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71336 | Bush OR Spacer, Rear Seatback Hinge |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71460T | Pad Sub-assy, Rear Seat Cushion, NO.1 |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |

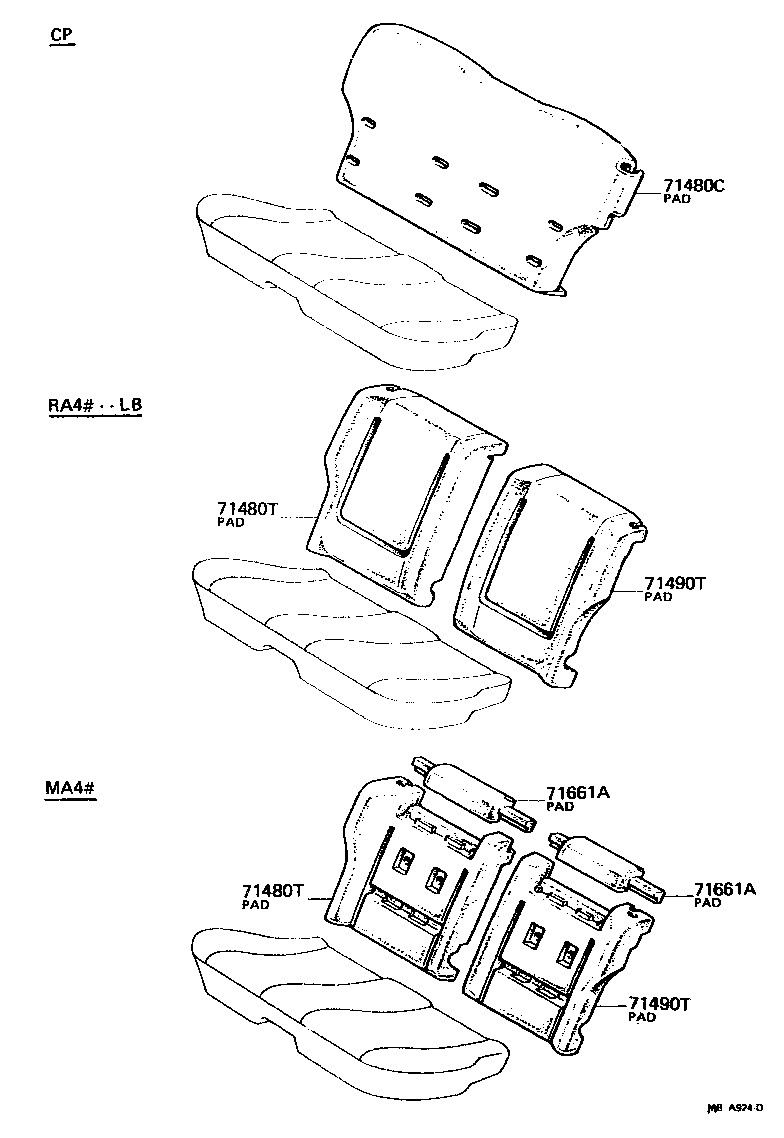

| 71480C | Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE) |
| 71480P | Panel Sub-assy, Rear Seatback |

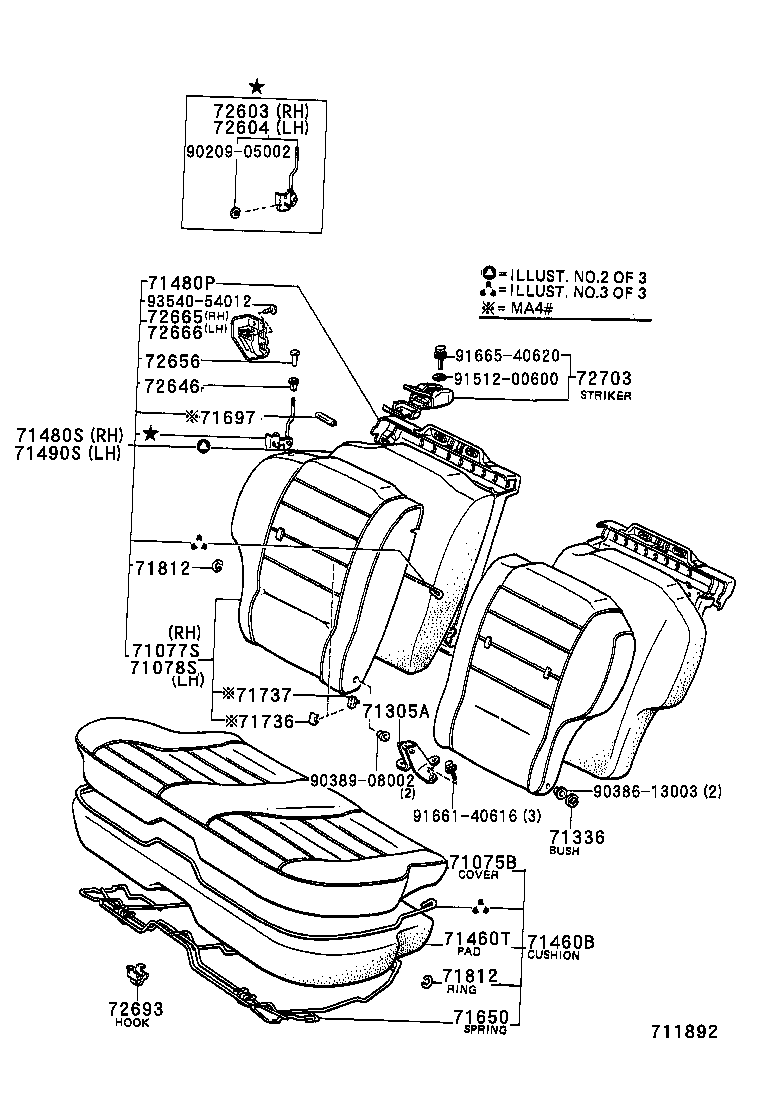

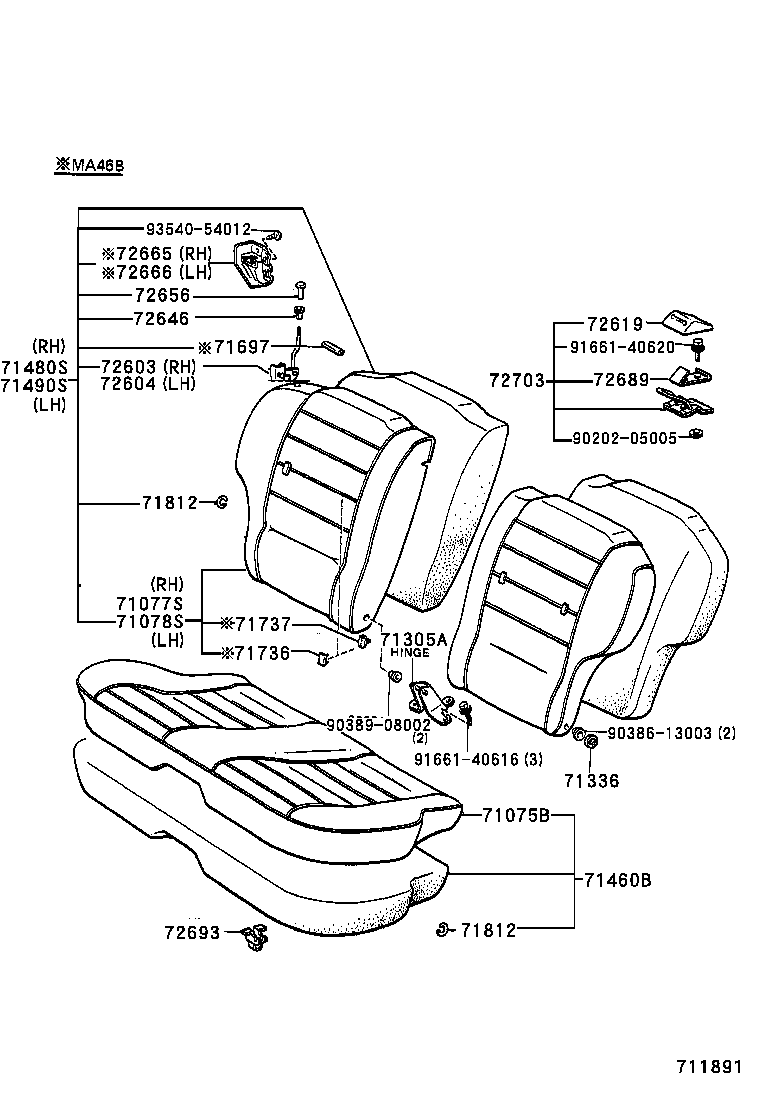

| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71480T | Pad, Rear Seatback, RH (FOR SEPARATE SEAT) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71490T | Pad, Rear Seatback, LH (FOR SEPARATE SEAT) |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71661A | Pad, Rear Seatback, Upper A |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71697 | Protector, Rear Seatback Edge |
| 71736 | Fastener Sub-assy, Seat Cover, A (FOR REAR SEAT) |
| 71737 | Retainer, Seat Cover Fastener, B (FOR REAR SEAT) |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72619 | Cover, Rear Seatback Lock Striker |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72656 | Button, Rear Seatback Stop Release |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72689 | Retainer, Seatback Lock Striker Cover |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72703 | Striker Sub-assy, Rear Seatback Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
