Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 4 illustrations

Illustrations

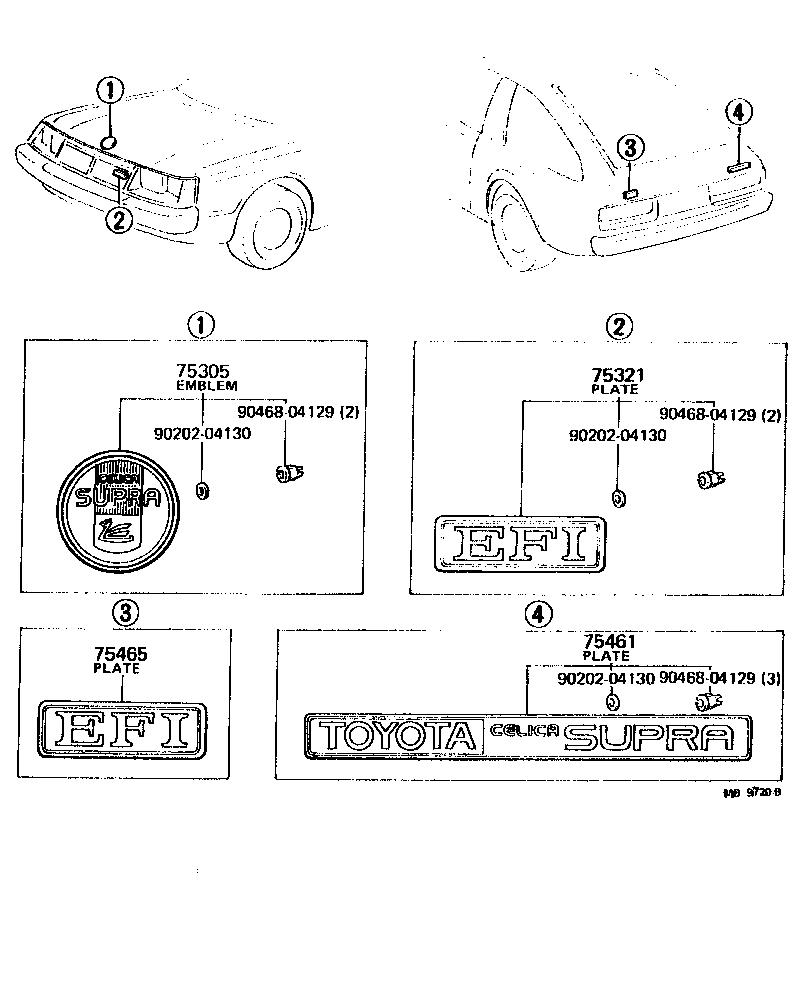

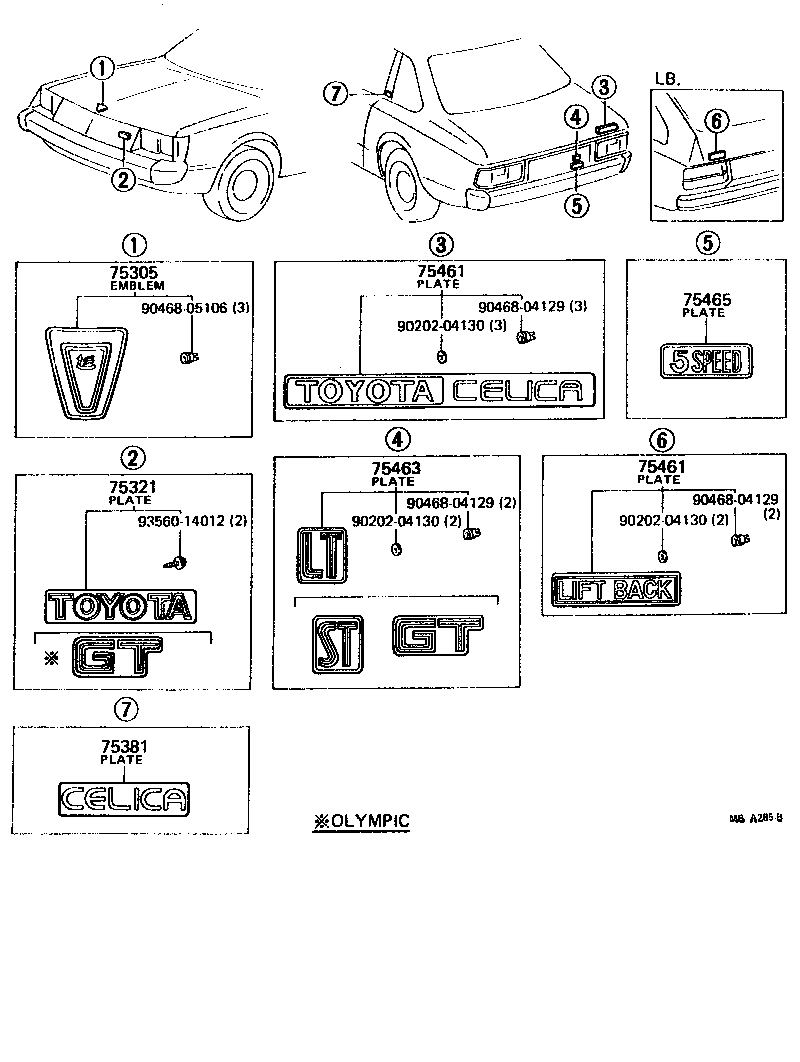

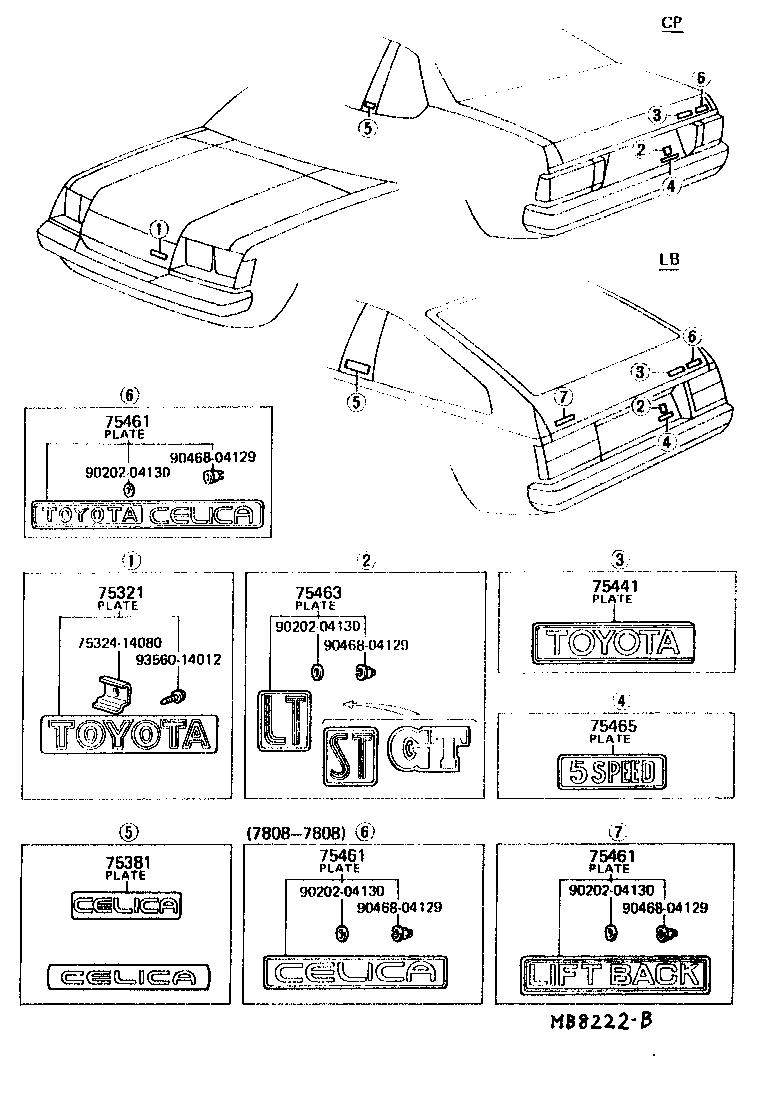

Figure MB7487A MB7487A 1977-08 → 1978-08 Figure MB8222B MB8222B 1978-08 → 1979-08 Figure MBA285B MBA285B 1979-08 → — Figure MB9720B MB9720B 1979-01 → —

Part groups

PNCDescription
75305 Emblem, Hood
75321 Plate, Radiator Grille OR Front Panel Name
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
