Toyota Celica
1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States
Discontinued model
Data version 1985-01
Side Moulding

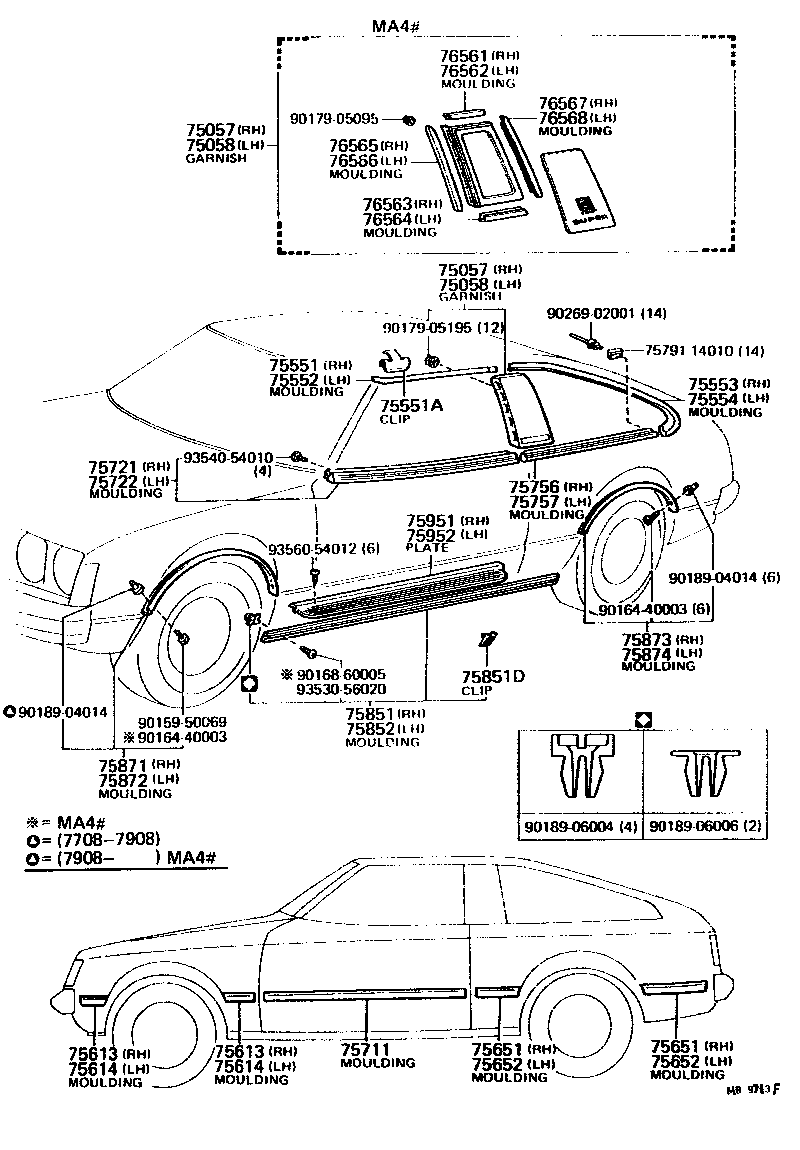

34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75057 | Garnish Sub-assy, Center Pillar, Outer RH |
| 75058 | Garnish Sub-assy, Center Pillar, Outer LH |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75551A | Clip, Roof Drip Moulding, NO.1 |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553 | Moulding, Roof Drip Side Finish, RH |
| 75554 | Moulding, Roof Drip Side Finish, LH |
| 75613 | Moulding, Front Fender, Outside RH |
| 75614 | Moulding, Front Fender, Outside LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75711 | Moulding, Front Door Outside, NO.1 |
| 75721 | Moulding, Front Door Belt, RH |
| 75722 | Moulding, Front Door Belt, LH |
| 75756 | Moulding, Quarter Belt, RH |
| 75757 | Moulding, Quarter Belt, LH |
| 75851 | Moulding, Rocker Panel, RH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75852 | Moulding, Rocker Panel, LH |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 76561 | Moulding, Center Pillar Outer Garnish, Upper RH |
| 76562 | Moulding,Center Pillar Outer Garnish, Upper LH |
| 76563 | Moulding, Center Pillar Outer Garnish, Lower RH |
| 76564 | Moulding, Center Pillar Outer Garnish, Lower LH |
| 76565 | Moulding, Center Pillar Outer Garnish, Front RH |
| 76566 | Moulding, Center Pillar Outer Garnish, Front LH |
| 76567 | Moulding, Center Pillar Outer Garnish, Rear RH |
| 76568 | Moulding, Center Pillar Outer Garnish, Rear LH |
| 76587 | Protector, Center Pillar Outer Gernish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
