Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 2 illustrations

Illustrations

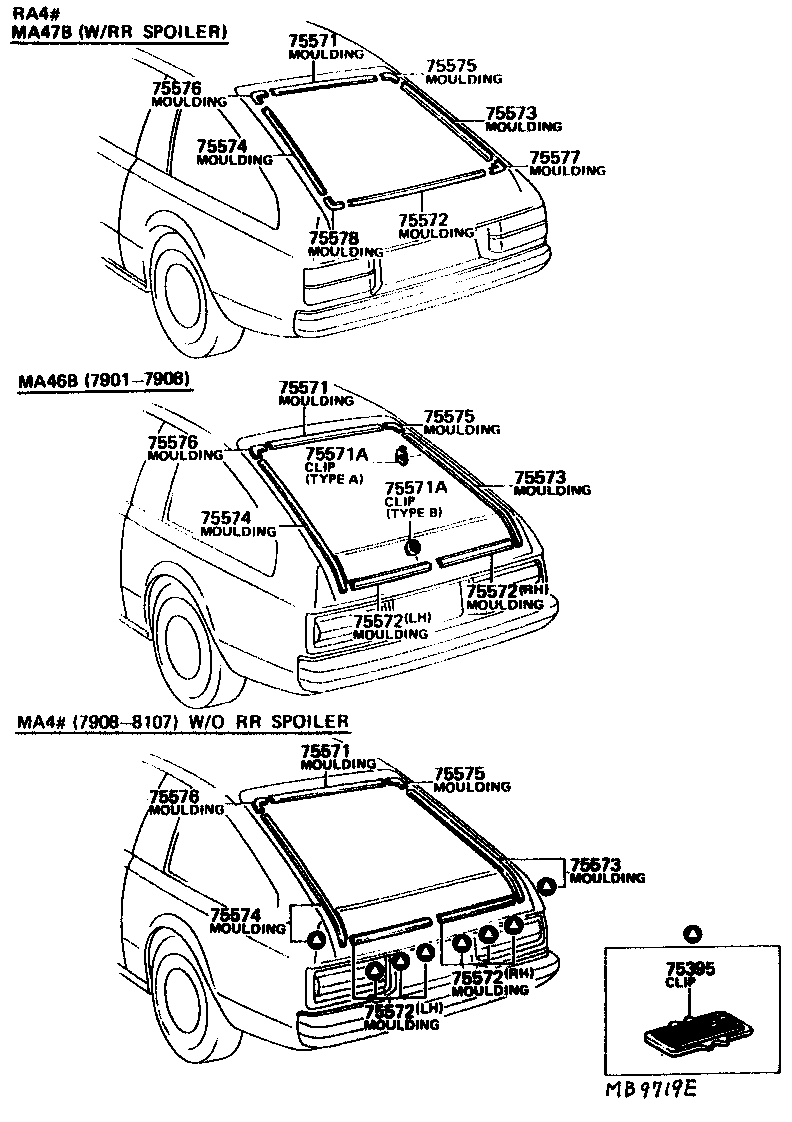

Figure MB7491 MB7491 1977-08 → — Figure MB9719E MB9719E 1977-08 → —

Part groups

PNCDescription
75395 Clip, Back Door Moulding, NO.1
75571 Moulding, Back Window, Outside Upper
75571A Clip(FOR BACK WINDOW MOULDING SET)
75571B Joint, Back Window Moulding, Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
