Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

19 part groups · 2 illustrations

Illustrations

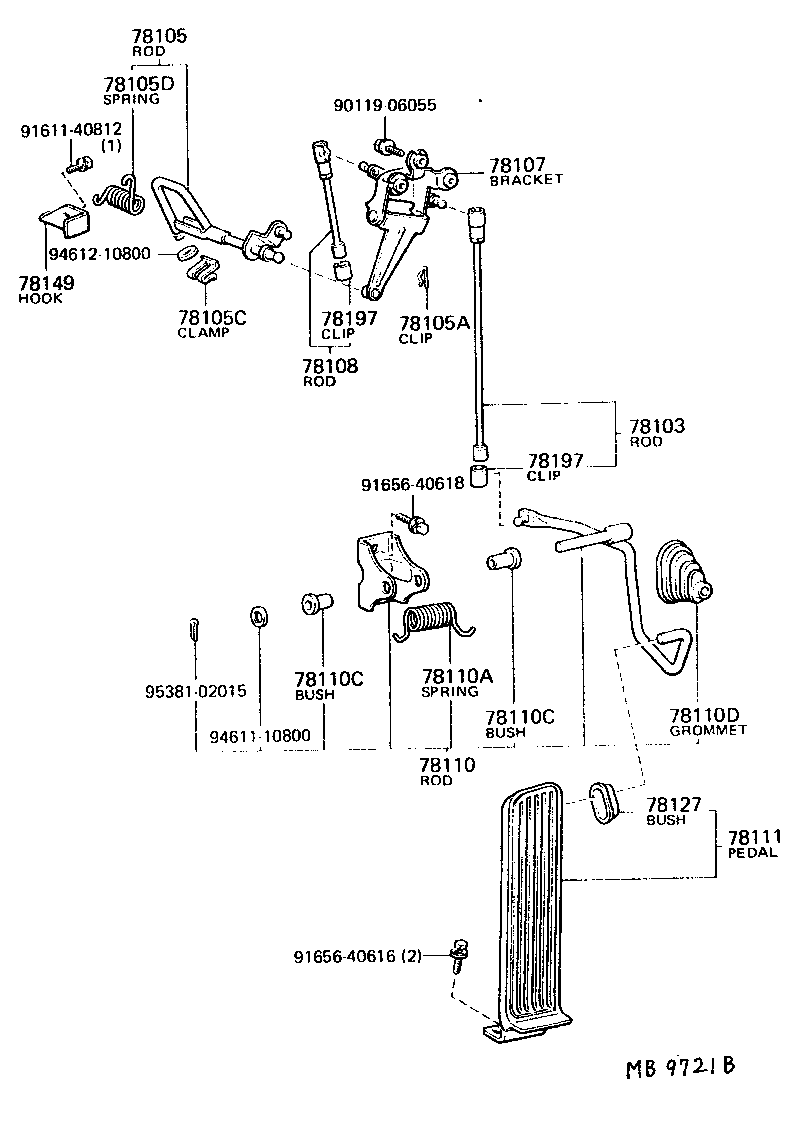

Figure MB7504E MB7504E 1977-08 → — Figure MB9721B MB9721B 1979-01 → —

Part groups

PNCDescription
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105A Clip (FOR ACCELERATOR TORQUE ROD)
78105C Clamp (FOR ACCELERATOR TORQUE ROD)
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78107 Bracket Sub-assy, Accelerator Torque Rod
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78110D Grommet (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78127 Bush, Accelerator Pedal, NO.2
78130 Bellcrank Assy, Accelerator
78149 Hook, Accelerator Torque Rod Spring
78197 Clip, Accelerator Joint Ball
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
