Toyota Celica
1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States
Discontinued model
Data version 1985-01
Wiring & Clamp
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |

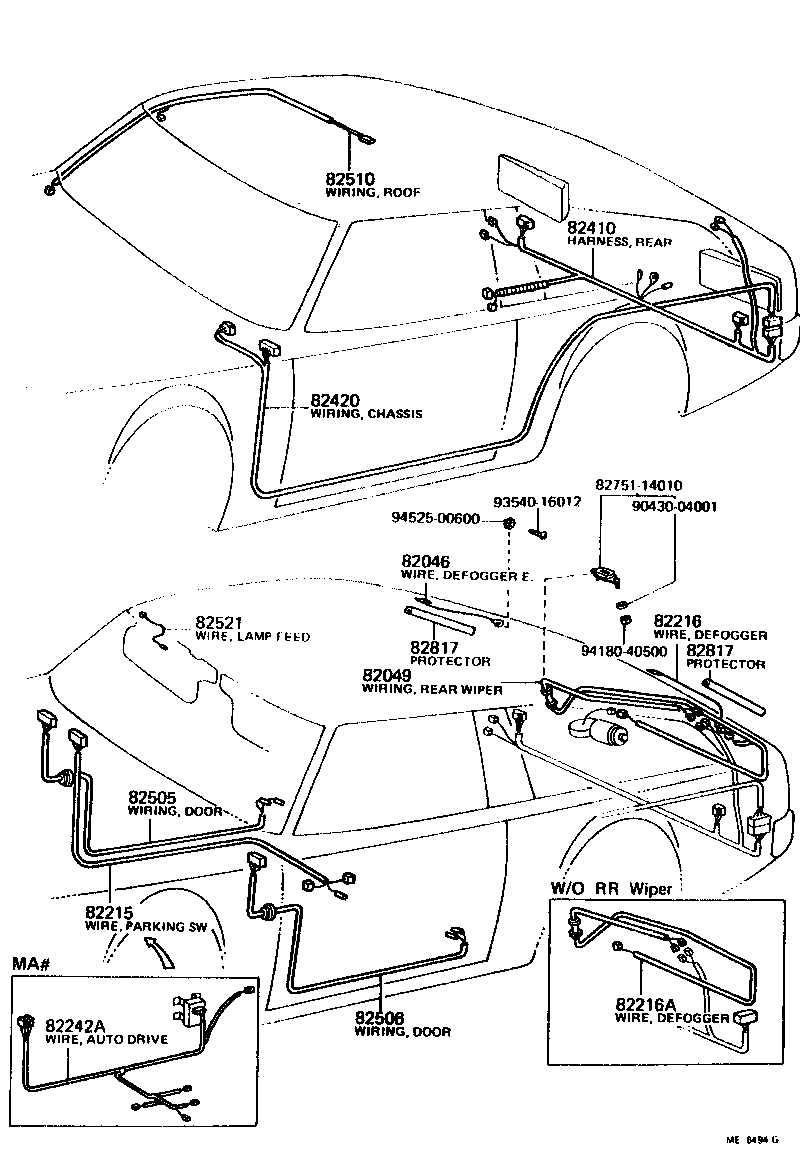

| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82049 | Wiring Sub-assy, Rear Wiper |
| 82203 | Wire Sub-assy, Alternator |

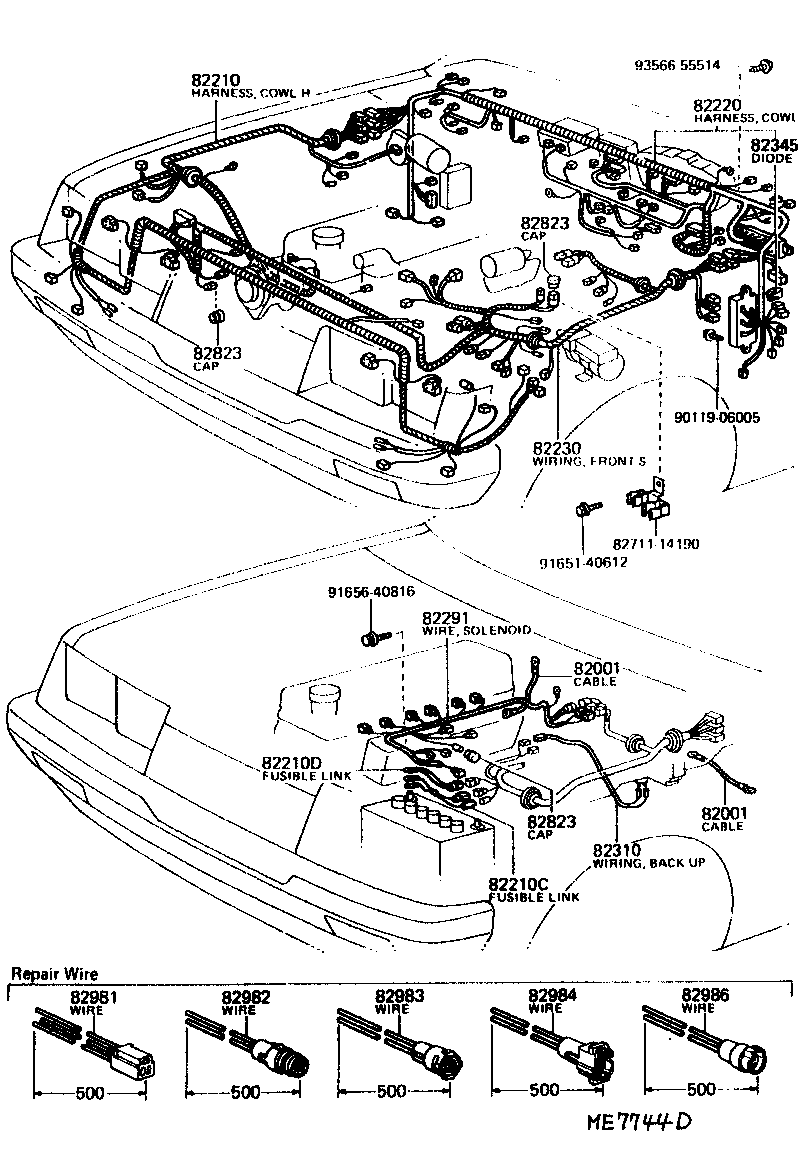

| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82215 | Wire, Parking Brake Lamp Switch |
| 82216 | Wire, Rear Window Defogger |
| 82216A | Wire, Rear Window Defogger |
| 82219 | Wire, Thermo Sensor |
| 82220 | Harness Assy, Wiring Cowl |
| 82230 | Wiring Assy, Front Side |
| 82241C | Wire, Relay |
| 82242A | Wire, Auto Drive |
| 82291 | Wiring, TO Solenoid |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82345 | Diode |

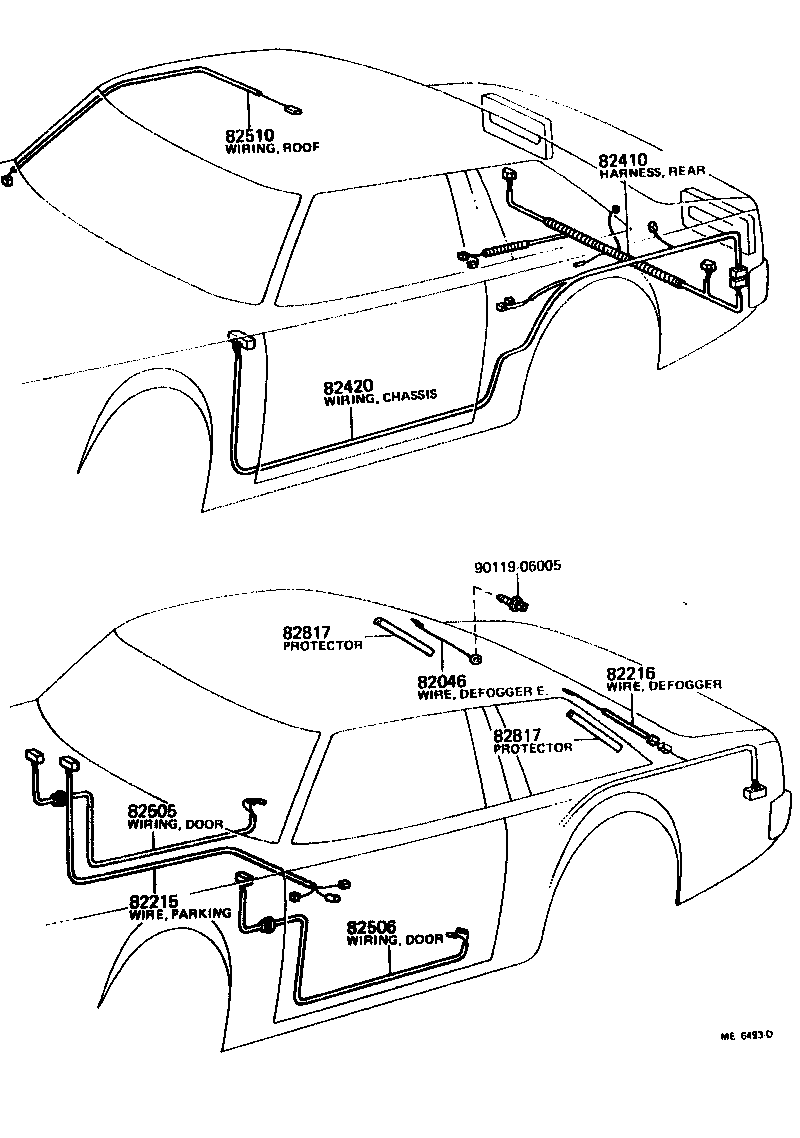

| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82420 | Wiring Assy, Chassis |
| 82505 | Wiring Sub-assy, Front Door, RH |
| 82506 | Wiring Sub-assy, Front Door, LH |
| 82510 | Wiring Assy, Roof |
| 82521 | Wire, Interior Lamp Feed, A |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82823 | Cap, Terminal, NO.1 |
| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82986 | Wire, Side Marker Lamp Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
