Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

7 part groups · 2 illustrations

Illustrations

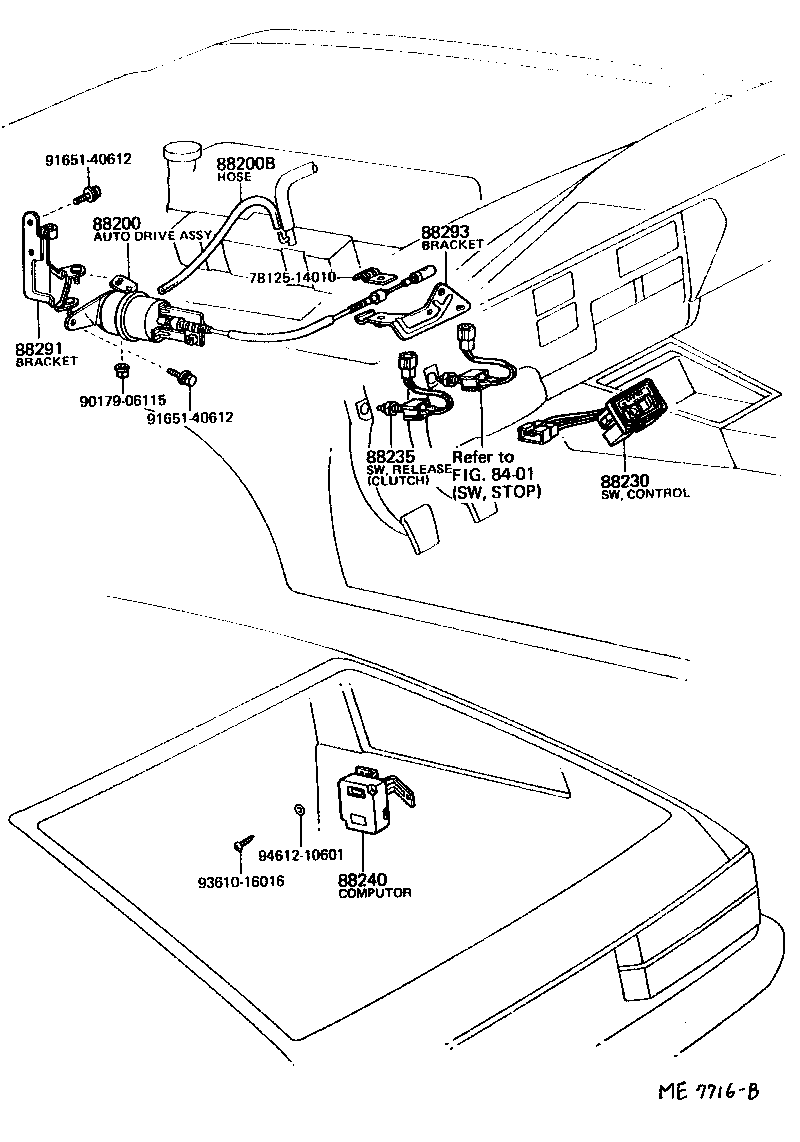

Figure ME8965B ME8965B 1980-08 → — Figure ME7716B ME7716B 1979-01 → —

Part groups

PNCDescription
88200 Cruise Control Assy
88200B Hose, Cruise Control Vacuum
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88293 Bracket, Cruise Control Accelerator Wire Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
