Toyota Celica

1977-08 → 1981-07 · chassis RA4#,MA4# · catalogue 252420 · United States

Discontinued model Data version 1985-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

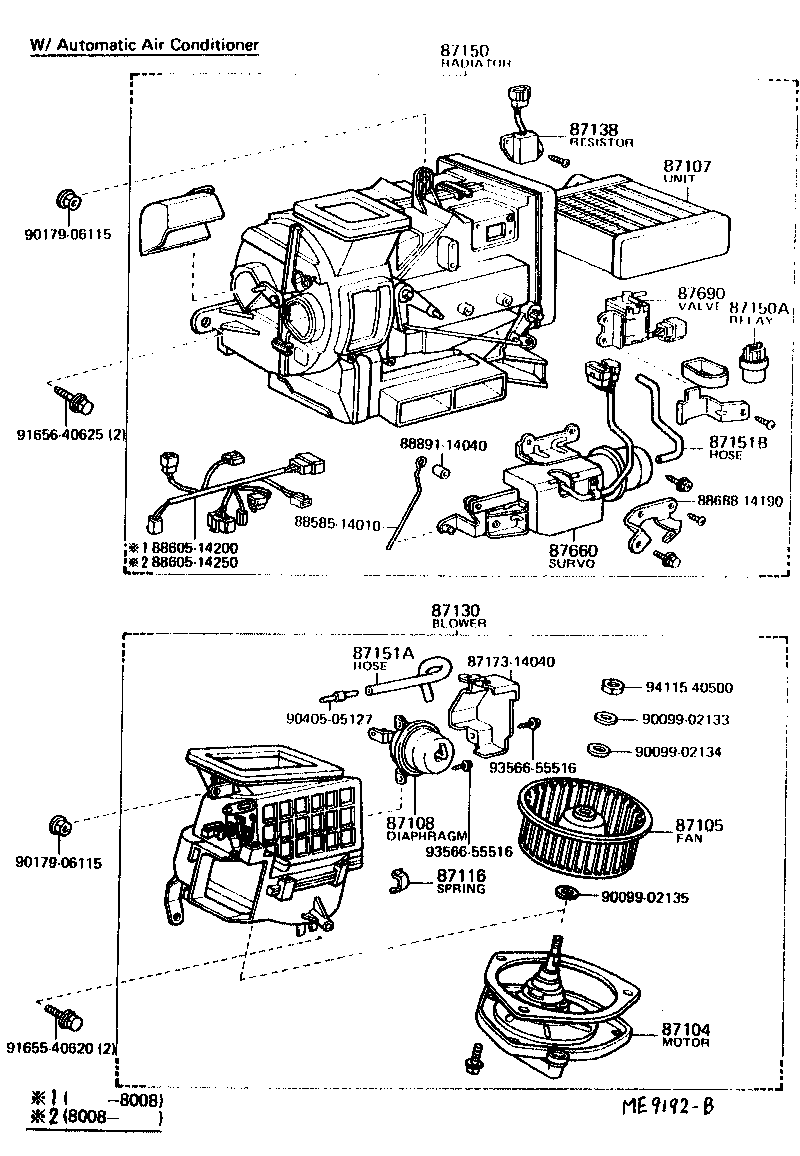

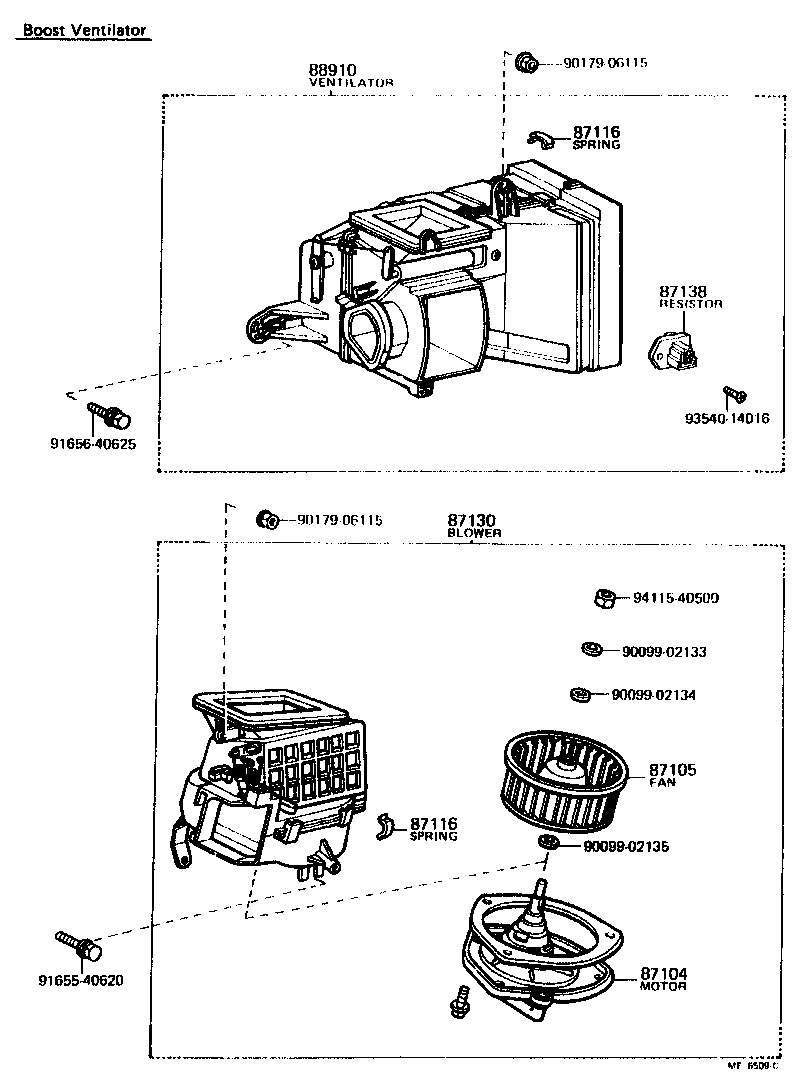

Figure ME6508E ME6508E 1977-08 → — Figure ME9192B ME9192B 1979-08 → — Figure ME6509C ME6509C 1977-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108 Diaphragm Sub-assy, Heater Door Control
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87150A Relay, Heater Radiator
87151A Hose, Vacuum, A
87151B Hose, Vacuum, B
87660 Servo Assy, Air Conditioner
87690 Valve Assy, Magnet
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
