Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

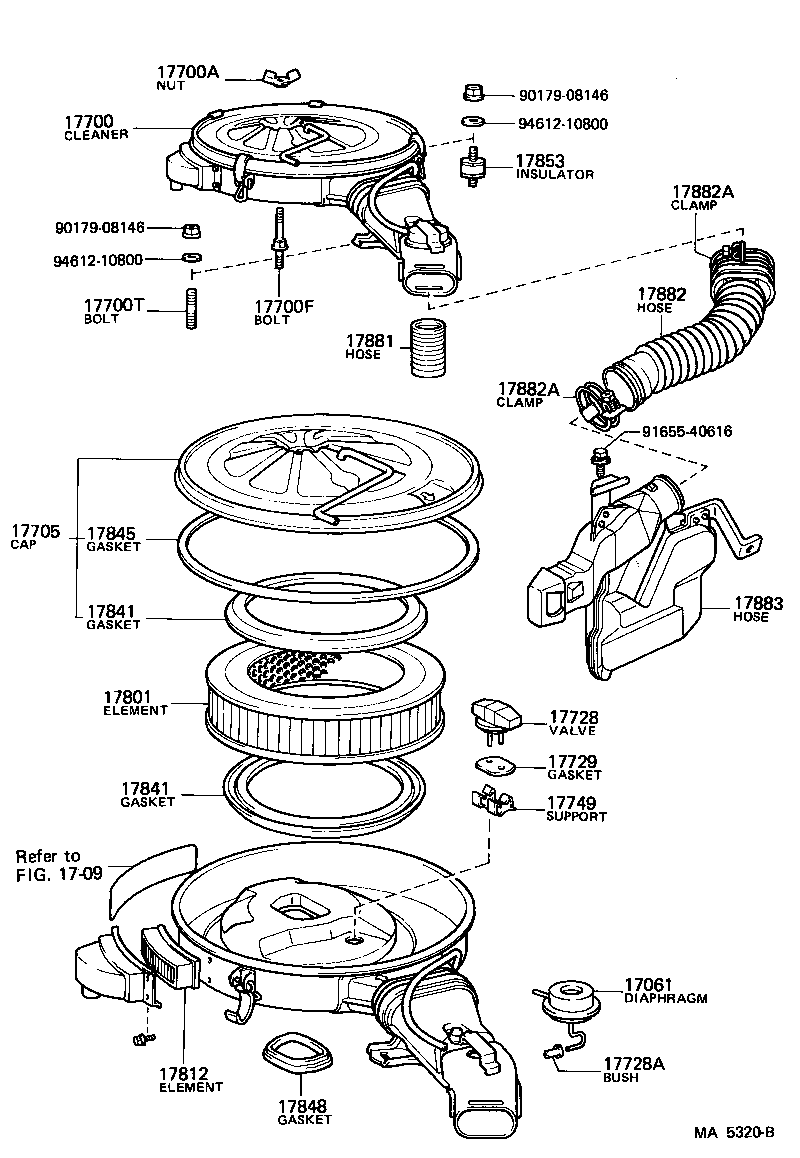

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-37010 |
Diaphragm Sub-assy
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-35080 |
Cleaner Assy, Air
1981-08 → 1982-08
ended
|
22R RA64 5F USA | — | |
| 17700-35081 |
Cleaner Assy, Air
1982-08 → 1983-08
ended
|
22R RA64 | — | |
| 17700-35090 |
Cleaner Assy, Air
1981-08 → 1982-08
ended
|
22R RA64 4FC USA | — | |
| 17700-35100 |
Cleaner Assy, Air
1981-08 → 1982-08
ended
|
22R RA64 CND | — | |
| 17700-35130 |
Cleaner Assy, Air
1982-08 → 1984-08
ended
|
22REC RA6# | — | |
| 17700-35131 |
Cleaner Assy, Air
1984-08 → 1985-07
ended
|
22REC RA6# | — | |
| 17700-43040 |
Cleaner Assy, Air
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17700T — Bolt, Stud(FOR AIR CLEANER) | ||||
| 90116-08033 |
Bolt, Stud(FOR AIR CLEANER)
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-35060 |
Cap Sub-assy, Air Cleaner
1981-08 → 1983-08
ended
|
22R RA64 USA | — | |
| 17705-35070 |
Cap Sub-assy, Air Cleaner
1981-08 → 1982-08
ended
|
22R RA64 CND | — | |
| 17705-35090 |
Cap Sub-assy, Air Cleaner
1982-08 → 1984-08
ended
|
22REC RA6# | — | |
| 17705-35120 |
Cap Sub-assy, Air Cleaner
1984-08 → 1985-07
ended
|
22REC RA6# | — | |
| 17705-43030 |
Cap Sub-assy, Air Cleaner
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24010 |
Valve, Thermostatic
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17728A — Bush | ||||
| 90386-03001 |
Bush
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17729 — Gasket, Thermostat Valve | ||||
| 17729-34010 |
Gasket, Thermostat Valve
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17749 — Support, Thermostat Valve | ||||
| 17749-34010 |
Support, Thermostat Valve
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17801-41110 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1985-12
ended
|
22REC RA6# | — | |
| 17801-41110 |
Element Sub-assy, Air Cleaner Filter
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17812 — Filter, Air Cleaner, NO.2 | ||||
| 17812-37010 |
Filter, Air Cleaner, NO.2
1981-08 → 1982-08
ended
|
22R RA64 CND | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-41050 |
Gasket, Filter Element
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-35010 |
Gasket, Air Cleaner Cap
1981-08 → 1982-10
ended
|
22R RA64 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1983-08
ended
|
22R RA64 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-35010 |
Gasket, Air Cleaner TO Carburetor
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17853 — Insulator, Air Cleaner Bracket | ||||
| 17853-38010 |
Insulator, Air Cleaner Bracket
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-35010 |
Hose, Air Cleaner, NO.1
1982-08 → 1985-07
ended
|
22REC RA6# | — | |
| 17881-37030 |
Hose, Air Cleaner, NO.1
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17881-43021 |
Hose, Air Cleaner, NO.1
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17881-14010 |
Hose, Air Cleaner, NO.2
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17882-35020 |
Hose, Air Cleaner, NO.2
1984-08 → 1985-07
ended
|
22REC RA6# | — | |
| 17882-43030 |
Hose, Air Cleaner, NO.2
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01025 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 17883-14010 |
Hose, Air Cleaner, NO.3
1981-08 → 1983-08
ended
|
22R RA64 | — | |
| 17883-43010 |
Hose, Air Cleaner, NO.3
1981-08 → 1985-12
ended
|
5MGE MA61 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
