Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

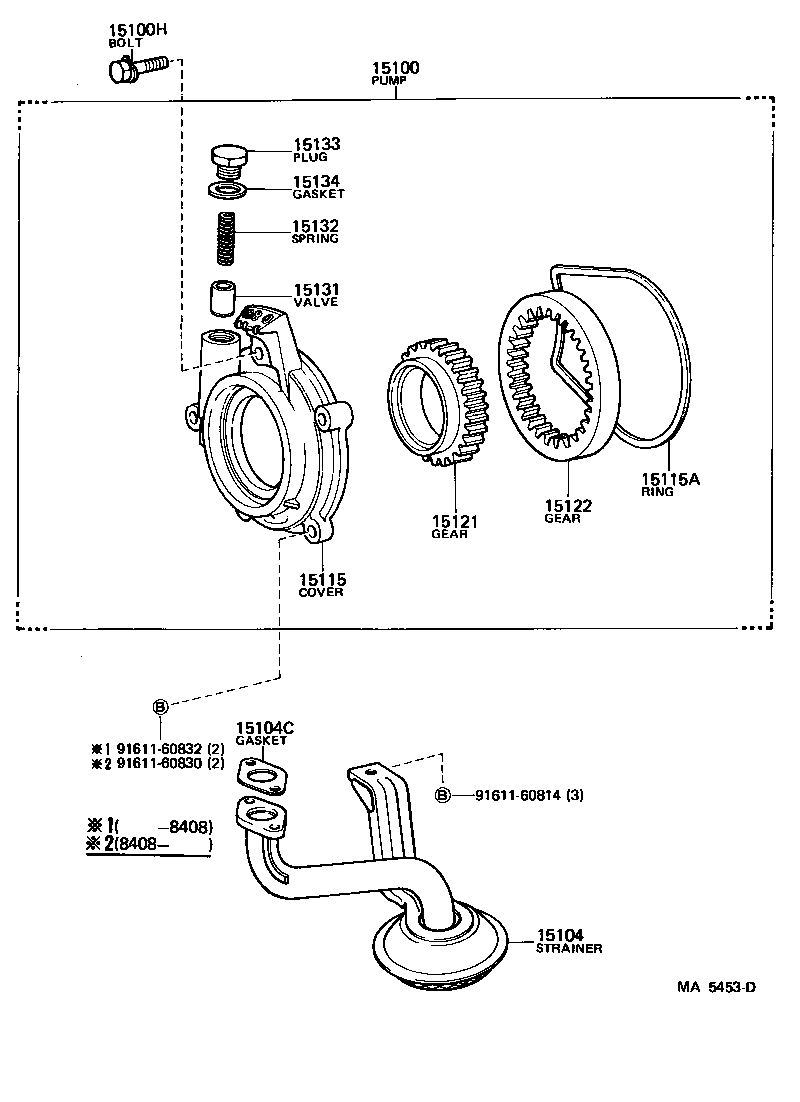

Engine Oil Pump
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15100H | Bolt, Seal |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15115A | Ring, O(FOR OIL PUMP COVER) |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15163 | Gear, Oil Pump Drive Shaft |
| 15163B | Key, Woodruff(FOR OIL PUMP DRIVE SHAFT GEAR) |
| 15186 | Spacer(FOR OIL PUMP DRIVE SHAFT GEAR) |
| 15186A | Ring, Shaft Snap(FOR OIL PUMP DRIVE SHAFT GEAR) |
| 15413 | Pipe, Oil Pump Outlet |
| 15413A | Union(FOR OIL PUMP OUTLET PIPE) |
| 15413B | Sleeve, Ball(FOR OIL PUMP OUTLET PIPE) |
| 15413C | Nut, Union(FOR OIL PUMP OUTLET PIPE) |
| 15413D | Gasket(FOR OIL PUMP OUTLET PIPE) |
| 15413E | Washer, Lock(FOR OIL PUMP OUTLET PIPE) |
| 15413F | Bolt, Union(FOR OIL PUMP OUTLET PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
