Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

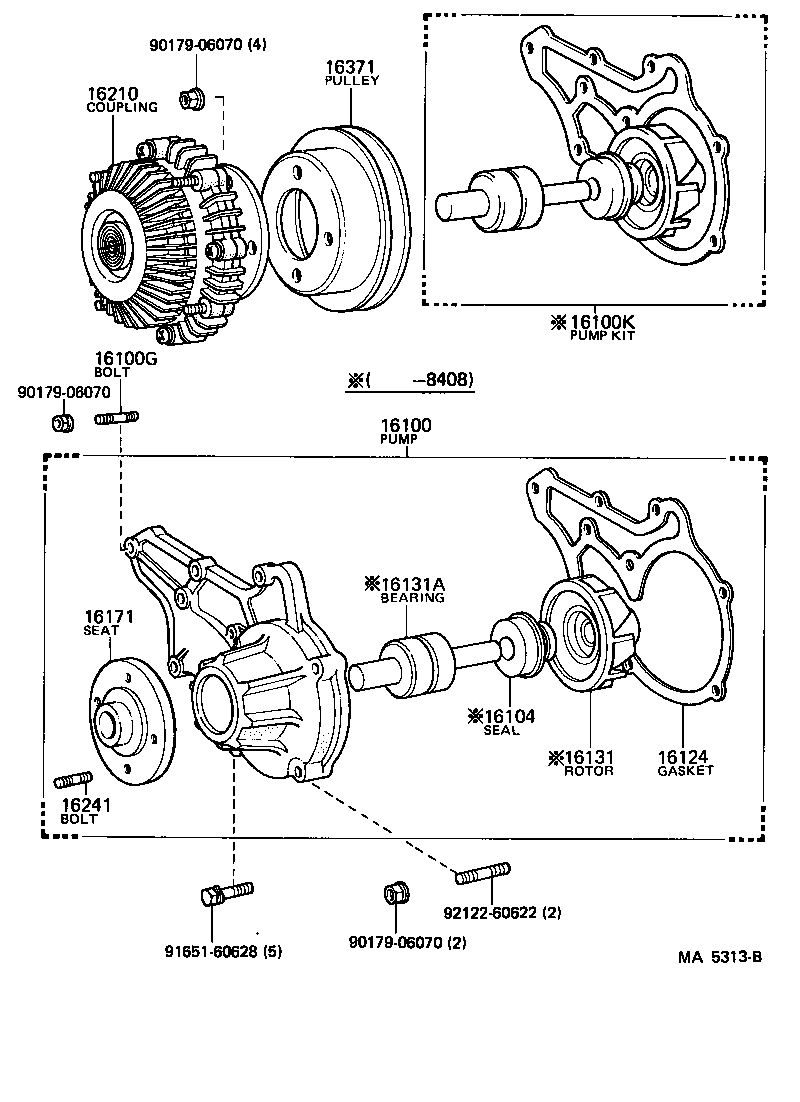

Water Pump
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16100K | Pump Kit, Water |
| 16104 | Seal Set, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16178 | Guide, Water Pump V Belt |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
