Toyota Celica
1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States
Discontinued model
Data version 1985-12

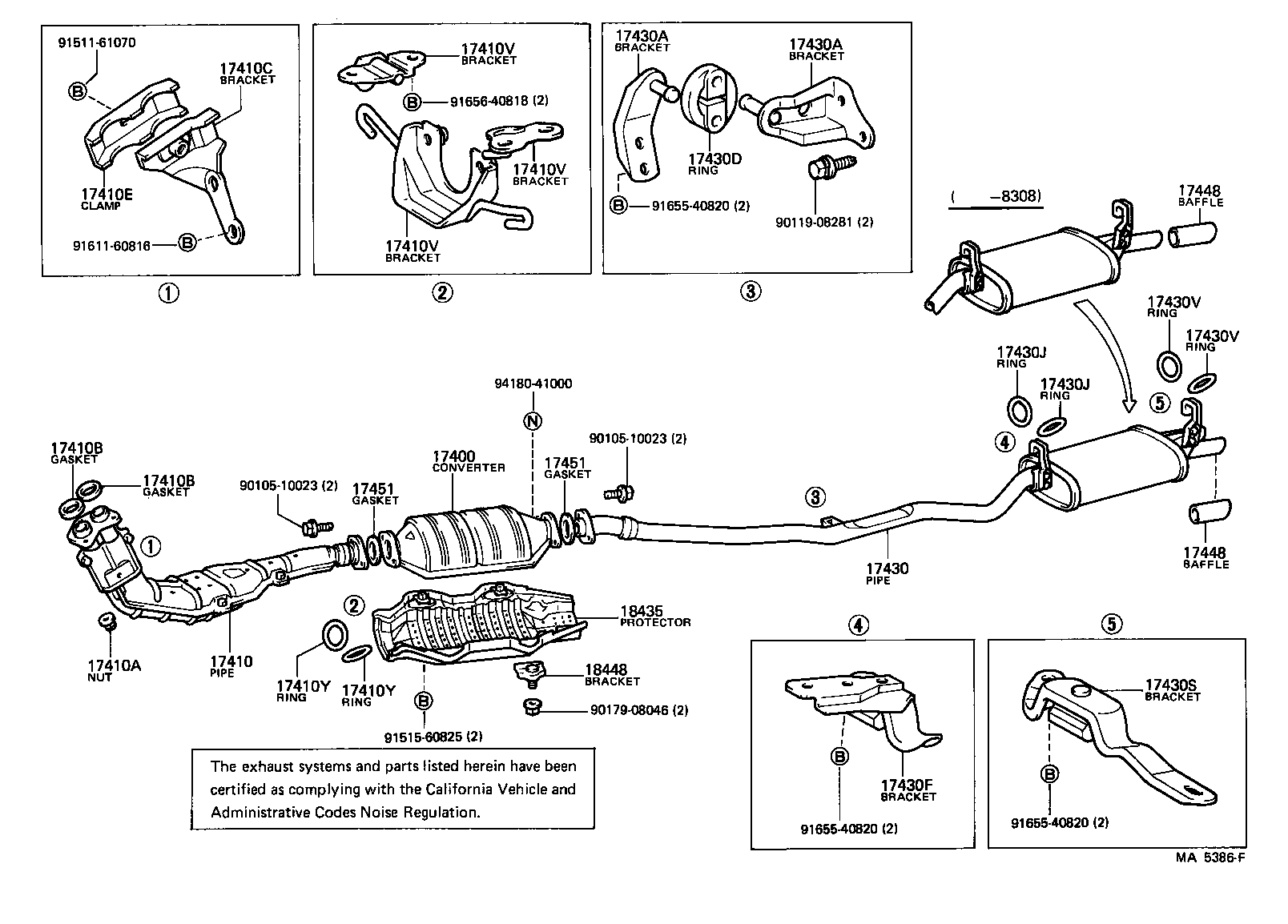

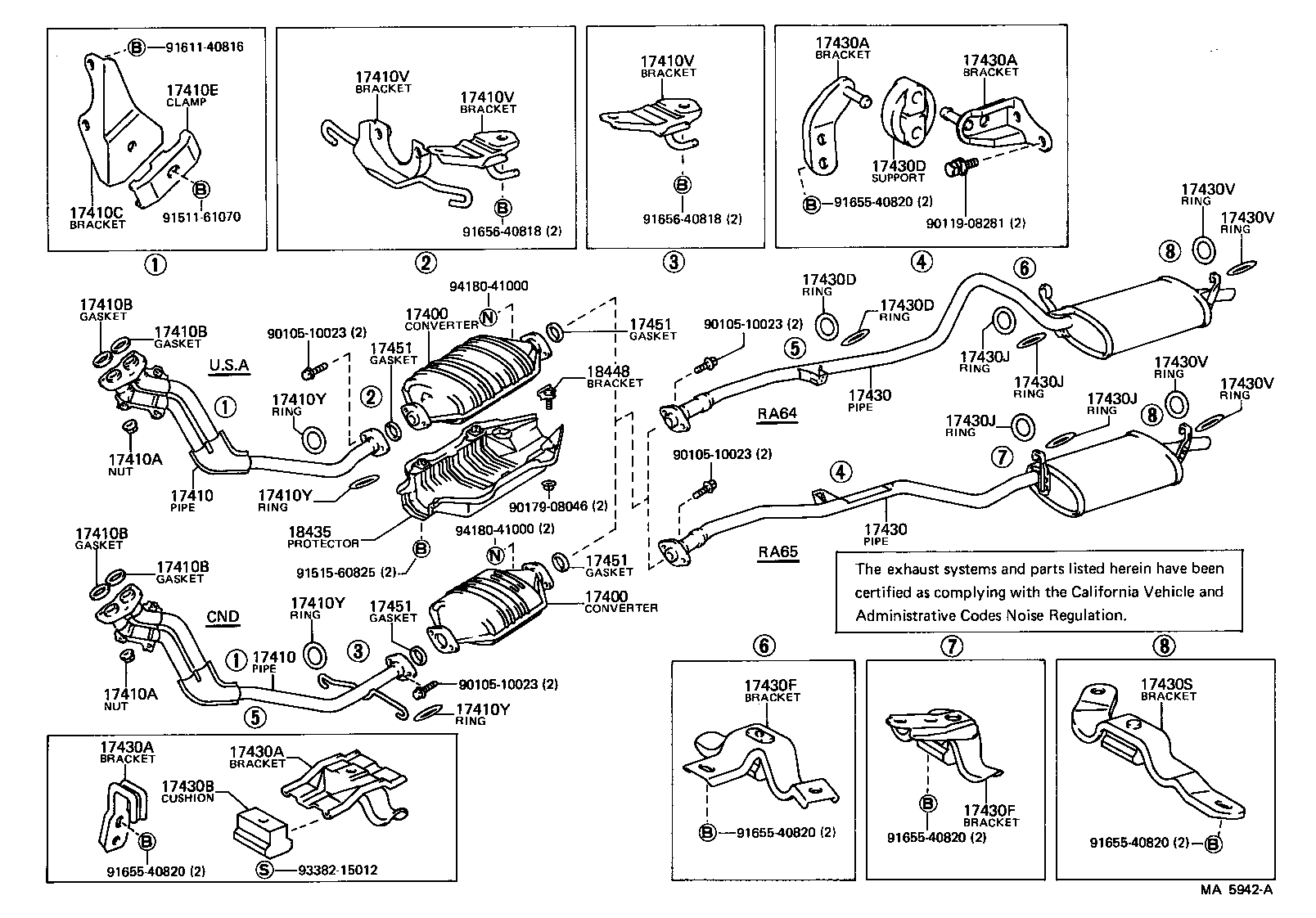

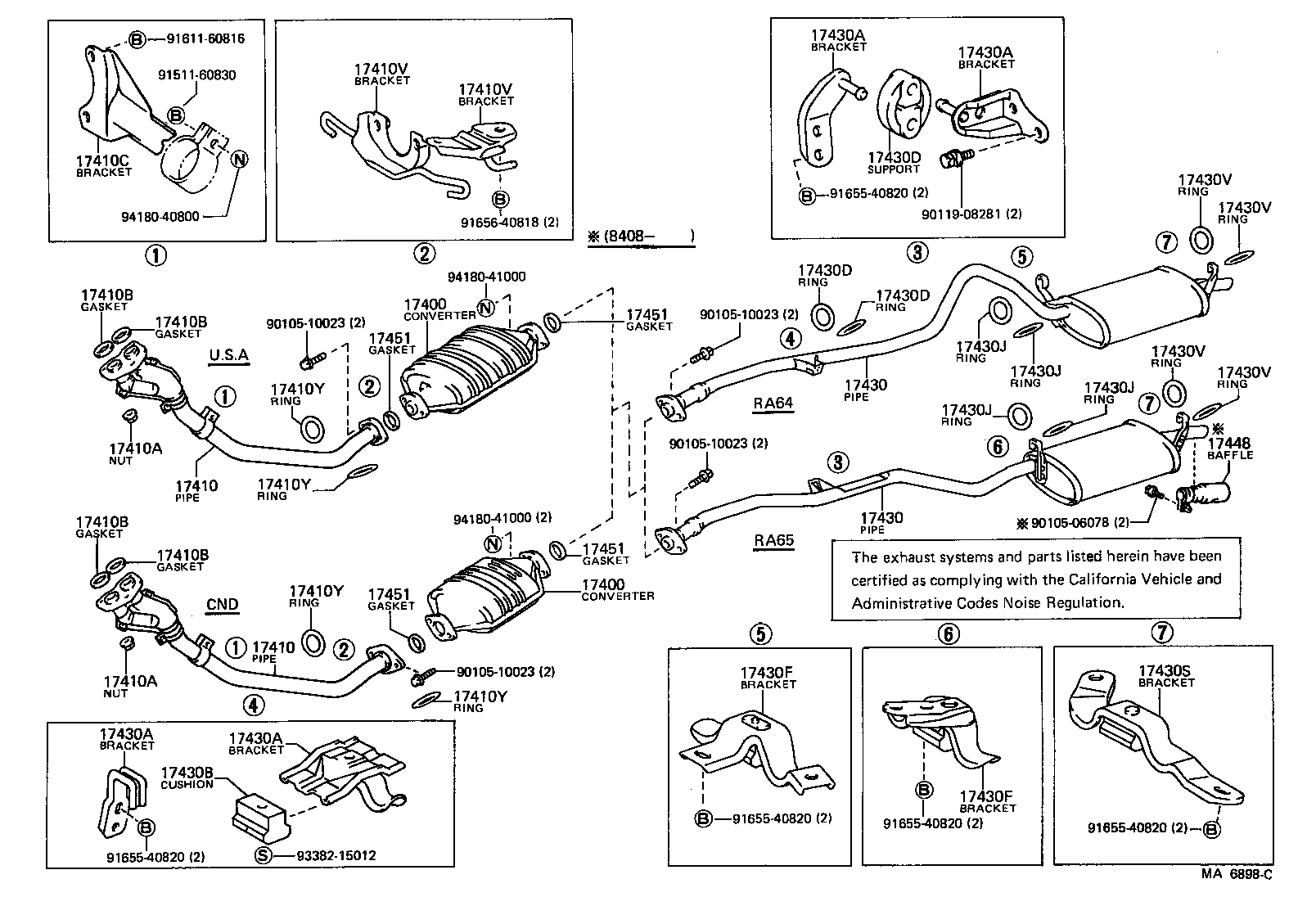

Exhaust Pipe
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400A | Flange, Thermosenser Inlet |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430A | Bracket, Exhaust Tailpipe(FOR FRONT) |
| 17430B | Cushion, Exhaust Tailpipe(FOR FRONT) |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430J | Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
