Toyota Celica

1981-08 → 1985-12 · chassis RA6#,MA61 · catalogue 252430 · United States

Discontinued model Data version 1985-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

21 part groups · 3 illustrations

Illustrations

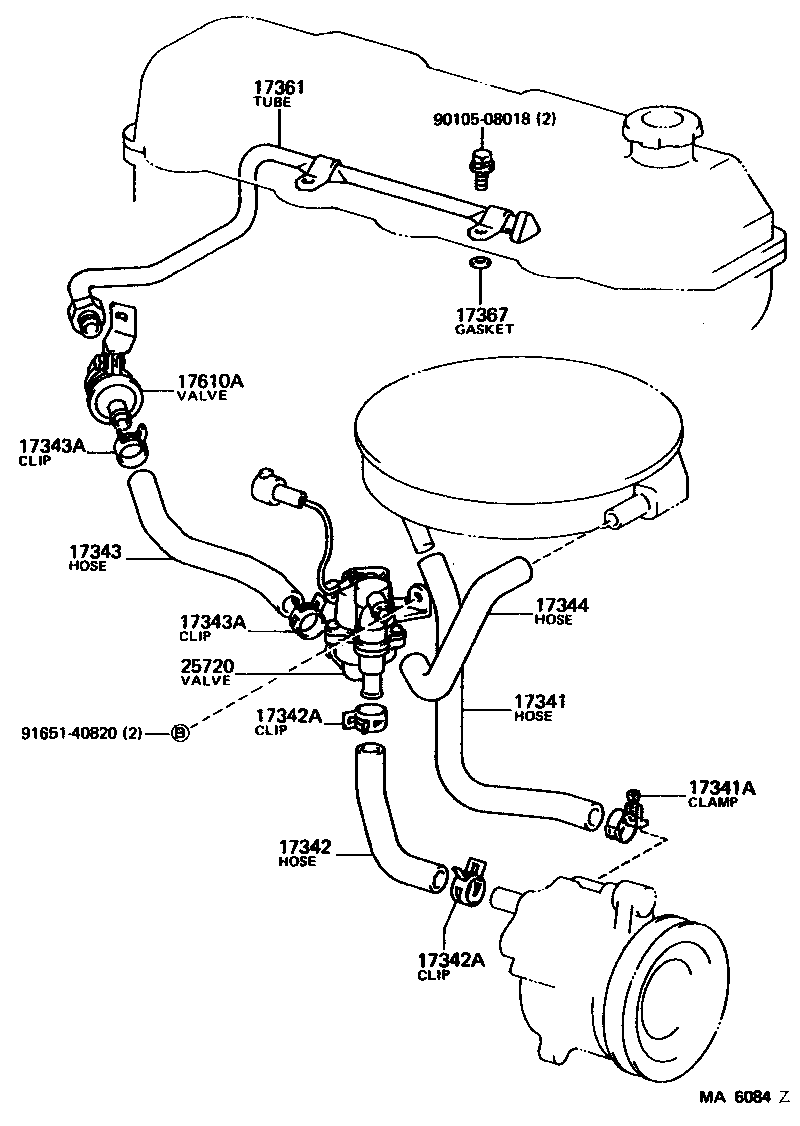

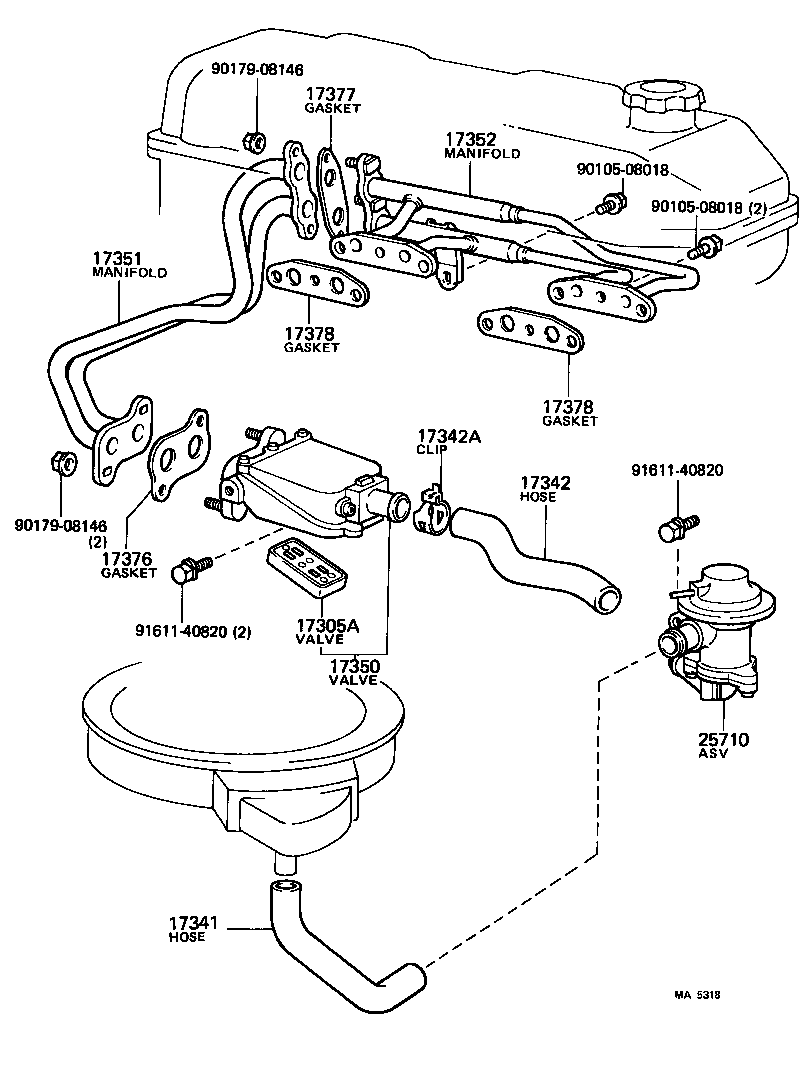

Figure MA5317 MA5317 1981-08 → 1982-08 Figure MA6084Z MA6084Z 1982-08 → 1983-08 Figure MA5318 MA5318 1981-08 → 1982-08

Part groups

PNCDescription
17305A Valve Sub-assy, Reed
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17361 Tube, Air
17367 Gasket, Air Tube
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17378 Gasket Air Tube, NO.3
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
25710 Valve Assy, Air Switching
25716 Bracket, Air Switching Valve
25720 Valve Assy, Electric Air Control
25740 Valve Assy, Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
